Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LT
-
Model Number:
-
Type A
-
Certification:
-
ce
Quick Details
-
After-sales Service Provided:
-
Overseas Call Centers
-
Warranty:
-
1 Year
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LT
-
Model Number:
-
Type A
-
Certification:
-
ce

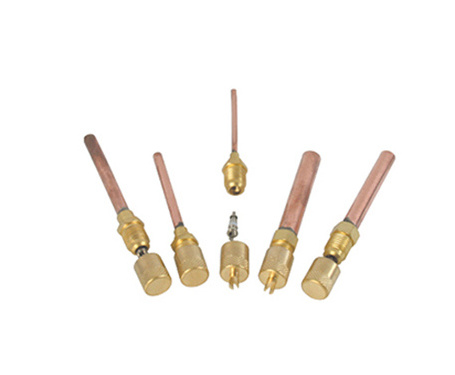

The charging valve is an one-way service valve with valve inside,which is used on the freezer,cold store and air conditioning unit
.
|
Applicable Refrigerant |
HCFC and HFC |
|
Applicable Medium Temperature |
-25°C ~ +120°C |
|
Max. Operating Pressure |
3.0 MPa |
|
Msx.Allowable pressure |
4.5MPa |
Features
l Equipped with imported valve inside of reliable performance.
l Double sealing ensure leak-tight.
l Copper tube of various lengths and hardness are available.
l Valve bonnet is knurled for easy handing.
|
Type |
Connection |
Size |
Overall Dimension |
||||||
|
A |
B |
Φ D |
H |
L |
Hexagonal S |
Thread M |
|||
|
Type A |
1/4 SAE |
1/8 |
60 |
14 |
3.17 |
--- |
94 |
11 |
7/16-20UNF |
|
3/16 |
4.76 |
||||||||
|
1/4 |
90 |
6.35 |
124 |
||||||
A=length,which can be produced according to customers' requirement
