- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hezhi
-
Voltage:
-
220V/ 380V
-
Weight (KG):
-
190 KG
-
Power (kW):
-
2.2
-
Applicable Industries:
-
Woodworking Furniture Manufacture
-
Product name:
-
Woodworking combined saw, planer, thicknesser
-
Color:
-
Customer Actual Requirements
-
Cutting material:
-
Nature Wood
-
Motor:
-
2.2KW
-
Advantage:
-
High Effeciency
-
Service:
-
1 Year Guarantee
-
Machine:
-
Multi Functional Combination
Quick Details
-
Max.Planing Depth(mm):
-
3 mm
-
Max.Planing Width(mm):
-
310
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hezhi
-
Voltage:
-
220V/ 380V
-
Weight (KG):
-
190 KG
-
Power (kW):
-
2.2
-
Applicable Industries:
-
Woodworking Furniture Manufacture
-
Product name:
-
Woodworking combined saw, planer, thicknesser
-
Color:
-
Customer Actual Requirements
-
Cutting material:
-
Nature Wood
-
Motor:
-
2.2KW
-
Advantage:
-
High Effeciency
-
Service:
-
1 Year Guarantee
-
Machine:
-
Multi Functional Combination

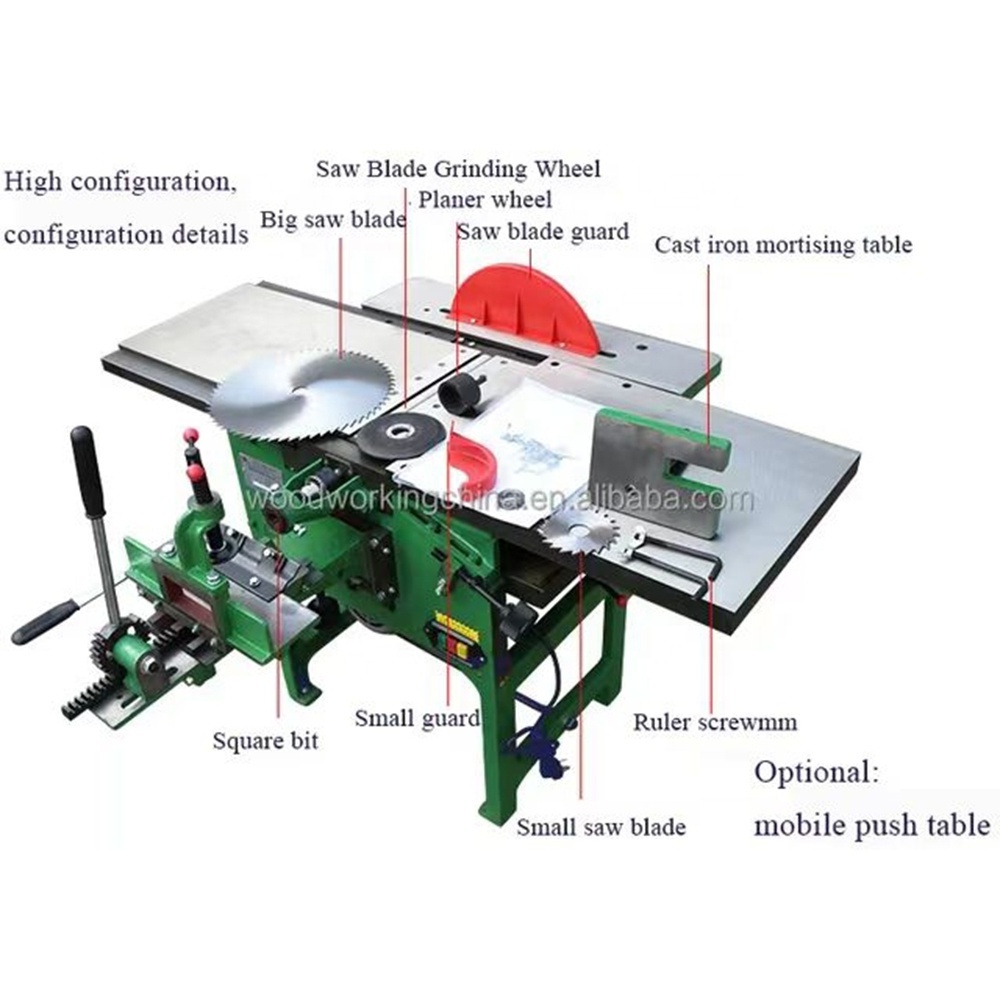

Feature of Woodworking combined saw, planer, thicknesser
1. Sharpening, Drilling round hole, tenon making, Planing, cutting mouth, cutting mouth chamfering, Grinding saw blade, sawing, Chop spring, kinds of woodworking combinated.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.
|
Product name
|
10 in 1 combination multi wood planer
|
|
|
|
Model
|
ML392
|
ML393
|
|
|
Max. Planing width
|
260mm
|
310mm
|
|
|
Max. Planing thickness
|
3mm
|
|
|
|
Press planing thickness range
|
6~120mm
|
|
|
|
Max. Sawing thickness
|
80mm
|
120mm
|
|
|
Cutting mouth depth
|
10mm
|
|
|
|
Max. Mortise size
|
16*16mm
|
|
|
|
Max. Mortise depth
|
120mm
|
|
|
|
planer shaft diameter
|
78mm
|
|
|
|
Thicknesser feeding speed
|
6.5m/min
|
|
|
|
Circular saw blade diameter
|
250mm(10inch)
|
300mm(12inch)
|
|
|
Type
|
Turbine pole single screw
|
Turbine pole single screw / Turbine pole double screw
|
|
|
Spindle speed
|
4200r/min
|
|
|
|
Motor power
|
2.2kw, 220V/380V, 50Hz
|
|
|
|
Dimension
|
1000*900*800mm
|
1200*900*800mm
|
|
|
Weight
|
160kg
|
190kg
|
|
|
Function
|
Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop
|
|
|
|
|
spring, grooving, cutting mouth, tenoning
|
|
|
|
Optional
|
Mobile pushing table, blade cover,backing ruler, we give 1 piece 10inch saw blade,for extra you need purchase.
|
|
|
|
Product name
|
4 in 1 combination multi wood planer
|
|
|
|
|||
|
Spindle speed
|
3560r/min
|
|
|
|
|||
|
Max.planing width
|
300mm
|
|
|
|
|||
|
Max.planing thickness
|
3mm
|
|
|
|
|||
|
Max.sawing thickness
|
100mm
|
|
|
|
|||
|
Max.pressure plane width
|
300mm
|
|
|
|
|||
|
Max.planing thickness
|
120mm
|
|
|
|
|||
|
Mortising range
|
10-16mm
|
|
|
|
|||
|
Max.mortise depth
|
120mm
|
|
|
|
|||
|
Motor power
|
2.2kw/380v
|
|
|
|
|||
|
Overall dimensions
|
1000*1150*810mm
|
|
|
|
|||
Fully automatic wood planer is widely used in sheet metal, furniture, construction, automobile, shipbuilding, DIY, decoration and other industries, with a wide range of social and economic benefits. machine with the most illustrative design, achieve the best use effect, the complexity of the program is your most economical choice.
