Quick Details
-
Encoding Format:
-
H.265 H.264 HEVC MPGE2 MPGE4WMV FLC AVS AVS+
-
Input:
-
IP/ASI/4K 12G/4*3GSDI/SDI/HD-SDI/HD-MI/AV
-
Output:
-
IP/SDI/ASI
-
Protocol:
-
HLS (M3U8), UDP, HTTP, RTMP, SRT
-
Multiple Resolutions:
-
auto-recognition resolution
-
Application:
-
DVB, IPTV and OTT TV
-
Management:
-
Web-server
-
Dual Power Supply:
-
AC 110V~220V 50/60Hz
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK9000
-
Encoding Format:
-
H.265 H.264 HEVC MPGE2 MPGE4WMV FLC AVS AVS+
-
Input:
-
IP/ASI/4K 12G/4*3GSDI/SDI/HD-SDI/HD-MI/AV
-
Output:
-
IP/SDI/ASI
-
Protocol:
-
HLS (M3U8), UDP, HTTP, RTMP, SRT
-
Multiple Resolutions:
-
auto-recognition resolution
-
Application:
-
DVB, IPTV and OTT TV
-
Management:
-
Web-server
-
Dual Power Supply:
-
AC 110V~220V 50/60Hz

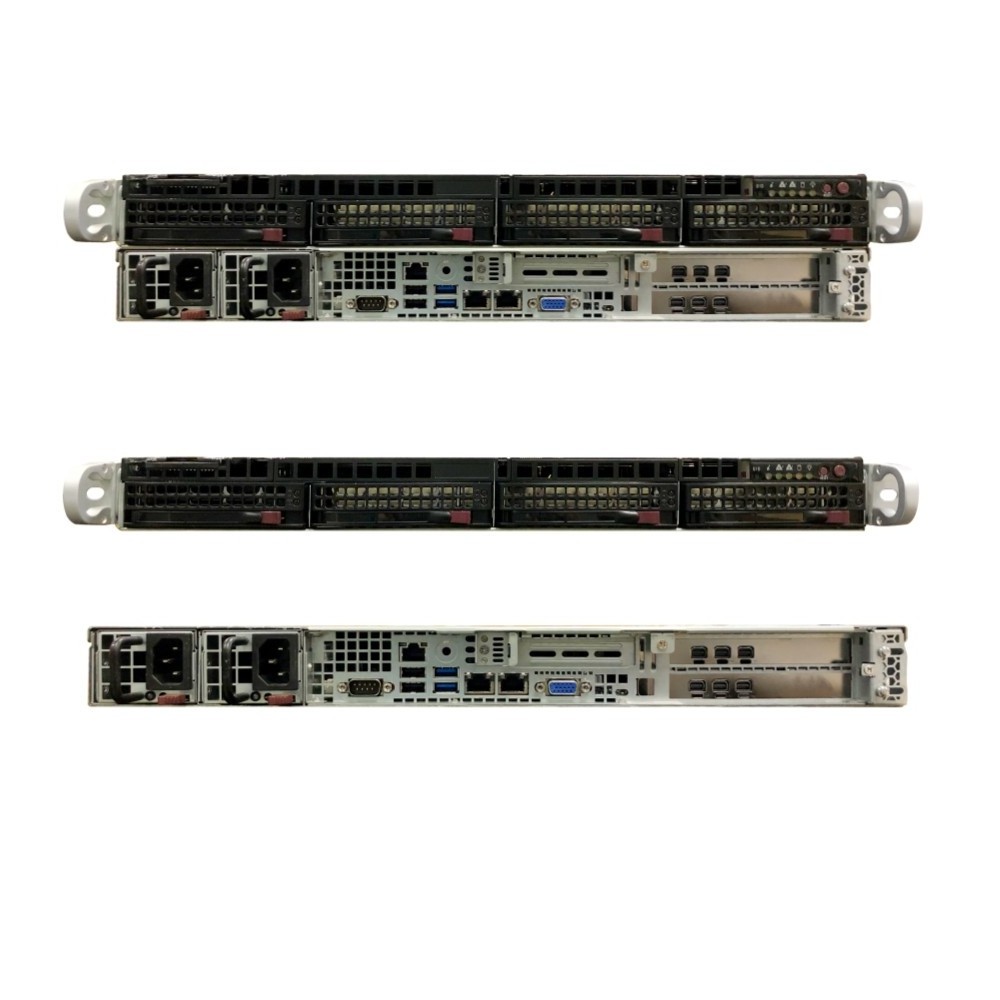

YUK9000
Multi-channel Encoder/Transcoder
Suitable for DVB, IPTV and OTT TV, radio and television, security monitoring, live video broadcast, distance education, and telemedicine etc field application.
Product Overview
YUK9000 series multi-channel encoder/transcoder is a high-quality broadcast-level video and audio real-time encoding and transcoding product. This product not only has traditional MPEG2, MPEG-4 and H.264 video encoding capabilities, but also supports the latest video standard HEVC/H.265.
YUK9000 network encoder/transcoder can be used in many applications of DVB, IPTV and OTT TV, and also can be used in many fields such as radio and television, security monitoring, live video broadcast, distance education, and telemedicine. When used as encoder, it supports multiple 4*3G-SDI/HD/SD-SDI inputs. When used as transcoder, it supports 4 Gigabit Ethernet inputs. It can convert MPEG-2/MPGE-4/H.264/H.265 video format to MPEG-2/MPGE-4/H.264/H.265 video format. It can support multi-screen encoding and transcoding. It provides low bitrate, high-quality digital audio and video encoding and transcoding solutions for customers with different needs in different fields.
Product Specifications
|
Video
|
Input
|
4x3G/HD/SD-SDI input
|
|
|
Encoding format
|
HEVC H.264 MPEG2
|
|
|
Resolution
|
1080P(1920x1080)@25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz
1080I(1920x1080)@25Hz, 29.97Hz 720P(1280x720)@50Hz , 59.94Hz 576I(720x576)@25Hz 480I(720x480)@29.97Hz |
|
Audio
|
Input
|
SDI embedded audio
|
|
|
Encoding format
|
AAC-LC
MPEG Layer 2 MPEG Layer 3 |
|
HDR
|
HDR type
|
HDR10/HLG
|
|
Network
|
Port
|
4 x 10 /100 /1000BASE-T(RJ-45)
|
|
|
Protocol
|
UDP, unicast/multicast HLS RTMP FLV SRT
|
|
Others
|
Dimension
|
437mmx 754mmx43mm
|
|
|
Power supply
|
Dual power supply redundancy, support hot swap
AC 165V ~ 265V |
|
|
Power consumption
|
Max 20W
|
|
|
Operating environment
|
Temperature 0 ~ 50°C
Humidity 30~90% (noncondensing) |
To offer best quality of TV headend equipments, fiber optic transceiver and broadcast related products all over the world is always the most motivated target to move on. The customer's satisifications is forever in the top priority of all works we do. Fast response to any questions you have is a basic principle. Looking forward to your inquiry.
