Product name:
-
Printed Circuit Boards
-
Certificate:
-
ISO/RoHS/TS16949
-
PCB Item:
-
Function Mother Board
-
Service type:
-
ODM OEM EMS
-
Material:
-
FR1\FR4\CEM1\CEM3\Aluminum PCB
-
Function:
-
FM/USB/TF/AUX/MP3/MP4/MP5/keyboard/tv/computer
-
Inner packing:
-
Vacuum Packing
-
Key word:
-
pcb pcba
-
Color:
-
Green Blue Black Red White
-
Number of Layers:
-
Multilayer
Quick Details
-
Model Number:
-
TWS-0210-46
-
Type:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
other
-
Supplier Type:
-
Factory Customized
-
Copper Thickness:
-
other
-
Product name:
-
Printed Circuit Boards
-
Certificate:
-
ISO/RoHS/TS16949
-
PCB Item:
-
Function Mother Board
-
Service type:
-
ODM OEM EMS
-
Material:
-
FR1\FR4\CEM1\CEM3\Aluminum PCB
-
Function:
-
FM/USB/TF/AUX/MP3/MP4/MP5/keyboard/tv/computer
-
Inner packing:
-
Vacuum Packing
-
Key word:
-
pcb pcba
-
Color:
-
Green Blue Black Red White
-
Number of Layers:
-
Multilayer

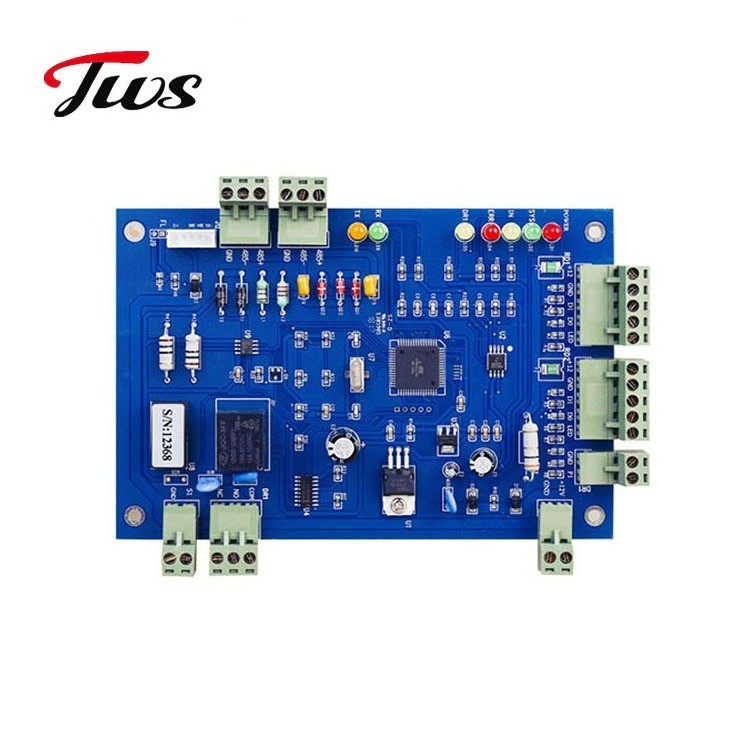

Wholesale Custom Pcb Oem odm Board Manufacture Assembly Bus swipe circuit board
Products Description
|
Images
|
|
|
Min Trace Width (a)
|
0.075mm (3mil)
|
|
Min Space Width (b)
|
0.1mm (4 mil)
|
|
Min Annular Ring
|
0.1mm (4 mil)
|
|
SMD Pitch (a)
|
0.2 mm(8 mil)
|
|
BGA Pitch (b)
|
0.2 mm (8 mil)
|
|
Solder Mask
|
|
|
Min Solder Mask Dam (a)
|
0.0635 mm (2.5mil)
|
|
Solder mask Clearance (b)
|
0.1mm (4 mil)
|
|
Min SMT Pad spacing (c)
|
0.1mm (4 mil)
|
|
Solder Mask Thickness
|
0.0007"(0.018mm)
|
|
Holes
|
|
|
Min Hole size (CNC)
|
0.2 mm (8 mil)
|
|
Min Punch Hole Size
|
0.9 mm (35 mil)
|
|
Hole Size Tol (+/-)
|
PTH:±0.075mm;NPTH: ±0.05mm
|
|
Hole Position Tol
|
±0.075mm
|
|
Plating
|
|
|
HASL
|
2.5um
|
|
Lead free HASL
|
2.5um
|
|
Immersion Gold
|
Nickel 3-7um Au:1-5u''
|
|
OSP
|
0.2-0.5um
|
|
Outline
|
|
|
Panel Outline Tol (+/-)
|
CNC: ±0.125mm, Punching: ±0.15mm
|
|
Beveling
|
30°45°
|
|
Gold Finger angle
|
15° 30° 45° 60°
|
|
Certificate
|
ROHS, ISO9001:2008, SGS, certificate
|
