Quick Details
-
Voltage:
-
220V/380V/50Hz
-
Power:
-
70kw
-
Dimension(L*W*H):
-
15000*1200*1500mm
-
Weight:
-
2500 KG
-
Machinery Function:
-
Cookies Forming
-
Output product name:
-
Wire-cut&Deposit cookies
-
Conveyor belt:
-
Cotton and PU
-
Material:
-
304# stainless steel
-
Automatic:
-
Siemens Brand PLC& Touch Screen System
-
Motor:
-
Chinese famous brand
-
Transducer:
-
Siemens Brand
-
GearBox:
-
Chinese famous brand
-
Name:
-
Skywin Complate Sandwich Biscuit Cookie Line
-
Air cylinder:
-
AirTAC Brand
-
Capacity:
-
100-1250kg/hr
-
After Warranty Service:
-
Video technical support
Quick Details
-
Marketing Type:
-
New Product
-
Brand Name:
-
Skywinbake
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220V/380V/50Hz
-
Power:
-
70kw
-
Dimension(L*W*H):
-
15000*1200*1500mm
-
Weight:
-
2500 KG
-
Machinery Function:
-
Cookies Forming
-
Output product name:
-
Wire-cut&Deposit cookies
-
Conveyor belt:
-
Cotton and PU
-
Material:
-
304# stainless steel
-
Automatic:
-
Siemens Brand PLC& Touch Screen System
-
Motor:
-
Chinese famous brand
-
Transducer:
-
Siemens Brand
-
GearBox:
-
Chinese famous brand
-
Name:
-
Skywin Complate Sandwich Biscuit Cookie Line
-
Air cylinder:
-
AirTAC Brand
-
Capacity:
-
100-1250kg/hr
-
After Warranty Service:
-
Video technical support

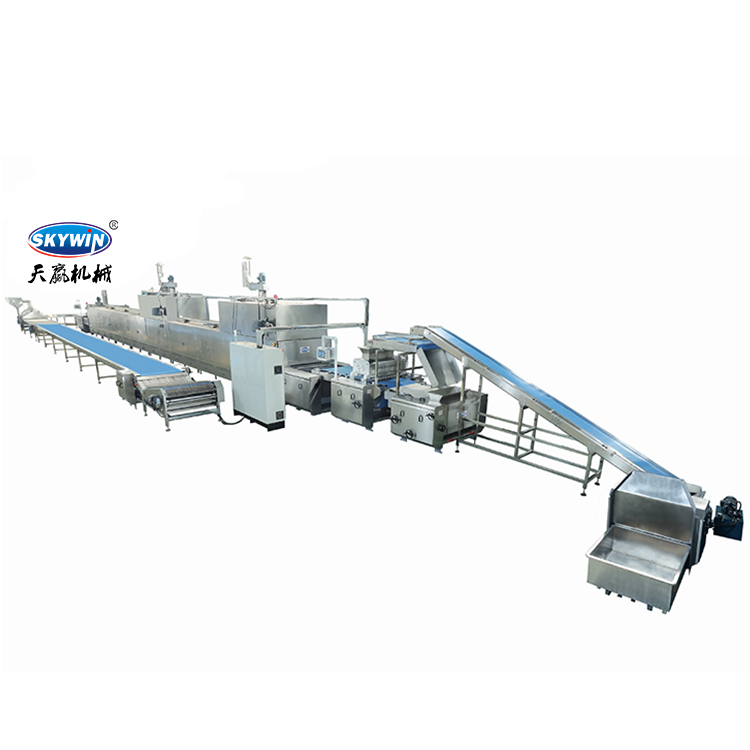

Cookies Production Line Automatic Cookie Making Machine
This Line is specialize for
Cookie Depositor and Wire cutting
,we also can design nozzles for you as per your details.
We are a 30-year-old Manufacturer of biscuit/cookies/wafer machine industry .
It is full-automatic ,servo control,easy to operation ,high quality to win customer reply and reputation , our machine sale oversea.
We can as your require to design machine ,upon receive your details .
Two Biscuit Moulds For Free ,One For Deposit ,One For Wire-Cut .
Capacity: produce biscuits 200-1500kg/h
Machine Delivery Time: 50 Days
A whole line consist of:
1.Horizontal dough mixer, 150-500kg/batch, vertical dough mixer 500kg/batch
2.Automatic dough tipper and feeding system
3.Cookie Forming Machine
4.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option,
length is depend on capacity.
5.Cooling conveyor
6.Biscuit stacking machine (start wheel stacker or penny stacker)
7.Packing table
1.
Horizontal Dough mixer
(For Both Hard Dough and Soft doug
h)
Horizontal dough mixer for soft biscuit and hard biscuit dough
1). Speed from 25r/min to Max. Speed60r/min , frequency speed
2 ) . SEW/Chinese Brand motor & gearbox
3 ) . Full stainless steel 304#
4 ) . with one Dough Tub capacity 150-500kgs.
5 ) . Tub thickness 5mm and 8mm.
6 ) . Newest design touch screen Siemens PLC control system.
2. Feeding Conveyor
Dough Truck Tilting Machine
1 ) . Hydraulic pressure tilting
2 ) . Schneider electric
3 ) . Main bearing use NSK
4 ) . Tilting time 20-25 seconds around
5 ) . Double safety travel switch
3. Cookie Forming Machine (Deposit and Wire-Cut Two Function)
Specification:
1. 304 Stainless steel Cover, thickness 1.5mm
2. Feeding roller diameter 160mm, with groove
3. Installed on Steel band width 400- 1500mm
4. Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw.
5. Provided Two set of cookies moulds.
6. Capacity: Wire cut 100-1200kg per hour
Deposit 50-1500kg per hour
7. Speed: Wire-Cut and Deposit 80-100times/min
8. SIEMENS electric parts and PLC touch screen control
9. TAIDA servo motor & gearbox
Test in Skywin Factory
Wire-cut
Deposit
Cookie Mould
| Model | Capacity |
| SK-400 | 150kg/hr |
| SK-600 | 250kg/hr |
| SK-800 | 350kg/hr |
Hybrids Direct Gas and Indirect Gas circulation Tunnel oven
1). Temperature 5 zones
2 ) . 9m pre-heating mesh belt
3 ) . 65m divided into 5 temperature zone
4 ) . Siemens inverter and PLC touch screen
5 ) . 2 sets of Air blower for hot wind circulation system
6 ) . Pneumatic automatic tracking and adjust belt and tension
7 ) . Oven cover by 304 Stainless steel
8 ) . Heat resistant material: rock wool
5. SK-320 Flow Packing Machine
Automatic Horizontal Packing Machine Model SKY-320
High Speed Flow Packing Machine,conveyor length 2.5m
The price has included:
1) Included packing conveyor
2) Servo Motor machine, film width 320mm
3) included date printer
4) Speed: 50 to 300 packs/minute
5) Max width of the packing film: 380mm
