Quick Details
-
Dimension(L*W*H):
-
2600*2200*2450
-
Weight:
-
2500 KG
-
Name:
-
cattle slaughter equipment
-
Material:
-
Hot Galvanized Steel
-
Capacity:
-
40Heads/Hour
-
Object:
-
cattle, cow, camel,buffalo,veal
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WANXIN
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2600*2200*2450
-
Weight:
-
2500 KG
-
Name:
-
cattle slaughter equipment
-
Material:
-
Hot Galvanized Steel
-
Capacity:
-
40Heads/Hour
-
Object:
-
cattle, cow, camel,buffalo,veal
| 50 cattle per shift Cattle Slaughter and Dividing Line | |||||
|
Profile:
1.This proposal is to get cattle half carcass 2.The max capacity for this line can be 50 cattle/day as 8Hs 3.Total power need:27Kw 4. Worker need:10Workers 5.Water need:200L hot water for knives and saw disinfection and 500-700L cold water to washing ground |
|||||
| Part One Slaughtering Part | |||||
| No | Name | Model | Unit | Qty | Remarks |
| 0 | Cattle weighbridge | set | 1 |
♦ Plate : 8-14mm checker plate with coating painting /6-8 Pcs U beam design
♦ Sensor : keli or Zemic with OimL certificate sensor ♦ Junciton : Ss yaohua or Tensent waterproof junctionbox ♦.U beam thickness design with 6mm ♦.Pre camber machine to making platform have a high curves in Middle of platform ♦.Auto welding machine to ensure welding is smooth and good strength ♦.Shot blasting clean all dirty before painting Size: 2.0*2.0*1.5m |
|
| 1 | Cattle Killing Box | QFX-2800 | Set | 1 | Box body is made of Hot Galvanized, cylinder and pnematic part are made of Aluminum Alloy, Machine length:2.8m |
| 2 | Blooding Hoist | Set | 1 | For the slaughtered cattle from the ground to the bloodletting orbit. Function: slaughtered cattle or live cattle, with a band chain hook to lift cattle to bloodletting orbit. Lifting height: 7m, lifting capacity: 2000Kg, installed power: 3Kw, lifting speed: 14m/min. Automatic loading type. Equipped with a low pressure control, installation materials and safety overload protection. Equipped with a manual switch. Connected with the bloodletting buffer rail. Hot galvanized steel structure | |
| 3 | Blooding Manual Pushing Line | M | 16 | Including: hot dip galvanized steel secondary beam, hanger, stainless steel track, turnout, curved rail and connecting pieces. | |
| 4 | Manual locator | pcs | 6 | hot dip galvanized | |
| 5 | Bloodletting roller hook | set | 10 | Used for conveyor cattle carcass on blooding line.Made by hot galvanized frame, two stainless steel wheels with ball bearings | |
| 6 | Cattle Rail Change Hoist | 1T | set | 1 |
Normal speed lifting.
Max Load:2000kg |
| 7 | Tube rail pulley hook | GLG-400 | pcs | 20 | Wheel frame is for high strength aluminum alloy material, in order to reduce weight. Hooks and rollers are made of 304stainless steel. |
| 8 | Five Station Carcass Processing Conveyor | DSJ-2400 | set | 1 | Hot Galvanized frame,chains and tube rail, auto control or manual control with control program, pitch distance:2400mm |
| 9 | Double column pneumatic lifting platform | SQT-1600 | set | 2 | Frame is Hot Galvanized, Sheel and The platform surface and handrail are made of stainless steel, cylinder, pneumatic components for aluminum alloy. The lifting height: from 400mm to 2000mm |
| 10 | Hydraulic hide puller | YCJ-5300 | set | 1 | Frane and Shell are made of Hot Galvanized, hide puller drum is for 304stainless steel with hdraulic system and program control system. |
| 11 | Forelegs fixing frame | set | 1 | Hot Galvanized, Made by Q345B,h=1.5m,Thickness:20mm. | |
| 12 | Single column pneumatic lifting platform | DQT-1600 | set | 2 | Work with hide puller, Frame is Hot Galvanized,The platform surface and handrail are made of 304stainless steel anti-slide plate, cylinder, pneumatic components for aluminum alloy. |
| 13 | Electronic rail weighing system | 400Kg | set | 1 | for half split weight, with printing device and Screen |
| 14 | Half Split declining machine | 0.5T | set | 1 | Normal speed lifting |
| 15 | Tube Rail manual pushing Line | m | 80 | Including: hot dip galvanized steel secondary beam, hanger, stainless steel track, turnout, curved rail and connecting pieces.(This rails are for cold room usage, can load about 50 cattle carcass.) | |
| 16 | Chest Open saw | set | 1 | With Balancer, China made or UAS Brand | |

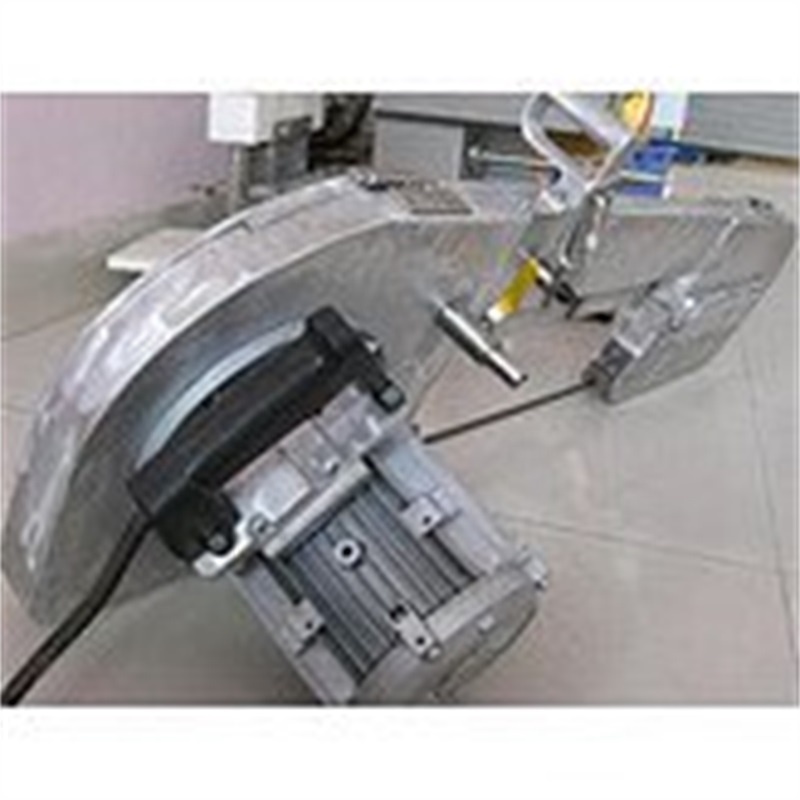

| 17 | Half split saw | pcs | 1 | With Balancer, China made or UAS Brand | |
| 18 | Hide pulling knives | pcs | 10 | High strength alloy steel, L=35cm(including 10cm handle) | |
| Sub | |||||
| Forth: Installation Cost: Seller will arrange for 1workers for Installation guide,buyer part should pay the cost as workers salary,round tickets and accommodation. | |||||
|
Delivery: by sea containers,1*40Fcl.
Delivery time: 25days after order |
|||||
| Note: 1.The stainless steel materials used for above machine and Line are food grade | |||||
| and meeting health standard requirements | |||||
| 2. All above the Power cabinets are sealed Water-proofed. | |||||
| 3. All about the machine and Equipment are 380/220V 50Hz according to China Standards. | |||||
|
4. Warranty time: Whole machine for 1Year and easy broken parts for 6months, and we offer free for 1year use eas broken parts |
|||||
-----------------------------------------------------------------------------------------------------------------------------------
