elderly nurse call host device 30 beds for patient

Product Description

Description for elderly nurse call host device 30 beds for patient

In order to reduce the complexity of installation and maintenance of the system, Smart Ward Nursing System used two-bus (Included power lines, date signal lines, voice signal lines of the system used one two-core wires). The system adopt TCP/IP Communication protocol. Bed extension, door extension and nurse extension used the latest Android 6.0 operation system.

The Smart Ward Nursing System not only provides powerful and perfect communication functions for doctors, nurses and patients in a completely new way, but also creatively provides new functions such as voice reminding, information issuing, and information collection, bedside screen scanning code payment, automatic data upload and information processing with simple and multi-way connection with the testing equipment in the ward. The extension of hospital information management (HIS) system to ward is realized, which is an indispensable part of hospital digital construction. While greatly reducing the work intensity of medical staff, the quality of medical care has been greatly improved.

Main Features:

1.Top technology for Two-Bus
Smart Ward Nursing System used two-bus so that reduce the complexity of installation and maintenance of the system.

2.Professional Application System Platform
It adopt to the advanced Android 6.0 operation system, and customize the interface and function according to hospital order.

3.Auto-Induction of Nurse Inspection
With infrared receiver function, nurse use the mobile extension to match code with bed correspondingly so that auto-induction nurse location.

4.Touch screen is available.
Nurse Extension, Bed Extension, Door Extension are used large touch screen.

Functions:

It is divided into basic functions, extended functions, and enhanced functions, which are customized according to hospital needs.

Let "information" run more, let patients run less, let "information" pre-process, let patients wait less.

Facilitate medical care, improve work efficiency, and achieve refined management.

7-inch multi-point capacitive touch display screen; WIFI / Ethernet port module; two-wire full digital call intercom; android smart operating system

	Item	Management Host
	Model Number	SYZH-GL6
	Color	Black
	Function	Patient information input and issuing.

	Item	Nurse Extension
	Model Number	SYZH-YH6
	Color	Black
	Function	Calling, talk and hang up. Touchscreen

	Item	Duty Extension
	Model Number	SYZH-ZB6
	Color	Black
	Function	Can display and voice play the call ward number and bed number, the number of broadcasts is adjustable, support loop broadcast

	Item	IOT Terminal
	Model Number	SYZH-WLW6
	Color	White
	Function	Built-in TCP/IP protocol stack, integrated PLC communication function. Support Blue tooth 4.2 low power Blue tooth. Security and confidentiality. Support AES-128 security encryption.

	Item	Bed Extension
	Model Number	SYZH-CT6
	Color	White
	Function	Calling, Show patient information, Talkback. Support for reinforcement calls and reset functions.

	Item	Door Extension
	Model Number	SYZH-MK6
	Color	White
	Function	Show room information. Quick view of ward round record. Reset the call. Support call forwarding, can receive call information in other rooms, and support mobile extensions to achieve voice calls with them.

	Item	Corridor Display
	Model Number	ETZW-HX2
	Color	Black
	Function	Show calling information. Show Time.

	Item	Smart Handle
	Model Number	SYZH-SB6
	Color	White
	Function	Connect to each bed extension via a dedicated cable for patient bed access.

	Item	Bathroom Extension
	Model Number	ETZW-WY2
	Color	White
	Function	Make emergency call from bath room. Receive the signals of nurse arriving and ward inspection.

	Item	Mobile Extension
	Model Number	ETZW-YD1
	Color	White
	Function	Voice number telling of wireless call. Hang up call

Application:

ETR nurse call system provides reliable solutions for a wide range of customers including hospitals, care groups, health recovery center, nursing and residential homes.

If customer required, assigning experienced after-sales engineer for on-site service with 7 days. (Visa apply should be considered) .

Successful Case

ETR nurse call system has be widely used in hospitals at domistic and overseas, good quality ,high performance,zero defects.

FAQ

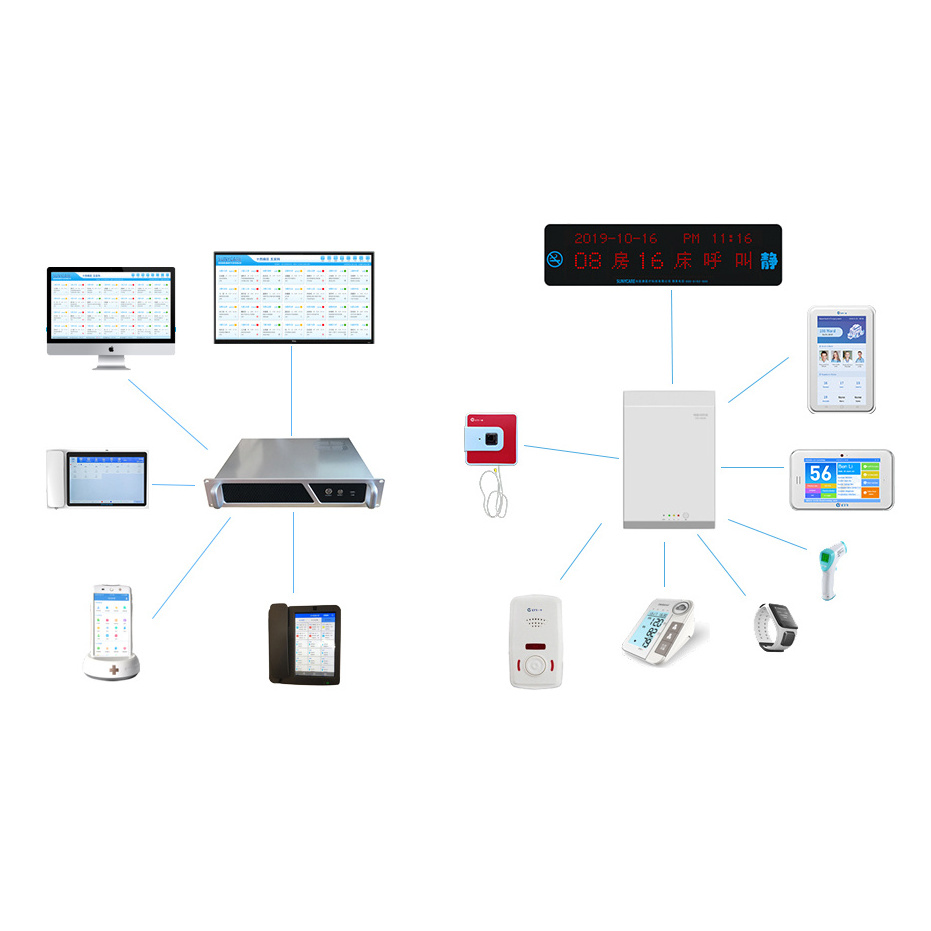

What are the components of the elderly nurse call host device 30 beds for patient ?

1. Managing Host & Computer usually install in the nurse working place.
2. Nurse Extension install in the doctor office or duty room.
3. Corridor display install in the corridor.
4. Bed extension, bathroom extension & door lamp install in the ward.

How does the system works?
1. After patient have any requirements, patient can call nurse by bed extension, all the need to do is press the button sitting on their head of bed.

2. When the patient presses the call button, the nurse can received the call from nurse station by Company, and make two-way call and talkback with patient. When patient pressed the call ,the corridor display also can show calling information on the display, so that it can ensure the nurse can reply the calling information as soon as possible.

How long is the effective distance of the elderly nurse call host device 30 beds for patient?
The Max distance is 1000 Meters, the straight line distance is about 200 Meters.

What is the most advantage of the elderly nurse call host device 30 beds for patient?
We provide the NWS software in the system that can help nurse to edit and manage patient information so that nurse can save working time at paper work.

Why choose us?
Hunan ETER was built in 2003. We manufacture nurse call system and oxygen generator more than 10 years and export products many countries all over the world. We had gained CE certification and ISO 9001 certification. We sincerely hope to cooperated with your esteemed company.

What terms of payment you use?
T/T, L/C etc.

Do you accept the small order?
Yes, you can contact with us.

Do you provide technical support?
Yes, technical support is available after sales, if needed, we will provide our technicians to overseas to service you.

How to get the order faster and effective?
You may contact me directly via phone, email etc, normally I will reply you as soon as possible.
