Quick Details
-
Year:
-
2024
-
Voltage:
-
Customize
-
Dimension(L*W*H):
-
950*550*1800, 900*600*1100mm
-
Motor Power (kW):
-
4
-
Weight (T):
-
1.2
-
Product name:
-

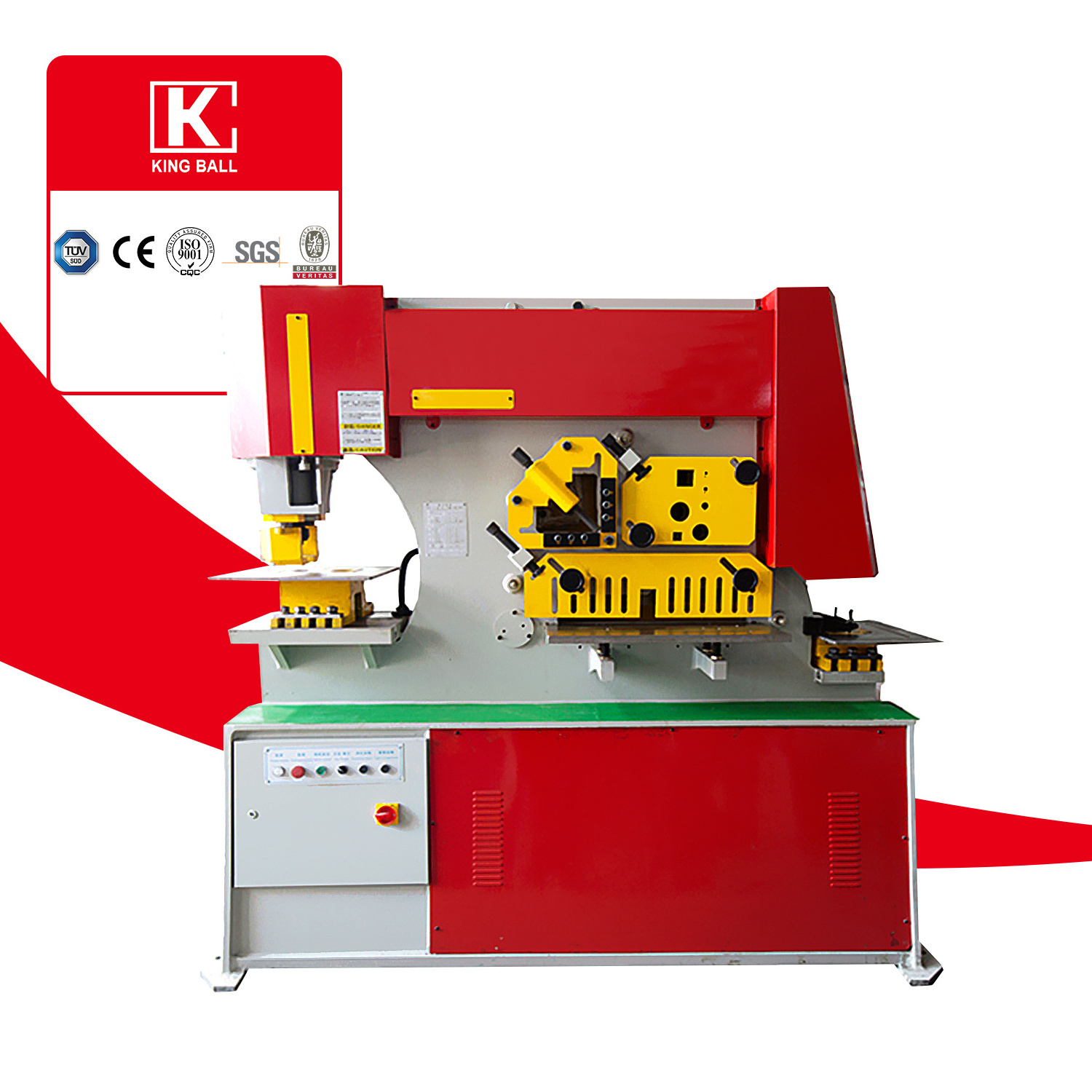

Metal Punching And Shearing Machine
-
Function:
-
Steel Metal Punching
-
Keyword:
-
Ironworker Machine
-
Machine Type:
-
Iron Working Machine
-
Name:
-
Hydraulic Iron Worker Punch
-
Application:
-
Metal Sheet Punching
-
Type:
-
Multi-Function Machine
-
Usage:
-
Pressing Metal Products
-
Model:
-
Deep Punching Machine
Quick Details
-
Nominal Force (kN):
-
35000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kingball
-
Year:
-
2024
-
Voltage:
-
Customize
-
Dimension(L*W*H):
-
950*550*1800, 900*600*1100mm
-
Motor Power (kW):
-
4
-
Weight (T):
-
1.2
-
Product name:
-
Metal Punching And Shearing Machine
-
Function:
-
Steel Metal Punching
-
Keyword:
-
Ironworker Machine
-
Machine Type:
-
Iron Working Machine
-
Name:
-
Hydraulic Iron Worker Punch
-
Application:
-
Metal Sheet Punching
-
Type:
-
Multi-Function Machine
-
Usage:
-
Pressing Metal Products
-
Model:
-
Deep Punching Machine
Products Description
Main functions and features
- Double cylinders hydraulic punch & shear machine
- Five independent stations for punch, shear, notcher, section cut
- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications
- Universal die bolster, easy change punch holder fitted, punch adapters supplied
- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal
.
Technical Parameters
|
Model
|
Q35Y-12
|
|
Punching Pressure (T)
|
35
|
|
Max. cutting thickness of sheet plates (mm)
|
12
|
|
Material strength (N/mm²)
|
≤450
|
|
Angle of Shear (°)
|
7°
|
|
Flat bar shearing (T*W)(mm)
|
12*300
|
|
Max. length of cylinder stroke (mm)
|
35
|
|
Trips frequency (times/min)
|
10-18
|
|
Depth of throat (mm)
|
115
|
|
Max. punching diameter (mm)
|
25
|
|
Motor power (KW)
|
4
|
|
Overall dimensions (L*W*H)(mm)
|
950*550*1800
|
|
Weight(kg)
|
1200
|
Types of profiled steel for shearing (If you want Joist or Channel, need special order)
Detailed Images
===Features===
It adopts hydraulic driving system andis the latest punching and shearing machine in our country, Various metal plates, square steel, Round steel, angle steel, channel steel and I-iron can be cut, punched and notched by this machine. It is also equipped with a stop device for cutting.
STANDARD ACCESSORIES
Standard accessories of hydraulic iron worker
A Hydraulic Iron worker
Includes:
1 set punch and die ,1 set round and square blade and model , 1set angle blade and model ,1 set plate steel blade and model ,1 set notch punch and die
Product Packaging & Shipping
Pre-sales services:
1. inquiry and consulting support
2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery
overseas
