Comprehensive Intelligent Neonate ACLS Manikin Emergency Skills CPR Training Manikin

Product Description

Comprehensive Intelligent Neonate ACLS Manikin Emergency Skills CPR Training Manikin

CHACLS1500

Comprehensive Infant Emergency Skills Training Manikin

CHACLS1500 is the world leading man-machine interaction infant ACLS training simulation system, can simulate real emergency scenes and all the related signs of emergency patient,such as: pupilstates, artery pulse, heart rhythm, heart and lung auscultation sound,etc.All the clinical emergency measures such as defibrillation,pacing,CPR, drug therapy, elc, and real clinical emergency instrument can be acted on the system.The manikin would show differentvital signs change according to different rescue measures.Open case editing function allows lecturer edit required emergency cases according to clinical practice and teaching requirement for students' training use.Interactve internet features can implement whole students teaching; lecturer can acquire students' operation data easily and timely give correction and guidance.

Implement standard:AHA(American Heart Association)2015 guideline for CPR and ECC

Features:
* This sign indicates that the functions can be run only when the manikin is used with the optional accessories

Head and neck:

1.Normal, dilated pupil;

2. Airway management: realistic mouth, nose, tongue, gum, throat, esophagus, epiglottis, trachea, tracheal ring ; can practice tracheal intubation via mouth or nose, sputum suction; oxygen inhaling; allow monitoring airway intubation, show correct and wrong intubation; there is prompt for wrong tracheal intubation; only right chest rise can be observed due to excessive intubation position;

3. Gastric intubation: detect tube position via auscultation; inserting gastric tube for gastrointestinal decompression, nasal feeding, gastric lavage, etc;

4. Respiration mode: normal breath, meningitic breathing, irregular gasping, breathing holding, respiration ceases;

Chest and abdomen:

1.Pneumothorax puncture extraction, pleural effusion extraction training;
2.Auscultation scund: include heart sound, breath sound, bowel sound, of which the normal heart sound and breath sound can be adjusted according to the monitor HR and respiratory rate;
3.CPR training: Support muiltiple ventilation ways: mouth to mout, mouth to nose,BVM to mouth; can monitor iniation times and frequency, compression time, frequency and depth; judge the ratio of artificial breathing and chest compression;
* Real delibrllation and pacing:Achieve real defibrllation and pacing by using with real defibrllating pacer(prepared by user-self;
* ECG monitoring: Be used with real ECG monitor (prepared by user-self to realize ECG monitoring;
* Simulative ECG monitoring should be used withCH/J115muit-paramelr simulation of ECG to achieve the funcdion of manioring ECG.
* Simulate defibillation and pacing: should be used with GD/J880;can choose defibrllation energy, the max energy is 360J;
* Simulate AED: be used with CH/AED99F to simulate AEDoperation;English voice prompts during the entire process; providing electrode button;automatic heart rhythm detection and analyze if the defibrillation is needed;

Limbs:

1. Venous transfusion/puncture, arm veins include and Scalp vein includes.

2. Bone marrow puncture: Effusion of simulative bone marrow prompts proper tibial puncture; can inject into drugs and practice transfusion;

3. BP measurement training

4. Realistic infant manikin with height50cm, body weight3kg; limb joint: bend, rotate, upper and lower movement;

Software:

1. Vital signs monitoring: spontaneous breath; simulate femoral artery, umbilical artery pulse; heart rate, cardiac rhythm, crying, hiccupping, BP, saturation of blood oxygen, ABP, mixed cyanosis, central cyanosis, peripheral cyanosis;

2. large numbers of questions, ECG, emergency scenes and cases are available in the system;

3. Infant ACLS emergency script editor is used to edit infant emergency cases and simulate emergency scenes;

4. Infant ACLS emergency script training software

5. Vital signs of manikin; recording operation log;

6. Wireless connection between manikin and the simulative system;

7. Perform PETCO2: confirm tracheal intubation position and monitor the effectiveness of resuscitation operation

Standard Components:

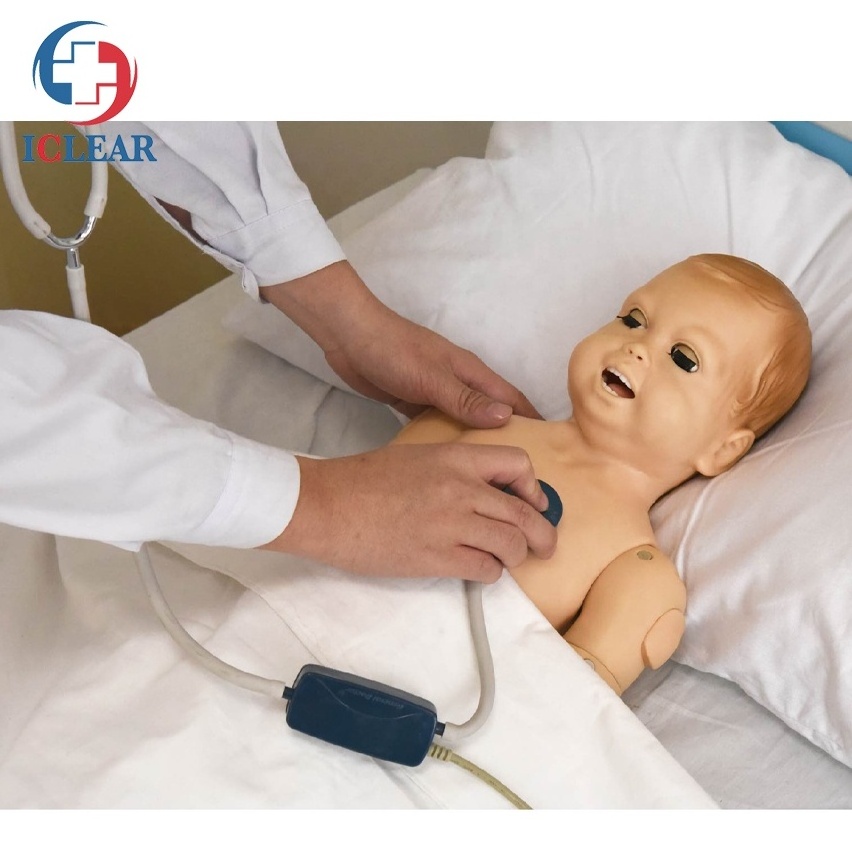

1. Intelligent ACLS Baby Manikin

2. CH/HS7 BP Training Equipment

3. Heart and Lung Auscultation Simulator Set

4. CH/XD1000I ECG Generator

5. CH/CC999I Defibrillator Converter

6. BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

7. Emergency System Controller

8. Medical Air Compressor

ptional accessories:

1.Video monitoring equipment

2.Computer / Laptop

3.Computer Console Car

4.Stainless Steel Control

5.Rescue Console
