Quick Details
-
Battery Size:
-
LFP 12100
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
12KG/25LBS
-
voltage:
-
12.8V
-
capacity:
-
100Ah
-
charge voltage:
-
14.6v
-
Dimension:
-
323/260*171*215mm
-
weight:
-
12kg
-
cycle life:
-
2000-5000times
-
OEM/ODM:
-
bulk order only
-
Battery type:
-
Lifepo4
-
Warranty:
-
5 years
-
Certification:
-
GB
Quick Details
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, RV
-
Brand Name:
-
LJY Energy
-
Model Number:
-
L-12100
-
Battery Size:
-
LFP 12100
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
12KG/25LBS
-
voltage:
-
12.8V
-
capacity:
-
100Ah
-
charge voltage:
-
14.6v
-
Dimension:
-
323/260*171*215mm
-
weight:
-
12kg
-
cycle life:
-
2000-5000times
-
OEM/ODM:
-
bulk order only
-
Battery type:
-
Lifepo4
-
Warranty:
-
5 years
-
Certification:
-
GB

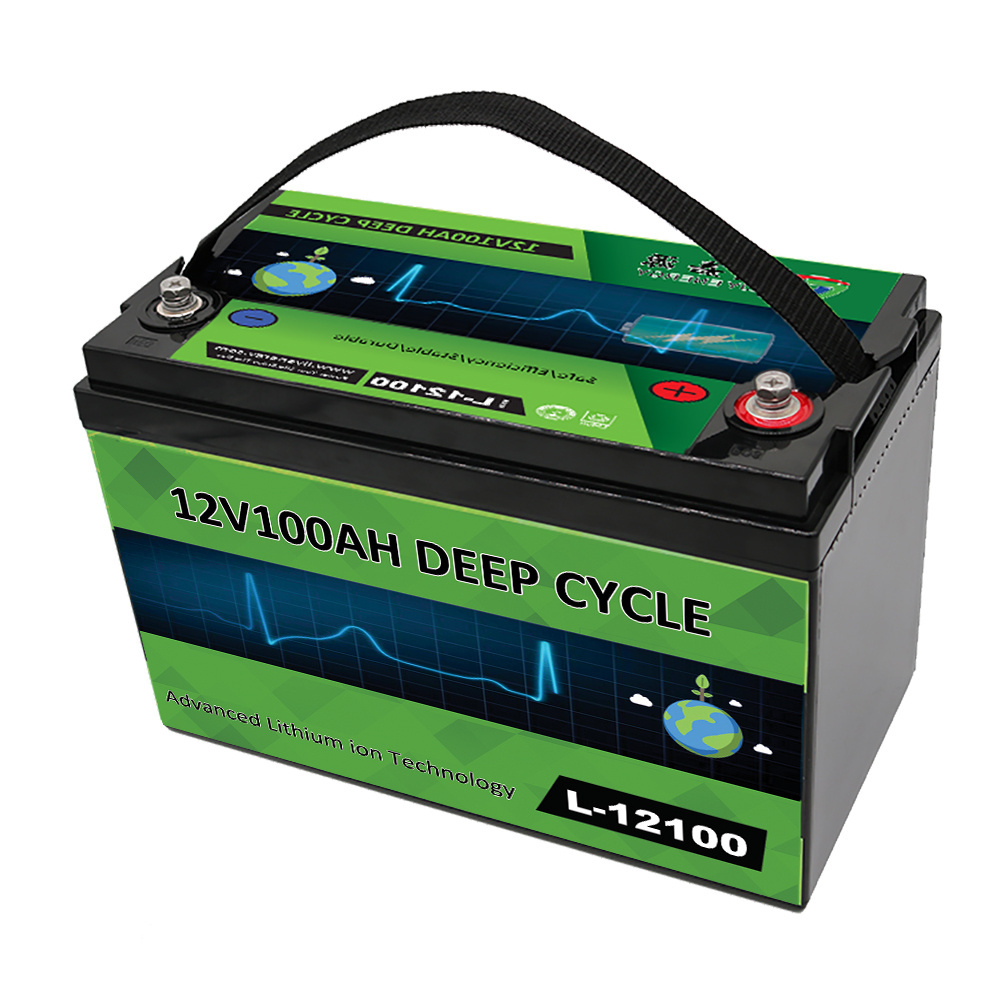

12V100Ah lifepo4 agm Deep cycle batteries lithium 12v 100ah iron phosphate battery pack
product detail:
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance(AC) | ≤20mΩ | |
| Cycle Life | >2000 cycles @ 1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 100A | |
| Charge Cut-off Voltage | 15.6±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max.Pulse Current | 120A(<3s) | |
| Discharge Cut-off Voltage | 8V | |
| Envitonmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
| IP Class | IP65 | |
| Mechanical | Plastic Case | ABS |
| Approx.Dimensions | 342mm*173mm*220mm (13.47in.*6.81in.*8.66in.) | |
| Approx.Weight | 13.60kg (29.98lbs) | |
| Terminal |
M8 |
Packaging & Shipping
Our product will be use carton package,plywood wooden package,pallet etc.
sea shipping,air shipping,door to door. depends on your Time and shipping budget.
