Quick Details
-
Forming Temperature:
-
1530℃
-
Grade Group:
-
Q195-Q345
-
Connection for pipe:
-
by Flange or Welding
-
Shape:
-
straight, elbow, Tees, Y-piece,bending
-
Pipe material:
-
Carbon Steel Q235 Special Pipe, Thick Wall Pipe
-
Hardness of ceramic:
-
Mohs 9
-
Surface Treatment:
-
painted
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Shandong, China, Shandong, China (Mainland)
-
Product name:
-
Wear resistant ceramic pipe /cast basalt lined steel pipes
-
Forming Temperature:
-
1530℃
-
Grade Group:
-
Q195-Q345
-
Connection for pipe:
-
by Flange or Welding
-
Shape:
-
straight, elbow, Tees, Y-piece,bending
-
Pipe material:
-
Carbon Steel Q235 Special Pipe, Thick Wall Pipe
-
Hardness of ceramic:
-
Mohs 9
-
Surface Treatment:
-
painted
Wear resistant ceramic pipe /cast basalt lined steel pipes
Rugular size of ceramic lined pipe
|
Nomal Diameter |
50~800 |
The detailed specifications are based on factual conditions. |
|
Thickness of Wear-resistant Liner(mm) |
3~50 |
|
|
Thickness of Steel pipe |
4~8 |
Remark: Other sizes are available upon request.
Alumina ceramic Technical datasheet
|
Performance Index |
92Series |
95Series |
|
Al2O3 |
>=92% |
>=95% |
|
Fe2O3 |
<=0.02 % |
<=0.02 % |
|
Compressive strength(Mpa) |
>=2000 |
>=2250 |
|
Hardness mohs |
>=9 |
>=9 |
|
Volume density(g/cm3) |
>=3.60 |
>=3.70 |
|
Water absorption(%) |
<=0.01 |
<=0.01 |
| Color of product |
white |
white |
Advantages:
(1)Great Hardness : The Mohs hardness is 9 which is only inferior to diamond .
(2)Good Abrasion Resistance : The alumina ceramic abrasion resistance is 260 times that of manganese steel and 170 times that of high chromium iron.
(3)Corrosive Resistance :As an inorganic oxide, high alumina ceramics has extreme stable molecular structure and no electrochemical corrosion, which can resist the corrosion from various fluid such as acid, alkali, salt and organic solvent.
(4 )Light Weight : Density of 3.6g/cm3 is only half of steel, which highly decrease the total weight of the pipe

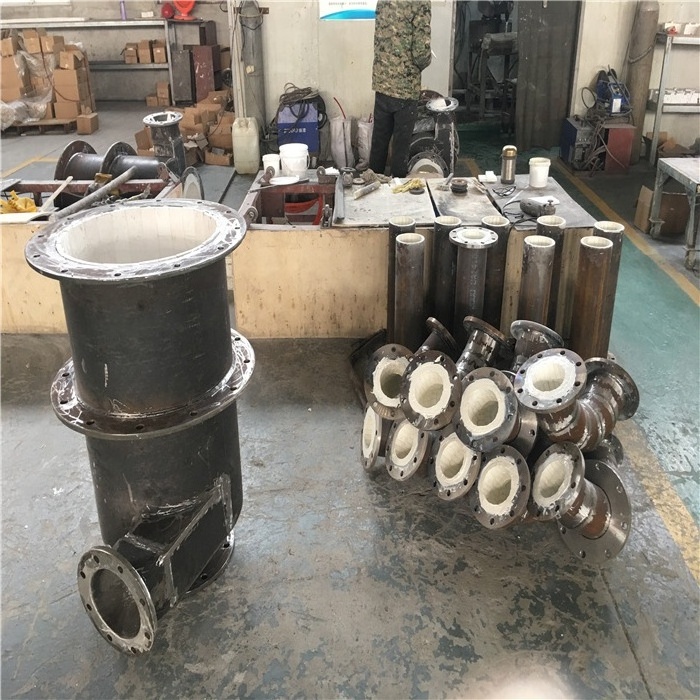

The wear resistant alumina ceramic lined pipe are used in all industry where wear resistance is needed. The high alumina ceramics are installed into the internal surface of the pipe properly bywelding, pasting or interlocking system. With the
brilliant properties of resistance to wear, corrosion and heat , the pipe is widely used in material
handling of coal industry, electric power, metallurgy, mining and chemical industry and it is the ideal
wear-resistant selcetion.
| Nomal Diameter | 50~800 |
The detailed specifications
are based on factual conditions. |
| Thickness of Wear-resistant Liner(mm) | 3~50 | |
| Thickness of Steel pipe | 4~8 |
