- Product Details
- {{item.text}}
Quick Details
-
Storage Type:
-
normal
-
The charging ratio:
-
0.1C
-
The discharge rate:
-
0.1C-0.5C
-
Warranty:
-
2 years, 3years
-
Battery Size:
-
12V 250ah
-
Brand Name:
-
Greensun
-
Model Number:
-
FM250-12
-
Place of Origin:
-
China
-
Weight:
-
65kg
-
Electric Energy:
-
3000 Wh
-

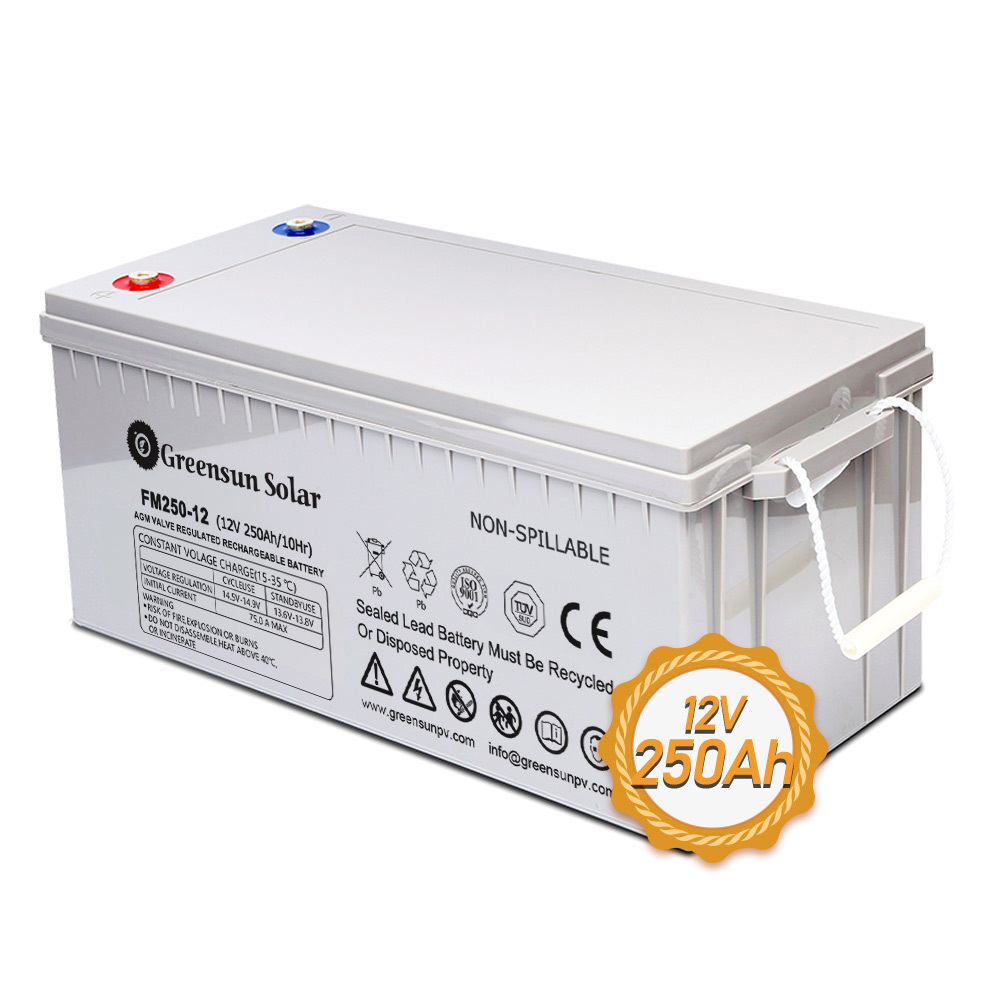

Product name:
-
12v deep cycle battery
-
OEM Order:
-
Acceptable
-
Separator:
-
absorbent glass mat (GEL)
-
Material:
-
High Pure Lead
-
Container Material:
-
ABS
-
Certification:
-
CE ISO RoHS MSDS
-
Maintenance Type:
-
Maintenance Fee Lead-acid Battery
-
Terminal:
-
T11
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed AGM
-
Cycle Life:
-
8 years
-
Storage Type:
-
normal
-
The charging ratio:
-
0.1C
-
The discharge rate:
-
0.1C-0.5C
-
Warranty:
-
2 years, 3years
-
Battery Size:
-
12V 250ah
-
Brand Name:
-
Greensun
-
Model Number:
-
FM250-12
-
Place of Origin:
-
China
-
Weight:
-
65kg
-
Electric Energy:
-
3000 Wh
-
Product name:
-
12v deep cycle battery
-
OEM Order:
-
Acceptable
-
Separator:
-
absorbent glass mat (GEL)
-
Material:
-
High Pure Lead
-
Container Material:
-
ABS
-
Certification:
-
CE ISO RoHS MSDS
-
Maintenance Type:
-
Maintenance Fee Lead-acid Battery
-
Terminal:
-
T11
Product Description
Key Features:
♦Safety seal, Deflating system ,Simple maintenance, long lasting,Stable quality and high reliability
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like, immobile and does not leak, enabling
uniform reaction of each part of the plate.
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out, environment friendliness
♦Efficient venting system release excessive gas automatically
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like, immobile and does not leak, enabling
uniform reaction of each part of the plate.
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out, environment friendliness
♦Efficient venting system release excessive gas automatically
Specification
|
Battery Model
|
FM100-12
|
FM120-12
|
FM150-12
|
FM200-12
|
FM250-12
|
||||
|
Nominal Voltage
|
12 Volt
|
|
|
|
|
||||
|
Nominal Capacity
(10HR)
|
100 AH
|
120AH
|
150AH
|
200AH
|
250AH
|
||||
|
Dimensions
L*W*H
|
330*173*212
|
408*177*225
|
483*170*238.5
|
522*240*218
|
522*268*220
|
||||
|
Max. Discharge Current
|
1200A (5s)
|
1300A (5s)
|
1500A (5s)
|
2000A (5s)
|
2500A (5s)
|
||||
|
Terminal (Optional)
|
T6/T11
|
T6 /T11
|
T11
|
T11
|
T11
|
||||
|
Operating Temp.Range
|
Discharge : -15 ~ 50℃ (5~122°F)
Charge : 0 ~ 40℃ (32-104°F)
Storage : -15 ~ 40℃ (5~104°F)
|
|
|
|
|
||||
|
Nominal Operating Temp.Range
|
25 ± 3℃ (77±5°F)
|
|
|
|
|
||||
|
Internal Resistance
|
Approx 4.9mΩ
|
Approx 4.0mΩ
|
Approx 3.5mΩ
|
Approx 2.7mΩ
|
Approx 2.5mΩ
|
||||
|
Cycle Use
|
14.5V~14.9V at 25 ℃(77 ºF)Temp. Coefficient -30mV/ C
|
10-15 Years
|
|
|
|
||||
|
Standby Use
|
13.6V~13.8V at 25 ℃(77 ºF)Temp. Coefficient -20mV/ C
|
3-5 Years
|
|
|
|
||||
|
Container Material
|
ABS
|
|
|
|
|
||||
