Quick Details
-
Ink Type:
-
solvent
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Acetek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
5000cm*1300cm*1550cm
-
Weight:
-
690KG(grossKG
-
Core Components:
-
board
-
Name:
-
konca printing machine
-
printing solution:
-
1440dpi
-
head:
-
konica 512/42pl,512/30pl ,4/8pcs avabile
-
Max Print Width:
-
3.2m
-
ink type:
-
konica solvent ink
-
ink color:
-
C,M,Y,K
-
gross weight:
-
690KG
-
net weight:
-
605KG
-
packing size:
-
5000cm*1300cm*1550cm
-
Software:
-
maintop 5.3, photo print
Quick Details
-
Print Dimension:
-
3.2m
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
solvent
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Acetek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
5000cm*1300cm*1550cm
-
Weight:
-
690KG(grossKG
-
Core Components:
-
board
-
Name:
-
konca printing machine
-
printing solution:
-
1440dpi
-
head:
-
konica 512/42pl,512/30pl ,4/8pcs avabile
-
Max Print Width:
-
3.2m
-
ink type:
-
konica solvent ink
-
ink color:
-
C,M,Y,K
-
gross weight:
-
690KG
-
net weight:
-
605KG
-
packing size:
-
5000cm*1300cm*1550cm
-
Software:
-
maintop 5.3, photo print
Why choose our konica solvent printer ?
l Our company establish in 2007, with 8years of printer export experience.
l With full experience, we know printer well, we can provide you professional solution.
l 5 Engineers with full printer skill, and they are english speaking, communicate free.
l Engineer online 24hours, solve your daily work problem intime.
l Engineer can come to serive, also welcome your engineer visit us for free traning.
l New model always showing in our showroom, welcome your visit for check.
l We have enough stock in warehouse, ensure fast shipment.

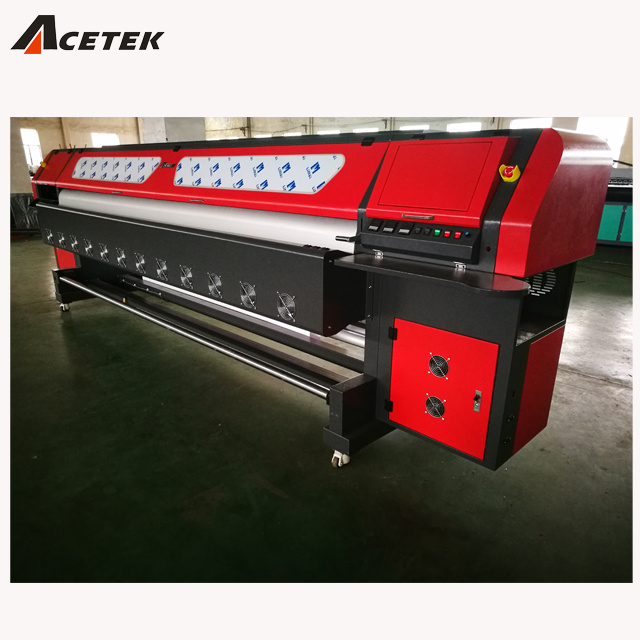

Acetek Factory price Digital Canvas Flex Printing Machine with Konica KM512
Heads
Quite details of konca printing machine:
Product name: konica H3208 solvent printer
Print head: 4/8 pcs konica 512/42pl, 512/30pl printhead
Max printing width: 3.2m
Colors: 4 or double 4colors printing, C, M, Y, K,
Suitable ink: Acetek konica solvent ink
our advantage of konca printing machine(please read carefully)
1. imported liner guide precision machined y beam and ultra wide aluminum
platfor keep the mechanical stability and high-quality output for a long time
2. bold double rubber rollers, high precious feeding system, achieving accurate
feeding materials
3. perfect tension take up system
4. super wide front heating fans system improve the production efficiency
5. PID control the front,middel and behind heating stability. adsorpiton knob can
adjust the suction strength of the platform, keeping feeding material flatly
Specification:
|
Model |
H3208 series |
|||
|
Print Head |
Drop on demand Piezo Head |
|||
|
Number of Printhead |
4 Heads |
8 heads |
||
|
Maximun Print Width |
3200mm(125.98") |
|||
|
KM512-30pl printhead (4head or 8 heads)
|
480*360dpi 2pass 120m2/h |
480X360dpi 2pass 240 m2/h
|
||
|
480*540dpi 3pass 90m2/h |
480X540dpi 3pass 180 m2/h
|
|||
|
480*720dpi 4pass 60m2/h |
480X720dpi 4pass120 m2/h
|
|||
| KM512-42pl printhead(4 heads or 8 heads) |
180X720dpi 2pass 80m2/h |
360X1080dpi 3pass 56 m2/h
|
||
|
240X720dpi 2pass 60m2/h |
360X1440dpi 4pass 42m2/h | |||
|
240X1080dpi 3pass 40m2/h |
720X1440dpi 4pass 22 m2/h | |||
|
Media |
max.width |
3300mm(129.92") |
||
|
Max. Weight |
80kg |
|||
|
Type |
Frontlit,Backlit,Vinyl,Polyester,Window Film, Leater… |
|||
|
thickness |
4mm(Max) |
|||
|
Heating System |
3 way intelligent heater |
|||
|
Auto Media Feeding &Take-up System |
Equipped |
|||
|
Ink |
Type |
Solvent ink (C , M , Y , K) |
||
|
Capacity |
k 1L or 5L per Color Main Tan |
|||
|
Auto Cleaning System |
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System |
|||
|
Print interface |
USB2.0 |
|||
|
Power Specification |
220V/230V 50Hz/60Hz Printer:660W Heater:1900W |
|||
|
Operational Environment |
Temperature : 20 °C -28 °C Humidity : 40%-70% |
|||
|
Compatible RIP Software |
Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop |
|||
|
Dimension &Weight |
Machine |
L4800mm×W1110mm×H1450mm 610kg |
||
|
Package |
L5000mm×W1300mm×H1550mm 690kg |
|||
konca printing machinedetail pictures:
konca printing machinewith standard export wooden box package
Machine dimension / NW: L4,800mm*W1110mm*H1,4500mm 610kg
Package dimension / GW: L5,000mm*W1300mm*H1,550mm 690kgs
Tongchuang Technical support
It is easy for you to choice a cheap price and buy a printer, beause they are so much suppliers.
But all suppliers must in different serivce,
Except of price, the most important thing is the Technical support,
Tongchuang company pay high attention to after sale, to keep long term business!
Below are our services terms:
1. Every set solvent printer, eco solvent printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.
2. Our engineer full of experience, and they are english speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.
3. You are alway welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of solvent printer, eco solvent printer.
4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charge.
Tongchuang engineer services in different countries.
