Quick Details
-
Application:
-
construction
-
Rated Lifting Moment:
-
8.4-10T.M
-
Span:
-
850mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RISEN
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE/ISO9001
Quick Details
-
Rated Loading Capacity:
-
2000kg
-
Max. Lifting Height:
-
9m
-
Engine Brand:
-
Imported
-
Application:
-
construction
-
Rated Lifting Moment:
-
8.4-10T.M
-
Span:
-
850mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RISEN
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE/ISO9001

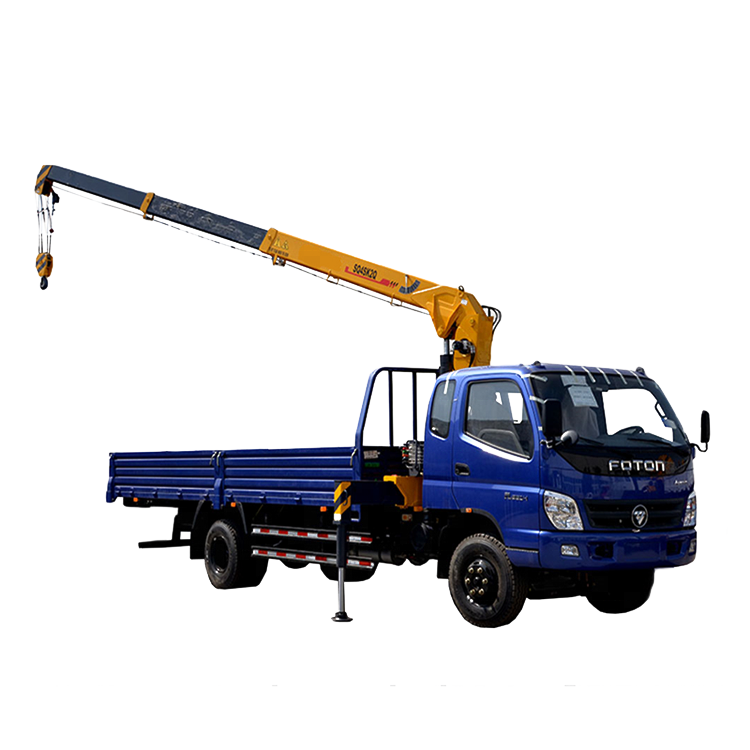

Popular SQ4SK2Q telescope 4 ton small trailer truck mounted crane with basket for sale
1. Structural pieces with 690MPa high-strength steel plate welding, high strength, good toughness, light weight.
2. The use of advanced three-dimensional design and stress analysis to ensure product reliability.
3. Rotary mechanism using hydraulic mechanical double brake, to ensure the operation and driving safety.
4. Winning mechanism using mature hydraulic winch structure of small noise, high efficiency, good reliability.
5. Suspension and contraction of the three-stage cylinder + cable with telescopic form, with the ability to carry the leading domestic, cylinder part of the 100%, rigging part of 2 /
6. Work range, wide range of applications.
Products with car seat control, operation field of vision better, more secure operation.
| Model | SQ4SK2Q | Unit | ||
| Max Lifting Capacity | 4000 | kg | ||
| Max Lifting Moment | 8.40/10 | T.M | ||
| Recommend Power | 16 | kw | ||
| Max Oil Flow of Hydraulic System | 25 | L/min | ||
| Max Pressure of Hydraulic System | 20 | MPa | ||
| Oil Tank Capacity | 60 | L | ||
| Rotation Angle | All Rotation | |||
| Crane Weight | 1271/1396 | kg | ||
| Installation Space | 850 | mm | ||
| Choice of Chassis | EQ1092FJ; EQ1092FJ1; EQ1092F3GJ1; EQ1081GJ12D5; DFL1120B; LZ1120LAPT; HFC1132KR1K3; EQ5121GFJ; HFC1083K103R1D; EQ1110GLJ3; EQ1120GLJ; EQ1168TLJ; BJ1122V4PBB-A1; BJ1158VKPFK-2 | |||
| SQ4SK2Q Lifting capability diagram | ||||
| Working radius (m) | 2.1 | 2.5 | 3 | 7.93 |
| Lifting capacity (kg) | 4000 | 3120 | 2580 | 754 |
