Quick Details
Quick Details
-
Place of Origin:
-
Chongqing, China
-
coating:
-
TIN/TIALN
HSS M42 Dumont metric push/pull type round broach , round broaching tool
They are used for deformation correction smooth cylindrical holes afterholes after heat treatment.
Specification table of metric push pull round broaching tool :
|
Normal Dia. |
Overall Length
|
Pushing Length |
Pushing Quantity |
|
10 |
140 |
10-30 |
0.04 |
|
11 |
|||
|
12 |
|||
|
13 |
|||
|
14 |
|||
|
15 |
|||
|
16 |
140.170 |
10-50 |
|
|
17 |
|||
|
18 |
|||
|
19 |
150.185 |
10-50 |
0.04-0.06 |
|
20 |
|||
|
21 |
|||
|
22 |
155-250 |
10-80 |
|
|
24 |
|||
|
25 |
|||
|
26 |
185-350 |
18-120 |
|
|
28 |
|||
|
30 |
190-360 |
18-120 |
|
|
31 |
|||
|
32 |
|||
|
34 |
|||
|
35 |
|||
|
36 |
|||
|
38 |
|||
|
40 |
|||
|
42 |
260.365 |
30-120 |
0.04-0.06 |
|
45 |
|||
|
48 |
|||
|
50 |
|||
|
52 |
270.370
|
30-120 |
|
|
54 |
|||
|
55 |
|||
|
58 |
270.370 |
30-120 |
0.04-0.06 |
|
60 |
|||
|
62 |
|||
|
65 |
|||
|
70 |
|||
|
75 |
|||
|
80 |
|||
|
85 |

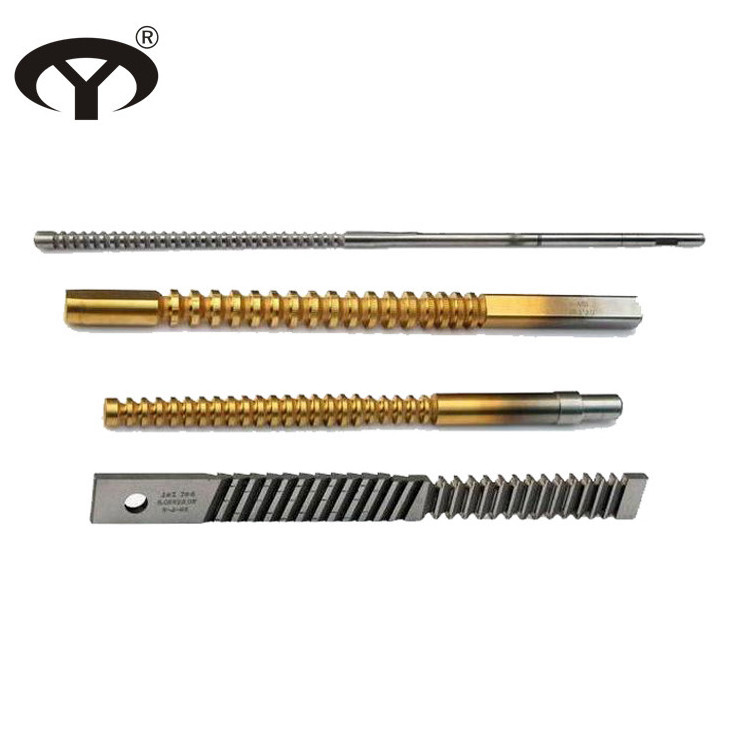

Broaching tool series : Round broach , parallel side spline broach , involute spline broach , hexagonal broach ,square broach ,keyway broach, triangle spline broach and so on.
Material Introduction :
A. W6Mo5Cr4V2 (GB) M2( ASTM), S6-5-2(DIN), SKH51(JIS)
chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80 V 1.85
main application:It is widely used for making all kinds of cutters and durability cold-work die
B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
main application:It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance
W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
We can design and manufacture all kinds of Hobbing Cuttes,Milling Cutters,Reamers,Broaches.ect.as your drawings or work piece samples.The quanlity are guaranteed.
