Quick Details
-
Gemstone Color:
-
Red
-
Gemstone Size:
-
raw material
-
Gemstone Weight:
-
50g
-
Item Height:
-
9
-
color:
-
transparent/ruby/colored
-
usage:
-
semiconductor wafer and optical glass wafer
-
shape:
-
Round Shape
-
Material:
-
synthetic ruby
-
Thickness:
-
1.0-4.0 mm or customized
-
Outer diameter:
-
1.0-5.0 mm or customized
-
Groove depth:
-
customized
Quick Details
-
Certificate Type:
-
CAL
-
Brand Name:
-
Xinkehui
-
Place of Origin:
-
Shanghai
-
Gemstone Color:
-
Red
-
Gemstone Size:
-
raw material
-
Gemstone Weight:
-
50g
-
Item Height:
-
9
-
color:
-
transparent/ruby/colored
-
usage:
-
semiconductor wafer and optical glass wafer
-
shape:
-
Round Shape
-
Material:
-
synthetic ruby
-
Thickness:
-
1.0-4.0 mm or customized
-
Outer diameter:
-
1.0-5.0 mm or customized
-
Groove depth:
-
customized
Product Description
|
Polishing Specification for Laser Grade
|
|
|
|
Orientation Tolerence
|
<0.5°
|
|
|
Thickness/Diameter Tolerance
|
±0.05 mm
|
|
|
Parallel
|
10''
|
|
|
Perpendicular
|
5'
|
|
|
surface Quality
|
10/5
|
|
|
Wavefront Distortion
|
λ/4@632nm
|
|
|
Surface Flatness
|
λ/8@632nm
|
|
|
Clear Aperture
|
>90%
|
|
|
Chamfer
|
<0.2×45°
|
|
|
Maximum dimensions
|
dia 120mm
|
|
Highly frequency Ti+ doped (Titanium doped)sapphire single crstal used in laser/Ti Al2O3 Crystal for laser machine,Titanium doped
Sapphire,color sapphire crystal glass lens,s,Ruby optical glass,Titanium sapphire optical lens,Titanium sapphire laser
crystals,ruby glass ball...
---------------------------------Related Products Recommend
---------------------------------
Shanghai Xinkuhui New Material Co. Ltd. professional in the area of all kind of semiconductor crystal
（GaN; SiC; Sapphire; GaAs; InP; Silicon; MgO, LT/LN; etc.)
if you are interested, your are welcome to visit our channel
（GaN; SiC; Sapphire; GaAs; InP; Silicon; MgO, LT/LN; etc.)
if you are interested, your are welcome to visit our channel
>>>
Shanghai Xinkehui New Material
<<<
Specification
|
Materials
|
Ti:Sapphire
|
|
Nd Concentration tolerance (wt%)
|
0.05-0.35wt% Ti2O3
|
|
Orientation
|
A-Axis within 5° / E-vector parallel to C-Axis
|
|
End Configuration
|
flat/flat or Brewster/Brewster ends
|
|
Absorption Coefficence
|
0.5~6.0cm-1
|
|
Figure of Merit
|
100~300
|
|
Coatings
|
Standard coating is BBAR with R < 5.0% each face at 532 nm and R < 0.5% each face, 650 nm to 850 nm. Other coatings available
|

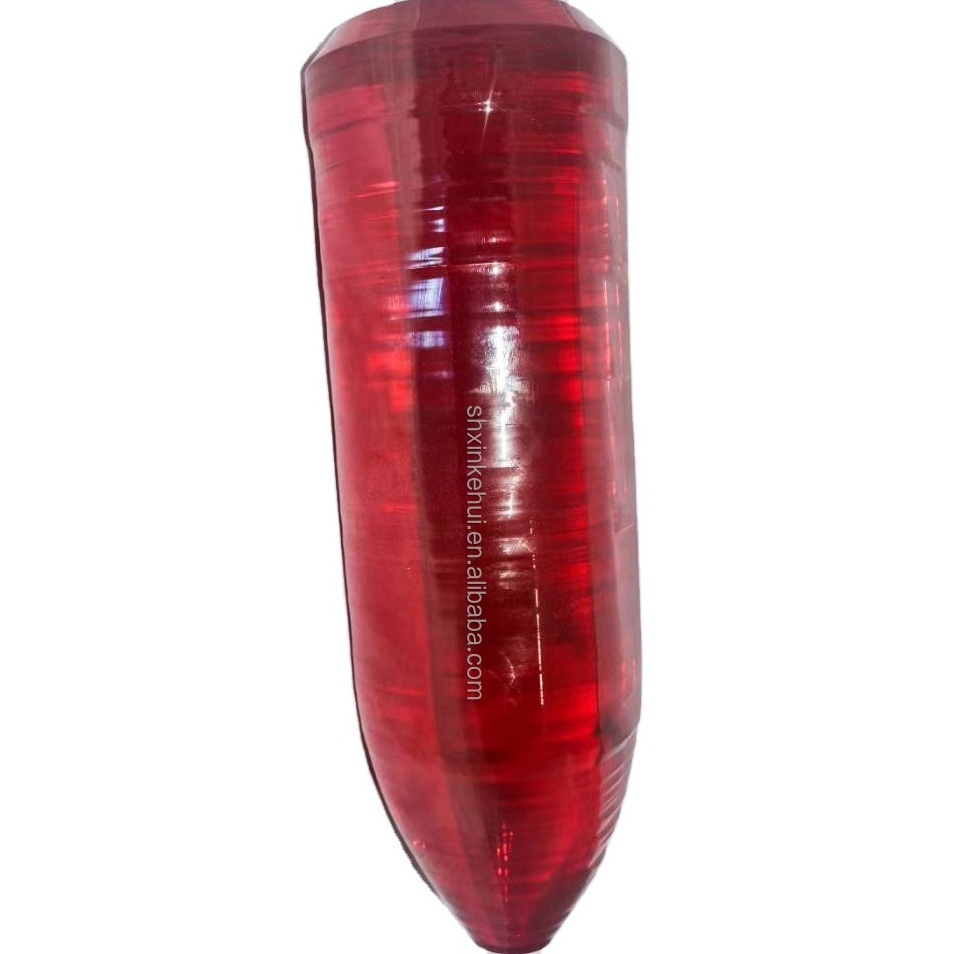

Ruby doped sapphire pictures
>>>we also can supply the blue, green, yellow, red and other color doped sapphire<<<
