Quick Details
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
9A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOASIS
-
Model Number:
-
QCX2-09 with light
-
Current Range::
-
7A-10A
-
Frequency::
-
50Hz/60Hz
-
Coil Voltage::
-
AC230V240V380V400V415V440V OptionalV
-
Model of Contactor::
-
CJX2-09
-
Model of Thermal Relay::
-
JR28-33
-
Push button::
-
Start (Green) Stop (Red)
-
Box Material::
-
Plastic
-
Cover Material::
-
Plastic
-
Made in ::
-
China
-
AC200-240V Rated Power:
-
2.2kW/3HP
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
9A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOASIS
-
Model Number:
-
QCX2-09 with light
-
Current Range::
-
7A-10A
-
Frequency::
-
50Hz/60Hz
-
Coil Voltage::
-
AC230V240V380V400V415V440V OptionalV
-
Model of Contactor::
-
CJX2-09
-
Model of Thermal Relay::
-
JR28-33
-
Push button::
-
Start (Green) Stop (Red)
-
Box Material::
-
Plastic
-
Cover Material::
-
Plastic
-
Made in ::
-
China
-
AC200-240V Rated Power:
-
2.2kW/3HP
|
Product Brand:
|
AOASIS
|
Product Name:
|

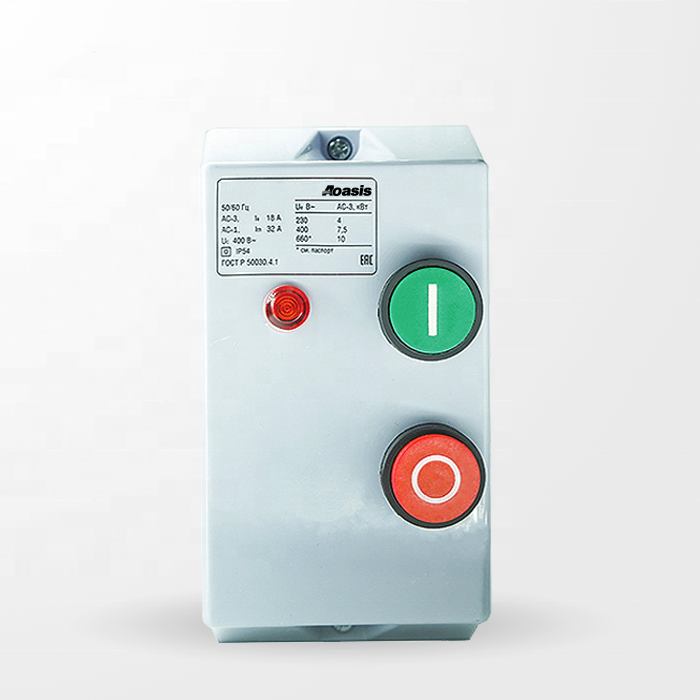

Magnetic Starter
|
||
|
Product Type:
|
QCX2-9
|
Protection Grade:
|
IP54
|
||
|
Temperature:
|
-5~+40℃
|
Altitude Range：
|
Not exceed 2000m
|
||
|
Application:
|
Control various motors and distribution circuits
|
|
|
||
|
Mounting Condition：
|
The inclination between the mounting plane and the vertical plane shall not exceed 5°
|
|
|
||
Application Range
QCX2-□□series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.
Type and Signification
Application Condition
Altitude:
not exceed 2000m
Temperature:
-5℃~+40℃, average not exceed +35℃ in 24 hours.
Air Condition:
At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature.
Pollution Grade:
Grade III.
Mounting Condition:
The inclination between the mounting plane and the vertical plane shall not exceed 5°.
The product shall be installed and operated at a place without obvious shake, impact and vibration.
Dimensional Drawing
Technical Parameters
Front View
Side View
Vertical View
Back View
Vertical
View
Internal Structure Diagram
