Quick Details
-
Finishing:
-
Not Coated
-
Feature:
-
Heavy Duty, Mini
-
earth digging tools model:
-
HY380
-
Engine power:
-
23HP
-
Engine:
-
Briggs & Stratton Engine
-
Operation Weight:
-
890kg
-
Operating Load:
-
200kg
-
Bucket capacity:
-
0.15m3
-
Attachments:
-
digger, backhoe, fork,grapple,trencher,lown mower,auger drill .etc
-
Color:
-
Yellow or Customize
-
Warranty:
-
1 year
-
Engine Warranty:
-
3 years
Quick Details
-
Place of Origin:
-
China
-
Digging Tool Type:
-
Garden Spades
-
Material:
-
Metal
-
Finishing:
-
Not Coated
-
Feature:
-
Heavy Duty, Mini
-
earth digging tools model:
-
HY380
-
Engine power:
-
23HP
-
Engine:
-
Briggs & Stratton Engine
-
Operation Weight:
-
890kg
-
Operating Load:
-
200kg
-
Bucket capacity:
-
0.15m3
-
Attachments:
-
digger, backhoe, fork,grapple,trencher,lown mower,auger drill .etc
-
Color:
-
Yellow or Customize
-
Warranty:
-
1 year
-
Engine Warranty:
-
3 years
Modern earth digging tools multi-purpose mini skid steer loader hy380
Parameters
CLICK HERE TO CONTACT
|
1)Size |
|
|
Dimension(L*W*H) |
2206 mm * 1160 mm * 1233 mm |
|
Length |
2206mm |
|
Width |
1160mm |
|
Height |
1233mm |
|
Bucket W idth (K) |
115 0 mm |
|
Max Working Height |
2143 mm |
|
Max Dumping Height |
1488mm |
|
Max Dumping Distance |
348mm |
|
Total Length without Bucket |
1752mm |
|
Turn Radius forward Turning |
1307mm |
|
2)Engine |
|
|
Rated P ower (KW) |
17.1KW |
|
Rotating S peed |
3600rpm |
|
Noise(Dd) |
≤95 |
|
3)Hydraulic S ystem |
|
|
Pressure |
17Mpa |
|
Operating L oad |
200kg |
|
Bucket C apacity |
0.15m³ |
|
Max L ifting F orce |
375kg |
|
Travel S peed |
0-5.5km/h |
|
W eight |
890kg |
|
4) Configuration |
|
|
Engine |
23hp American Briggs& Stratton gasoline engine, 3 year international warranty service. |
|
Parts |
Imported Italy hydrocontrol valves; |
|
Tires |
With engineering tires. Optional: Solid tires, grass tires and Track(crawler) Type. |
|
Optional Configuration |
Italy joystick system, three pump & valves for optional; Diesel engine for optional |
|
Operating |
With a back pedal plate |
Features
Operation:
1) Two handles to achieve operation of working, lifting and dumping.
2) 4 wheels drive, suitable for various environment.
3) Safe pedal, stand operating way.
4) 360° pivot steering. Save space, Flexible and operating easily.
5) Compact design can for any small space working.
6) Quick hitch system makes fastening attachments quickly and eaily.
7) A loader serves several functions. Hy380 can with various attachment for different working need.
Quick hitch system, attachments can be changed quickly and easily.
8) Compare with same kind of products, hy380 mini loader is with higher lifting height.
Easy maintenance:
1) Easy to put oil and replace Air filter, filter, spark plug, etc.
2) Back shrouds can be took easily, parts can be checked by opening upper canopy.
Wheel type and track type for optional, HY380 has
track type,
suitable for soft and muddy etc environment working, also can equipped with
Joystick control.

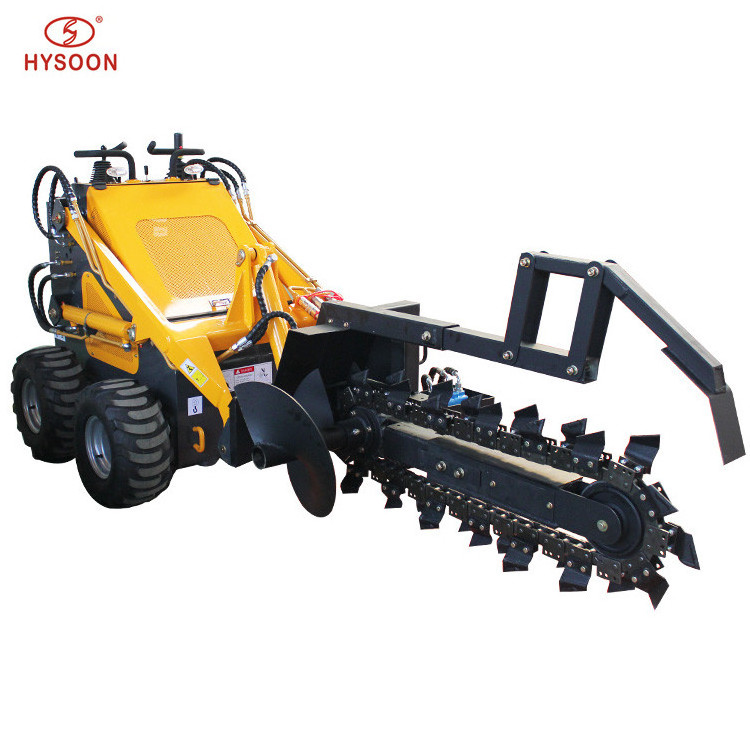

HY380 Mini Skid Steer Loader with digger etc various attachments
A loader serves several purposes, with a quick hitch system,the HYY380 mini skid steer loader digging machine can change various attachments for more functions quickly and eaily. Attachments:
backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,
4 in 1 bucket,
snow blower,
leveler, mixer,
lawn aerator, trench filler,
trencher,grapple,,auger,stonr bucket,
auger levers,
standard bucket, trailer system, and so on.
CLICK HERE TO CONTACT
Usage:
Land sorting, Garden, Snow removal, Mining, Landscaping, Construction, Dairy industry,
Farm, Livestock farm , Waste(animal waste, municipal solid waste, life garbage) removal,
ditching, truck loading ,tree planting and so on.
