Quick Details
-
Dimension(L*W*H):
-
4100*1800*2160mm
-
Keywords:
-
mini truck concrete mixer 3 cubic meter
-
Drum mixing capacity:
-
3m3
-
Application:
-
Construction Industry
-
Drum material:
-
Q345B
-
Feature:
-
Easy Operation
-
Loading speed:
-
6m³/min
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Front and rear axles:
-
1068 Rear Axle
-
Rear Tire:
-
750-16
-
Color:
-
As request
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QIC
-
Weight:
-
1400 kg
-
Dimension(L*W*H):
-
4100*1800*2160mm
-
Keywords:
-
mini truck concrete mixer 3 cubic meter
-
Drum mixing capacity:
-
3m3
-
Application:
-
Construction Industry
-
Drum material:
-
Q345B
-
Feature:
-
Easy Operation
-
Loading speed:
-
6m³/min
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Front and rear axles:
-
1068 Rear Axle
-
Rear Tire:
-
750-16
-
Color:
-
As request
Product Overview
New small 2m3 3 cubic meters mini truck concrete mixer 3 cubic meter with drum for sale

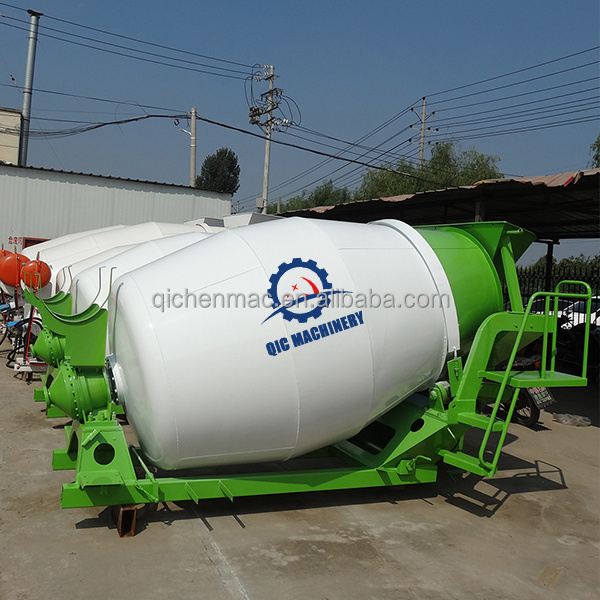

Product description of QIC concrete mixing drum ：
Hydraulic system : famous brand Sunny, the structure is simple and reliable.
Water supply system : It supplies water by pressure, which saves the labor intensity and reduces the car weight.
Mixing drum : It is pear shaped and has dual helical blades, which improves the concrete quality; The installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive to the clean discharge of the concrete.
Control device : It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.
Hydraulic system : famous brand Sunny, the structure is simple and reliable.
Water supply system : It supplies water by pressure, which saves the labor intensity and reduces the car weight.
Mixing drum : It is pear shaped and has dual helical blades, which improves the concrete quality; The installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive to the clean discharge of the concrete.
Control device : It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.
PRODUCT SPECIFICATIONS
|
1
|
Geometric volume of tank
|
3m3
|
|
2
|
Mixing volume
|
3m3
|
|
3
|
Fill rate
|
65%
|
|
4
|
Installation size
|
800*3300mm
|
|
5
|
Water tank volume
|
300L
|
|
6
|
Drum material
|
Q345B
|
|
7
|
Hydraulic motor and pump
|
BMT30-125
|
|
8
|
Dimensions
|
4100*1800*2160mm
|
