Quick Details
-
Brand Name:
-
Yogel / OEM
-
Product name:
-
250um Bare Fiber Splitter
-
Application:
-
FTTX Network
-
Fiber Type:
-
Single Mode Single Fiber
-
Fiber Diameter:
-
250μm
-
Fiber Length:
-
1.0M
-
Operating temperature:
-
40~+85
-
Insertion loss:
-
PC/UPC/APC< 0.2dB
-
Return Loss:
-
50dB
-
Package:
-
1 Pcs /box
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
250 um bare fiber splitter
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yogel / OEM
-
Product name:
-
250um Bare Fiber Splitter
-
Application:
-
FTTX Network
-
Fiber Type:
-
Single Mode Single Fiber
-
Fiber Diameter:
-
250μm
-
Fiber Length:
-
1.0M
-
Operating temperature:
-
40~+85
-
Insertion loss:
-
PC/UPC/APC< 0.2dB
-
Return Loss:
-
50dB
-
Package:
-
1 Pcs /box
Product Description

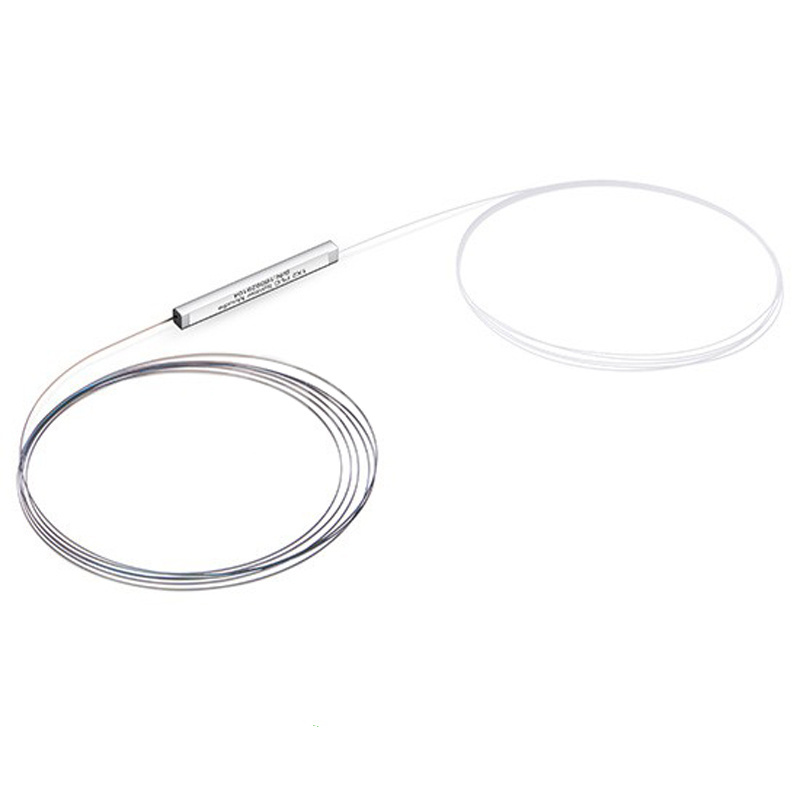

1x2 1x4 1x8 1x32 1x64 PLC Splitter Steel Tube 250um Bare Fiber Splitter Without Connector
The YOGEL bare fiber PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with bare fiber package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized bare fiber PLC splitters to meet different requirements on port configuration, input fiber type, input fiber length, output fiber type, output fiber length, input connector, and output connector.
Features
Low Insertion Loss (IL)
High isolation
Low Polarization Dependent Loss (PDL)
Compact design
Wide operating wavelength range
Good channel-to-channel uniformity
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
YD/T-1272Q compliant
Q/CT-2295 compliant
RoHS-6 compliant (lead free)
High isolation
Low Polarization Dependent Loss (PDL)
Compact design
Wide operating wavelength range
Good channel-to-channel uniformity
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
YD/T-1272Q compliant
Q/CT-2295 compliant
RoHS-6 compliant (lead free)
Applications
FTTH systems
PON networks
CATV links
Communication Equipment
PON networks
CATV links
Communication Equipment
Specification
|
Parameters
|
1×N Bare Fiber PLC Splitters
|
|
|
|
|
|
|||||
|
Operating Wavelength (nm)
|
1260~1650
|
|
|
|
|
|
|||||
|
Port Configuration
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
|||||
|
Max Insertion Loss (dB) (P/S Grade)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/14.7
|
16.5/16.9
|
20.5/21.0
|
|||||
|
Max Loss Uniformity (dB)
|
0.6
|
0.7
|
0.8
|
1.2
|
1.5
|
2.0
|
|||||
|
Max PDL (dB)
|
0.2
|
|
|
0.25
|
|
0.35
|
|||||
|
Min Return Loss (dB)
|
55
|
|
|
|
|
|
|||||
|
Min Directivity (dB)
|
55
|
|
|
|
|
|
|||||
|
Max Wavelength Dependent Loss (dB)
|
0.5
|
|
|
0.8
|
|
1.0
|
|||||
|
Max Temperature Stability (dB)
|
0.5
|
|
|
|
|
|
|||||
|
Operating Temperature (℃)
|
-5~75
|
|
|
|
|
|
|||||
|
Storage Temperature (℃)
|
-40~85
|
|
|
|
|
|
|||||
|
Device Dimension L×W×H (mm)
|
40×4×4
|
|
|
50x4x4
|
50x7x4
|
60x12x4
|
|||||
Packing & Delivery
Packing:packed in standard export cartons ,or as customers' requirment
