Quick Details
-
Dimension(L*W*H):
-
9500 x 3000 x 1850mm
-
Weight (KG):
-
4000
-
Power (kW):
-
32
-
Product name:
-
Automatic Spring Coiling Machine
-
Name:
-
Mechanical Sofa Spring Coiling Machine
-
Machine Type:
-
Bending Machine
-
Usage:
-
Compression Spring
-
Application:
-
Spring Making
-
Raw Material:
-
Steel Wire
-
Max. productivity:
-
200peaks/min
-
Work efficiency:
-
45pcs/min
-
Spring height:
-
100-160mm
-
Spring pitch available:
-
20~50mm
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SOFTLIFE
-
Voltage:
-
CUSTOM
-
Dimension(L*W*H):
-
9500 x 3000 x 1850mm
-
Weight (KG):
-
4000
-
Power (kW):
-
32
-
Product name:
-
Automatic Spring Coiling Machine
-
Name:
-
Mechanical Sofa Spring Coiling Machine
-
Machine Type:
-
Bending Machine
-
Usage:
-
Compression Spring
-
Application:
-
Spring Making
-
Raw Material:
-
Steel Wire
-
Max. productivity:
-
200peaks/min
-
Work efficiency:
-
45pcs/min
-
Spring height:
-
100-160mm
-
Spring pitch available:
-
20~50mm
-
Certification:
-
CE

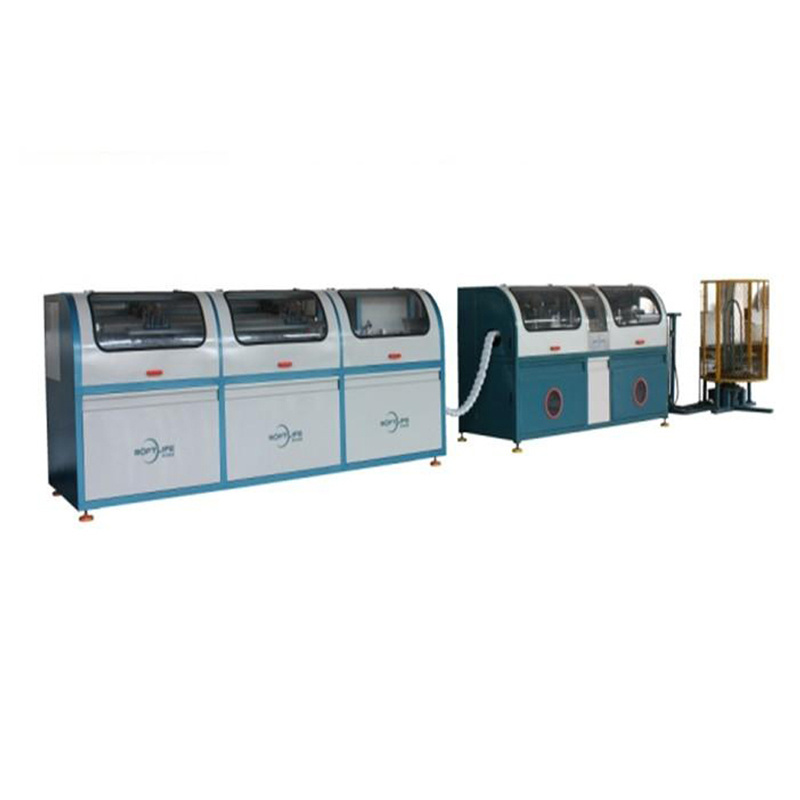

Auto Pocket Spring Production Line
Mattress Making machinery Auto pocket spring production line (Automatic Spring Coiling Machine) is made up of SL-12P Pocket spring machine and SL-08A Auto pocket spring assembling machine.
- Adopted automatic technique , it can finish all the process of production from pocket spring to mattress.
- Its advantage: easy to operate,high efficiency and lower noise.
- T he production line is compact so it can reduce the impropriate space in the workshop. Compare to other pocket spring production line, our machine has a fairly high cost performance.
- The production line is controlled by servo motor , so it will be accurate and fluent with high stability.
- The control parameter can be setting by customer for the diversification demand.
- Auto stop when run out materials. (With CE certificate)
Technical Specificatio n:
|
Part of machine |
SL-12P + SL -08A |
|
Product efficiency |
70 coils / min |
|
Spring diameter |
End 45-60mm ; Center 60-80mm |
|
Spring height |
80 -120mm / 120-180mm / 160-220mm |
|
Steel wire diameter |
1.8-2.2mm |
|
Top and bottom non-woven |
With and without |
|
Max. Power |
32KW |
|
Space dimension (L x W x H) |
9500 x 3000 x 1850mm |
|
Weight |
4000kgs |
