- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Type:
-
Swing gate opener
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
carin
-
Model Number:
-
L6
-
Product name:
-
Swing Arms Motor Operator
-
Power supply:
-
220V/AC 110V/AC 50/60Hz
-
Usage:
-
Double Leaves Swing Gate Opener
-
Limit Switch:
-
Magnetic Limit Switch
-
Material:
-
Aluminum Alloy
-
Certificate:
-
CE Approved
-
Color:
-
Grey
-
Protection Class:
-
IP45
-
Advantage:
-
Waterproof
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Villa
-
Type:
-
Swing gate opener
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
carin
-
Model Number:
-
L6
-
Product name:
-
Swing Arms Motor Operator
-
Power supply:
-
220V/AC 110V/AC 50/60Hz
-
Usage:
-
Double Leaves Swing Gate Opener
-
Limit Switch:
-
Magnetic Limit Switch
-
Material:
-
Aluminum Alloy
-
Certificate:
-
CE Approved
-
Color:
-
Grey
-
Protection Class:
-
IP45
-
Advantage:
-
Waterproof
Products Description
L6 FEATURE

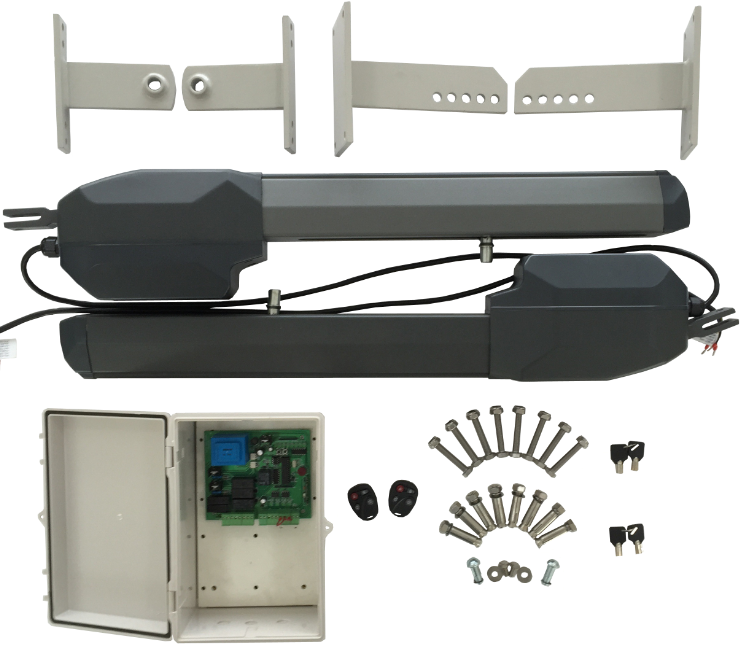

Details Images
CARIN Gate Opener APP
1.Open the gate via mobile WIFI
2.Auto-learning work- cycle
3.Adjust the gate opener parameters on the mobile phone
4.Observe the gate situation in real time through the monitor
5.Share permissions with others to open and close the gate, learn programming and set parameters
Product Paramenters
|
Model
|
L6-AC-400
|
L6-AC-600
|
|
Power Supply
|
AC110/220
|
AC110/220
|
|
Motor
|
110/220
|
110/220
|
|
Current
|
2A/1A
|
2A/1A
|
|
Absorbed Power
|
220W
|
220W
|
|
Max leaf Length
|
3M
|
4M
|
|
Max leaf Weight
|
500KGS
|
500KGS
|
|
Open Speed
|
1.6CM/S
|
1.6CM/S
|
|
Thrust
|
3000N
|
3000N
|
|
Stroke
|
400MM
|
600MM
|
|
Working Temp.
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Duty
|
40%
|
40%
|
|
Protection Class
|
IP45
|
IP45
|
|
Capacitor
|
25uf/8uf
|
25uf/8uf
|
|
Open Angle
|
0~120
|
0~120
|
|
Limit Switch
|
Limit Switch
|
Limit Switch
|
