Quick Details
-
Brand Name:
-
SPOM
-
Dimension(L*W*H):
-
According to product
-
Weight:
-
30000 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mobile Crushing and Screening Plant Complex for Crushed Stone and Sand
-
Installation:
-
guide by our engineer
-
Spare parts supply:
-
Will Supply Any Time
-
Processed Materials:
-
All kinds of stone and mineral
-
Max feeding size:
-
500mm
-
Output size:
-
10-60mm
-
Keyword:
-
Portable Stone Crusher
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Application:
-
Mining, Quarry, Construction
-
Capacity(t/h):
-
50-300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SPOM
-
Dimension(L*W*H):
-
According to product
-
Weight:
-
30000 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mobile Crushing and Screening Plant Complex for Crushed Stone and Sand
-
Installation:
-
guide by our engineer
-
Spare parts supply:
-
Will Supply Any Time
-
Processed Materials:
-
All kinds of stone and mineral
-
Max feeding size:
-
500mm
-
Output size:
-
10-60mm
-
Keyword:
-
Portable Stone Crusher
-
After-sales Service Provided:
-
Video technical support

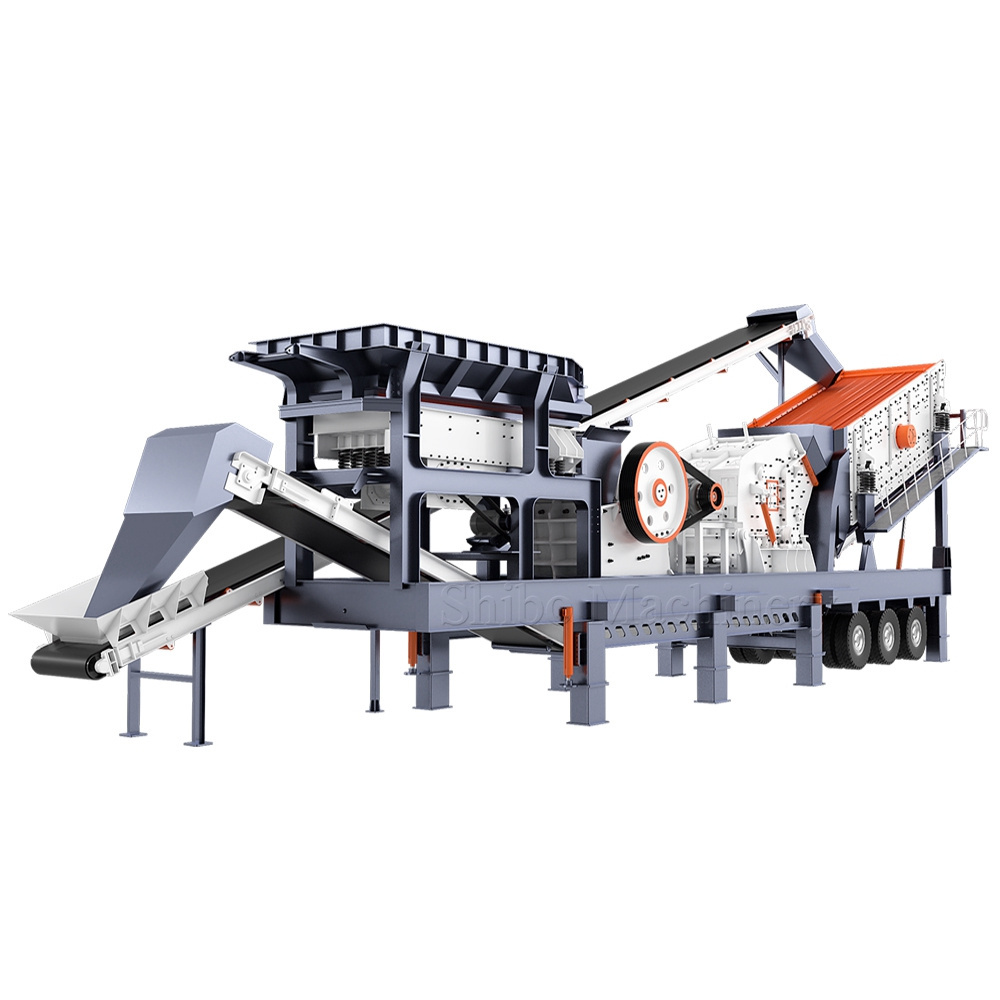

Mobile Crushing and Screening Plant Complex for Crushed Stone and Sand
Product Description
Mobile stone crushers are track-mounted or wheel-mounted rock crushing machines that are easily movable on and between production sites. They are widely used in aggregates production, recycling applications, and in mining operations. Mobile crushers can replace stationary crushing systems, which reduces the need for hauling and thus cuts operational costs.
Mobile Crushing Plant Types
We engineer a wide range of mobile crushers and screens, both tracked and wheeled, to help you process rock in the toughest conditions. This selection includes jaw crushers, impactors, cone crushers, screens and scalpers for quarrying and rock excavation projects.
Mobile jaw crusher
Primary crusher , max input size 750mm, capacity 5-400t/h
Mobile cone crusher
Secondary crusher , max input size 450mm, output size :0-40mm adjustable , capacity : 50-300t/h
Mobile impact crusher
Secondary crusher , max input size 500mm, output size :0-40mm adjustable , capacity : 50-250t/h
Mobile Sand maker
Vertical shaft impact crusher , also called sand making machine , max input size 50mm, output size 0-5mm, capacity 10-150t/h
Vibrating feeder + jaw crusher + vibrating screen
Max input size 250mm, output size :0-40mm adjustable , capacity : 0-50t/h
Vibrating feeder + jaw crusher + cone crusher + vibrating screen
Max input size 425mm, output size :0-40mm adjustable , capacity : 40-80t/h
Vibrating feeder + jaw crusher + tertiary impact crusher + vibrating screen
Max feeding size 425mm, normally used for crush soft stone into sand , capacity 30-70t/h
Vibrating feeder + impact crusher + vibrating screen
Max feeding size 400mm, normally used to crush construction waste or medium size stone , produce aggregate and sand , capacity 100-400t/h
The above crusher can also place on the mobile crawler platform , then it have the ability to move itself .
To design a suitable model for you , we need to know
:
1. what kind of stone do you want to crush ? like limestone ? or granite ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
5. do you want the wheel type mobile crusher ? or crawler type ?
Specification
|
Model
|
Standard Model
|
Feeder Model
|
Crusher Model
|
Transportation Dimension (mm)
|
||||
|
Mobile Primary Crushing Plant
|
S-E69
|
ZSW9638
|
PE600×900
|
12150×2600×3950
|
||||
|
|
S-E750
|
ZSW1142
|
PE750×1060
|
13270×2850×4200
|
||||
|
|
S-C96
|
ZSW9638
|
C96
|
12150×2600×3950
|
||||
|
|
S-C106
|
ZSW1142
|
C106
|
13200×3000×4400
|
||||
|
|
S-C116
|
ZSW1349
|
SC116
|
14600×3000×4500
|
||||
|
|
S-L150
|
ZSW9638
|
LF150
|
11000×2000×4000
|
||||
|
|
S-L250
|
ZSW1142
|
LF250
|
13500×2600×4300
|
||||
|
|
S-L350
|
ZSW1349
|
LF350
|
16500×3100×4500
|
||||
|
Mobile Secondary Crushing and Screening Plant
|
|
|
|
|
||||
|
The Standard Model
|
Screener Model
|
Crusher Equipment
|
|
|
||||
|
|
|
Model
|
Feeding Size(mm)
|
Capacity(t/h)
|
||||
|
S-CS75
|
3YZK1848
|
CS75
|
≤160
|
59-163
|
||||
|
S-CS110
|
3YZK1860
|
CS110
|
≤178
|
100-200
|
||||
|
S-CS160
|
3YZK2160
|
CS160
|
≤188
|
132-253
|
||||
|
S-CS220
|
3YZK2160
|
CS220
|
≤230
|
215-330
|
||||
|
S-HQ300
|
3YZK1848
|
SHQ300
|
≤160
|
65-168
|
||||
|
S-HQ400
|
3YZK1860
|
SHQ400
|
≤230
|
105-205
|
||||
|
S-HQ500
|
3YZK2160
|
SHQ500
|
≤240
|
180-290
|
||||
|
S-H420
|
3YZK1848
|
SH420
|
≤240
|
85-170
|
||||
|
S-H430
|
3YZK1860
|
SH430
|
≤360
|
120-345
|
||||
|
S-H440
|
3YZK2160
|
SH450
|
≤450
|
255-605
|
||||
|
S-HP100
|
3YZK1860
|
SHP100
|
≤140
|
75-140
|
||||
|
S-HP200
|
3YZK2160
|
SHP200
|
≤185
|
145-250
|
||||
|
S-HP300
|
3YZK2160
|
SHP300
|
≤230
|
220-440
|
||||
|
S-PF1214
|
3YZK1860
|
PF1214
|
≤300
|
100-200
|
||||
|
S-PF1315
|
3YZK2160
|
PF1315
|
≤350
|
130-280
|
||||
|
S-PF1320
|
3YZK2460
|
PF1320
|
≤500
|
180-400
|
||||
|
S-S1860
|
|
3YZK1860
|
≤400
|
65-586
|
||||
|
S-S2160
|
|
3YZK2160
|
≤400
|
81-720
|
||||
|
S-S2460
|
|
3YZK2460
|
≤400
|
100-810
|
||||
Project Case
The Mobile crusher has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
Company Introduction
As a leading global manufacturer of crushing, grinding and mining equipments, we offer advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant. We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.
Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Customer Visit
FAQ
* How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
* How about price?
We are factory and be able to give you the reasonable price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Get Quote and More info>>>> WhatsApp/WeChat: +86 15617669073
* Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
* How about price?
We are factory and be able to give you the reasonable price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Get Quote and More info>>>> WhatsApp/WeChat: +86 15617669073
* Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.
