Quick Details
-
Brand Name:
-
JAC
-
Fork Length:
-
1150mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
1740*795*1995mm
-
Weight (KG):
-
465 kg
-
Product Name:
-

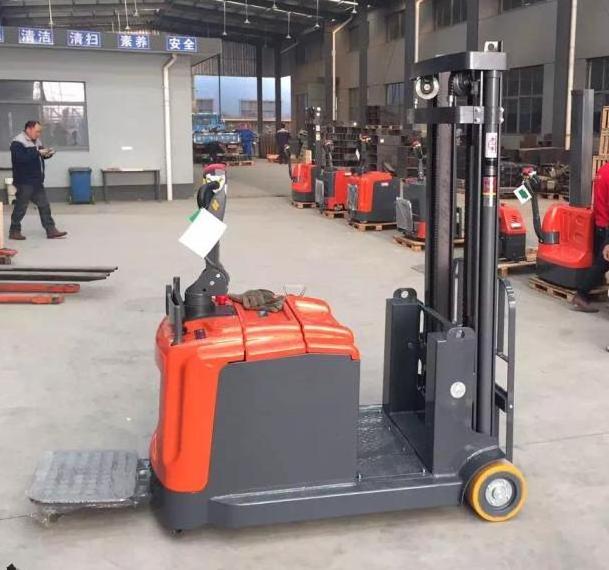

JAC electric stack pallet forklift
-
Power type:
-
electric stacker
-
Name:
-
JAC CDD10 CDD12 CDD13 CDD15 CDD20
-
Loading Capacity:
-
960 kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Brand:
-
JAC
-
Load center distance:
-
600mm
-
Drive mode:
-
standing or walking drive
Quick Details
-
Min. Lifting Height:
-
1995mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JAC
-
Fork Length:
-
1150mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
1740*795*1995mm
-
Weight (KG):
-
465 kg
-
Product Name:
-
JAC electric stack pallet forklift
-
Power type:
-
electric stacker
-
Name:
-
JAC CDD10 CDD12 CDD13 CDD15 CDD20
-
Loading Capacity:
-
960 kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Brand:
-
JAC
-
Load center distance:
-
600mm
-
Drive mode:
-
standing or walking drive
Product Description
We are professional in forklift
|
Characteristics
|
1.1
|
Manufacturer
|
Unit
|
JAC
|
|
|
|
|
|
|||||
|
|
1.2
|
Model
|
|
CDD15
|
|
|
|
|
|
|||||
|
|
1.3
|
Power unit
|
|
electric
|
|
|
|
|
|
|||||
|
|
1.4
|
Operation
|
|
pedestrian
|
|
|
|
|
|
|||||
|
|
1.5
|
Rated traction weight
|
kg
|
1000
|
|
|
|
|
|
|||||
|
|
1.6
|
Load center distance
|
mm
|
600
|
|
|
|
|
|
|||||
|
Weights
|
2.1
|
Service weight
|
kg
|
425
|
437
|
451
|
465
|
510
|
540
|
|||||
|
Wheels
|
3.1
|
Wheels type
|
|
PU
|
|
|
|
|
|
|||||
|
Dimensions
|
4.1
|
The max. lifting height
|
mm
|
1600
|
2000
|
2500
|
3000
|
3500
|
4000
|
|||||
|
|
4.2
|
Load capacity on Max. height
|
kg
|
1000
|
900
|
800
|
700
|
500
|
300
|
|||||
|
|
4.3
|
Extended mast height
|
mm
|
2014
|
2452
|
2952
|
3452
|
3952
|
4147
|
|||||
|
|
4.4
|
Lowered mast height
|
mm
|
2014
|
1495
|
1745
|
1995
|
2245
|
2495
|
|||||
|
|
4.5
|
Lowered fork height
|
mm
|
86
|
|
|
|
|
|
|||||
|
|
4.6
|
Overall length
|
mm
|
1740
|
|
|
|
|
|
|||||
|
|
4.7
|
Overall width
|
mm
|
795
|
|
|
|
|
|
|||||
|
|
4.8
|
Overall fork width
|
mm
|
570/695
|
|
|
|
|
|
|||||
|
|
4.9
|
Fork length
|
mm
|
1150
|
|
|
|
|
|
|||||
|
|
4.10
|
Single fork width
|
mm
|
160
|
|
|
|
|
|
|||||
|
|
4.11
|
Aisle width for pallets 1000×1200 cross ways
|
mm
|
2074
|
|
|
|
|
|
|||||
|
|
4.12
|
Aisle width for pallets 800×1200 length ways
|
mm
|
2040
|
|
|
|
|
|
|||||
|
|
4.13
|
Turning radius
|
mm
|
1336
|
|
|
|
|
|
|||||
|
|
4.14
|
Fixed leg length
|
mm
|
928
|
|
|
|
|
|
|||||
|
|
4.15
|
Single fixed leg width
|
mm
|
124
|
|
|
|
|
|
|||||
|
|
4.16
|
Outside width between fixed legs
|
mm
|
534/659
|
|
|
|
|
|
|||||
|
Performance
|
5.1
|
Travel speed,laden/unladen
|
km/h
|
4.0/4.2
|
|
|
|
|
|
|||||
|
|
5.2
|
Lifting speed, with/without load
|
mm/s
|
92/136
|
|
|
|
|
|
|||||
|
|
5.3
|
Service brake
|
|
electromagnetic braking
|
|
|
|
|
|
|||||
|
Drive
|
6.1
|
Drive motor, 60 minute rating
|
kW
|
0.75
|
|
|
|
|
|
|||||
|
|
6.2
|
Lift motor rating at S3 15%
|
kW
|
2.2
|
|
|
|
|
|
|||||
|
|
6.3
|
Battery according to DIN 43531/35/36 A,B,C,no
|
|
no
|
|
|
|
|
|
|||||
|
|
6.4
|
Battery voltage
|
V/Ah
|
2×12V/100AH
|
|
|
|
|
|
|||||
|
Others
|
7.1
|
Type of drive control
|
|
DC power
|
|
|
|
|
|
|||||
|
|
7.2
|
Noise level at operator's ear
|
dB(A)
|
69
|
|
|
|
|
|
|||||
|
|
7.3
|
Steering type
|
|
Mechanical steering
|
|
|
|
|
|
|||||
