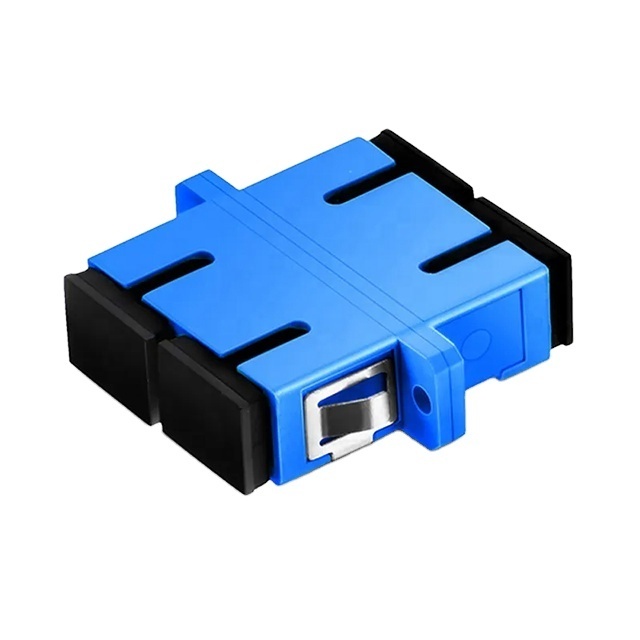

VCOM SC Fiber Optical Adapter For Optical Communication System Standard Field Mountng Fiber Coupler with Flanges Interface

VCOM SC Fiber Optical Adapter For Optical Communication System Standard Field Mountng Fiber Coupler with Flanges Interface

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.16

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TH

Use:: FTTX

Warranty Time:: 5 YEARS

Model Number::: SC-SC

Use::: FTTx Solutions, FTTX

Insertion Loss::: IL<0.2dB

Color::: Blue

Return Loss::: RL>50dB

Storage temperature::: -45-85°c

Quick Details

Type:: Fiber opitc adapter

Model Number:: SC-SC

Place of Origin:: Shanghai, China

Brand Name:: TH

Use:: FTTX

Warranty Time:: 5 YEARS

Model Number::: SC-SC

Use::: FTTx Solutions, FTTX

Insertion Loss::: IL<0.2dB

Color::: Blue

Return Loss::: RL>50dB

Storage temperature::: -45-85°c

Product Overview

VCOM SC Fiber Optical Adapter For Optical Communication System Standard Field Mountng Fiber Coupler with Flanges Interface

* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Precision anti-rotation key and corrosion resistant body
* UL-rated plastic housing
* Telcordia style boots
* Free-floating ceramic ferrule
* Zirconia sleeves or Phosphor bronze sleeves
* D-shaped easily installs into panel mount
* RoHS compliant

FEATURES AT A GLANCE

ameter	Unit	LC, SC, FC, ST
				SM				MM
				PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85

Applications:

* Fiber Optic Telecommunications
* LAN (Local Area Network)
* FTTH (Fiber To The Home)
* CATV&CCTV System
* High speed transmission systems
* Fiber optic sensing
* Industtial, Mechanical and Military
