Quick Details
-
Model Number:
-
SYD-17040A
-
Name:
-
Sulfur Content X-ray Fluorescence Sulfur-in-Oil Analyzer
-
Measuring Range:
-
0.005%~5%
-
Repeatability (r):
-
<0.4347 X0.6446
-
Reproducibility (R):
-
<1.9182 X0.6446
-
Detection limit:
-
50 ppm
-
Oil sample quantity:
-
3 ml-5ml
-
Ambient temperature:
-
(10~30)℃
-
Relative humidity:
-
(9)≤85% (30℃)
-
Dimension:
-
480mm*380mm*140mm
-
Weight:
-
13kg.(Net weight)
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FAITHFUL
-
Model Number:
-
SYD-17040A
-
Name:
-
Sulfur Content X-ray Fluorescence Sulfur-in-Oil Analyzer
-
Measuring Range:
-
0.005%~5%
-
Repeatability (r):
-
<0.4347 X0.6446
-
Reproducibility (R):
-
<1.9182 X0.6446
-
Detection limit:
-
50 ppm
-
Oil sample quantity:
-
3 ml-5ml
-
Ambient temperature:
-
(10~30)℃
-
Relative humidity:
-
(9)≤85% (30℃)
-
Dimension:
-
480mm*380mm*140mm
-
Weight:
-
13kg.(Net weight)
Product Description

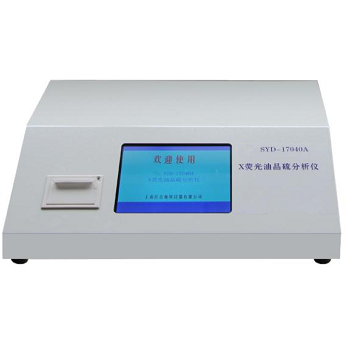

X-ray Fluorescence Sulfur-in-Oil Analyzer
The instrument is specially designed to determine sulfur content in the petroleum products. Adopts
energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of national standard of China GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294. It provides a measure to determine sulfur content during petroleum or petrochemical production process.
energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of national standard of China GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294. It provides a measure to determine sulfur content during petroleum or petrochemical production process.
Features
1. The latest research results of GB/T 17040 in 2019, it is an update to SYD-17040.
3. Mechanical and electrical integration microcomputer design, 8-inch wide angle colored touch screen, simple and beautiful interface.
4. With the method of fluorescence intensity ratio analysis, the temperature and air pressure can be automatically corrected, and the C / H ratio can also be corrected.
5. It has the function of automatic diagnosis, automatic judgment of the working state of the instrument and automatic detection of working parameters.
6. The working curve is automatically selected by default when the instrument is turned on, without user intervention.
7. The unit of measurement result can be selected, ppm or (m / m)%.
2. Few samples are used for testing.(3ml-5ml), the detection time is fast (1min ~ 5min), and the detection result is stable, accurate and reliable.
3. Mechanical and electrical integration microcomputer design, 8-inch wide angle colored touch screen, simple and beautiful interface.
4. With the method of fluorescence intensity ratio analysis, the temperature and air pressure can be automatically corrected, and the C / H ratio can also be corrected.
5. It has the function of automatic diagnosis, automatic judgment of the working state of the instrument and automatic detection of working parameters.
6. The working curve is automatically selected by default when the instrument is turned on, without user intervention.
7. The unit of measurement result can be selected, ppm or (m / m)%.
Specification
|
Model
|
SYD-17040A
|
|
Measuring range
|
0.005%～5%
|
|
Repeatability (r)
|
＜0.4347 X0.6446
|
|
Reproducibility (R)
|
＜1.9182 X0.6446
|
|
Detection limit
|
50 ppm
|
|
Oil sample quantity
|
3 ml-5ml
|
|
Measurement time
|
it can preset 30, 60, 90, 120, 150s
|
|
measurement repeat times
|
1, 2, 3, 5, 10(times)
|
|
Sample measurement
|
Automatic measurement of single sample, average value and standard deviation at the end of measurement.
|
|
Calibration curve numbers
|
it can save 10 calibration curves
|
|
Ambient temperature
|
(10～30)℃
|
|
Relative humidity
|
≤85% (30℃)
|
|
Dimension
|
480mm×380mm×140mm
|
|
Weight
|
13kg.(Net weight)
|
