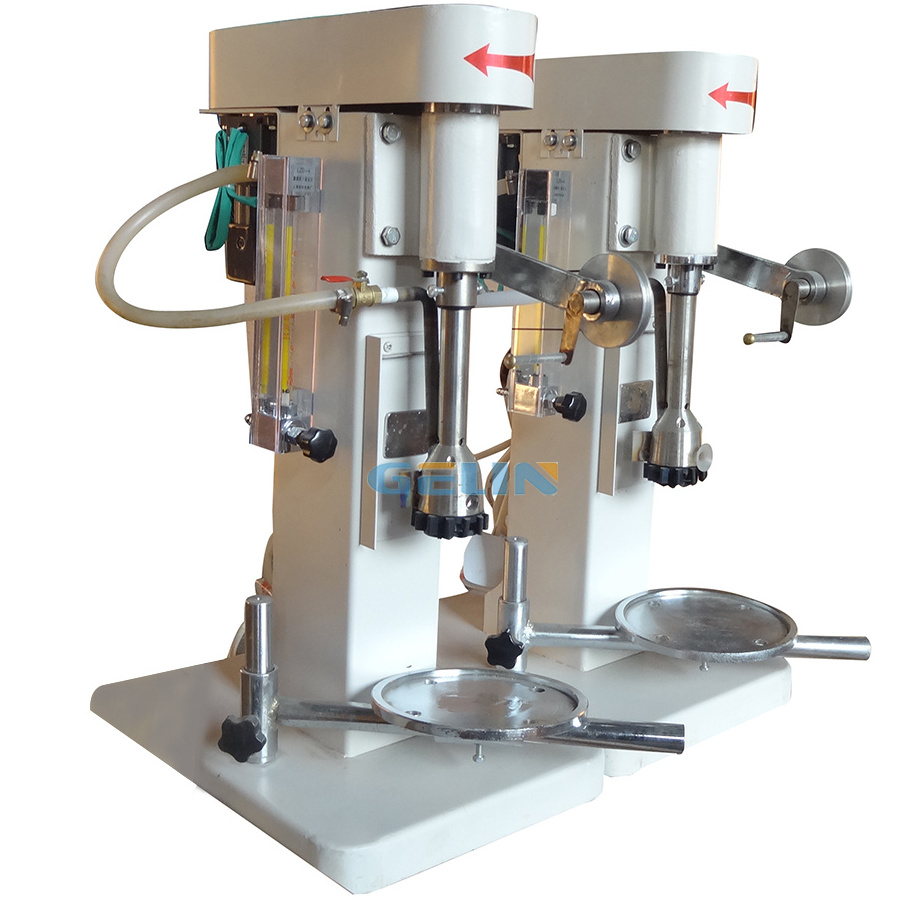

XFD Series Single Cell Flotation Machine for Laboratory Testing

XFD Series Single Cell Flotation Machine for Laboratory Testing

Lab flotation machine is provided for flotation of minor ore samples in labs of geological,metallurgical,chemical and other industries.

1. Perfect quality.
2. High Precise
3. Convenient to maintain
4. Corrosion resisting
5. Low cost, low energy consumption.
6. Simple & safe operation ,stable performance.

1. Base

3. The tank

5. Blade part

7. The cover

9. Flow meter

11. Blade switch

2. The carrier

4. Stir part

6. Spindle part

8. The motor

10. Switch controls

Before operation, check whether the main shaft turns clockwise. If not, then change phase sequence of the power source to make the motor turns clockwise before operation.
Mix mineral samples and water and then pour them into the cell. Start up the motor to drive the main shaft for rotation. The impeller will agitate in the cell. Then open the valve for air inflation and add chemical agent to form foams. Turn on switch of the scraper motor (8) for rotation of the scraper to scrape foams out of the cell. A box is set on the working table to receive foams. Minerals needed can be obtained after processing of the foams.

40HQ/40GP/20GP
- Load Port

Xiamen ,Guangzhou, Shenzhen,Shanghai or at customers' request

It is applicable to comminution of coal,bauxite and other materials in labs of mine

It is applicable on mining, metallurgy, geology, construction materials, research unit laboratory sample crushing.

It is provided for flotation of minor ore samples in labs of geological,metallurgical,chemical and other industries.

It is used for crushing various hardness material.

It is one of the methods for concentrating minerals based on differences gravity.

It is applicable for separations of fine-grained and micro-grained rare metal, ect.

It is the concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.

Determining the magnetic content in products obtained from heavy media processes

It is a lab grinding equipment for wet fine grinding of ore

is mainly used in metal mineral processing laboratory, It uses wet method magnetic separation on fine-grained strong magnetic minerals, the separation form is cocurrent.

It is used mainly to measure the grinding work index of materials such as various ores, slag, etc.

It is a kind of grinding equipment which mill and analyze samples through dry grinding.
