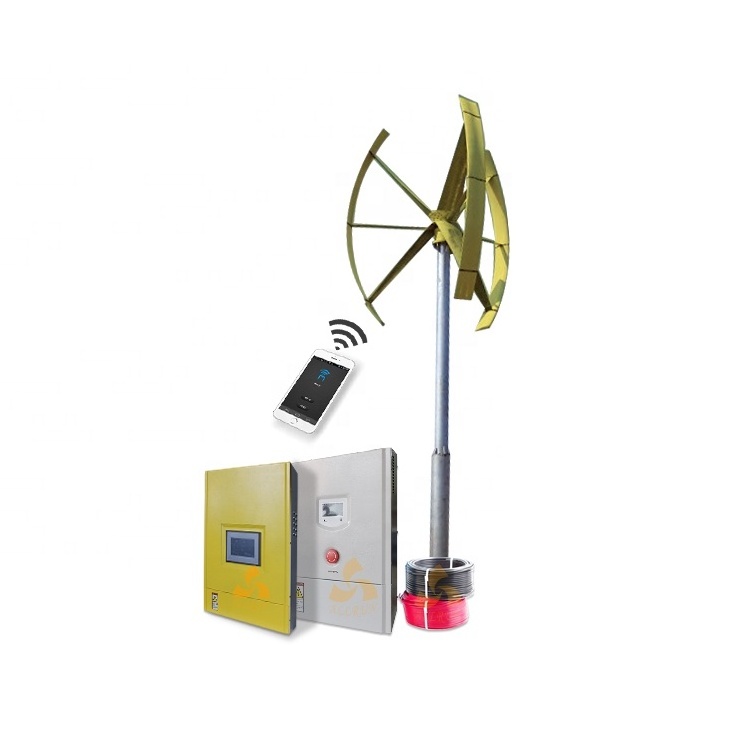

Hot sale ! low start wind speed 1.2m/s 3kw vertical axis wind turbine

Hot sale ! low start wind speed 1.2m/s 3kw vertical axis wind turbine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ARC-3KW

Certification:: CE TUV

Output Voltage:: 192/220/240/380/400V

rotor diameter:: 3.6m

Type:: Wind Power Generator

Product name:: 3kw vertical axis wind turbine

capality:: 3000w

style:: FREE STANDING

colour:: to what you need

Quick Details

Rated Power:: 3KW

Place of Origin:: Shandong, China

Brand Name:: ALLRUN

Model Number:: ARC-3KW

Certification:: CE TUV

Output Voltage:: 192/220/240/380/400V

rotor diameter:: 3.6m

Type:: Wind Power Generator

Product name:: 3kw vertical axis wind turbine

capality:: 3000w

style:: FREE STANDING

colour:: to what you need

Vertical-axis wind turbine		Horizontal-axis wind turbine
Item NO.	ARC-3KW
Rated Power	3kW
Blades	C-shaped
Blades Number	3 pc
Rotor Diameter	3 m
Blade Length	3600mm
Blade Width	210mm
Blade Weight	11kg
Rated rotated speed	150 r/min
Rated wind speed	8 m/s
Output voltage	192/220/240/380/400V(can adjust to what you need)
Start up wind speed	2 m/s
Operating wind speed	3-25 m/s
Security wind speed	50 m/s
Top turbine weight	325KGS
Output Controller System	controller and inverter

1. The wind wheel: using three blades, laminar flow airfoil, high lift-drag and excellent performance. The blades use glass fiber reinforced plastic leaf fiber, with a large damping, good dynamic feature, and good toughness. Wind wheel and generator with flexible connections run smoothly without vibration or noise.

2. Generator: Magnetic levitation generator.The overload strong bearing, long-lasting lubrication free maintenance. Magnetic levitation style. with light weight and can fully use the wind from different direction. low speed from 50RPM to 200RPM.Free noise.

3. Switch controller: It is connected generators,batteries or network (if necessary) and electric-powered equipment, electrical installations.The system with different voltage sockets is user-friendly;rectifier that is issued by the three-phase AC generator changing into direct current. On grid and off grid style is optional.

4. Inverter: Wind generators are direct current through the battery output can only be used for the direct current electrical use,using AC appliances must be equipped with the DC into AC inverter,inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers,and then provide utilization for electricity equipment.On grid an off grid is optional.

A: Grid TIE System

B: Off Grid System

Features

1.Low speed permanent magnet generator. 2.Low starting torque,High generating efficiency. 3.Glassfibre high efficiency blades. 4.Neodymium magnets and bearing with high performance. 5.Yaw motor system (optional) . 6.Designed for minimal maintenance and easy install. 7.Aerodynamic brake & manul brake.

8. WIFI APP function is optional.

Pure sine wave inverter

1.Pure sine wave output can drive any household appliances. 2.Use integrated circuit, less wire connection. 3.Adopting micro-processor technology, improving system integration. 4.Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit .protection, over thermal protection, etc. 5.Be able to work in wind power or wind&solar hybrid system. 6.With high efficiency transformer instead of high frequency e-circuit design. 7.Automatic regulate voltage. 8.LCD display operation status. 9.High running stability and reliability. 10.True sine wave form power output. 11.High efficient transformer isolation. 12.Buzzer alarm while over-loading/voltage, high-temperature.

13.Users can adjust the data upon the local real working situation.

1. Household wind motor

2. Wind turbines for parks

3. Offshore wind turbine

4. Grassland Wind Turbine

Our company Qingdao Allrun New Energy co., ltd, is specialized in producing wind products and solar products, such as wind power system, solar panel , and other solar products. The company also owns an independent research on wind energy products of multiple power levels from 150W to 500KW, which have been widely used in independent off-grid wind power system, on-grid wind power system, wind-solar hybrid street light system, wind -solar hybrid home power system, wind-diesel hybrid system and etc.And welcome you to visit our website: www.qdallrun.cn to know more about our company and the products! We have about ten years in this area ,not only can products our own brand products, but also can design the system to the requirement from our clients. We have a 10 personed r&d team to do the development to meet the requirement from the market. Customers from Europe, America, Australia, Canada, New Zealand, South Africa and Asia. have already established reliable cooperation ship with us, and appreciated for our good service, fast delivery, honest communications, good quality and combative price. This is also the reason we can stand here so many years. And also hope you can cooperate with us in long term because of our advantage. Thanks!

Please feel free to contact me if there is any further question about it.

Q1 :What size do you produce? A1:Allrun can produce from 150W to 300KW wind turbine, can supply parts or whole unit. Q2:Which style do you produce? A2:Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need. Q3:What the warranty? A3:Allrun can offer 20 years warranty. Q4:What about the delivery? A4:Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we have our own shipping forwader.
