auto display the temperature, protect, fault code and compressor, working situation, each parts para is shown to the control panel, easy operation.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
3PH~220V/380/415V/460V~50HZ/60HZ
-
Dimension(L*W*H):
-
2000*1000*1700mm
-
Weight:
-
850 KG
-
Power:
-
21270W
-
Working Temperature Range:
-
-10DEGRE C ~ +30DEGREE C
-
Compressor type:
-
Hermetic Scroll Type
-
Compressor Brand:
-
Copeland, Danfoss, Panasonic
-
Refrigerant:
-
R134a/R407c/R410a/R404a
-
Cooling capacity:
-
15 tons
-
Usage:
-
Plastics, rubber, wine making, food processing
-
Evaporator:
-
S/STank with coil or Shell and tube
-
Tank capacity:
-
350 Liters
-
Condenser:
-
Copper tube plate fins
-
Custom-made brand logo:
-
OEM/ODM accept
-
Product name:
-

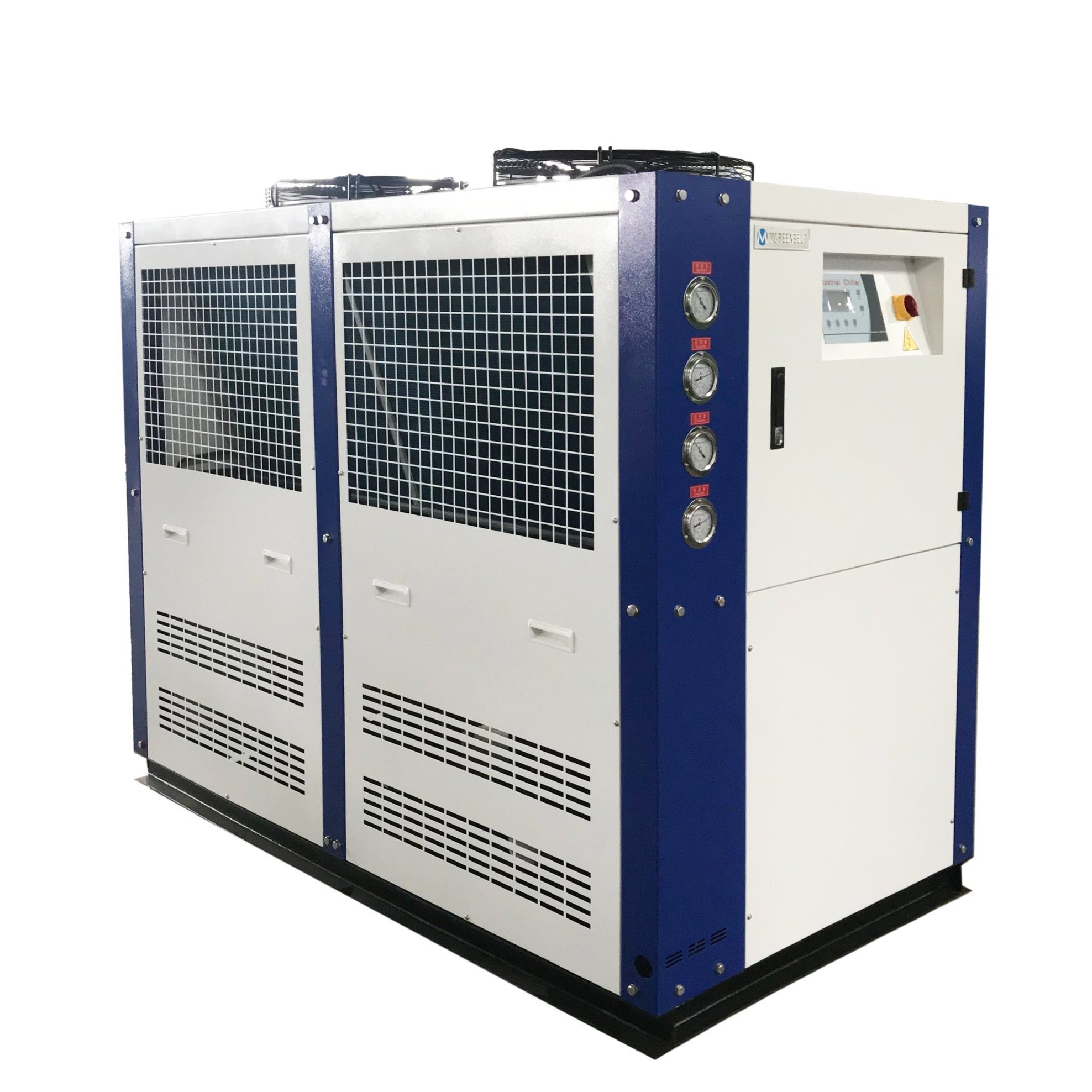

20HP water chiller
Quick Details
-
Condition:
-
NEW100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MGREENBELT
-
Voltage:
-
3PH~220V/380/415V/460V~50HZ/60HZ
-
Dimension(L*W*H):
-
2000*1000*1700mm
-
Weight:
-
850 KG
-
Power:
-
21270W
-
Working Temperature Range:
-
-10DEGRE C ~ +30DEGREE C
-
Compressor type:
-
Hermetic Scroll Type
-
Compressor Brand:
-
Copeland, Danfoss, Panasonic
-
Refrigerant:
-
R134a/R407c/R410a/R404a
-
Cooling capacity:
-
15 tons
-
Usage:
-
Plastics, rubber, wine making, food processing
-
Evaporator:
-
S/STank with coil or Shell and tube
-
Tank capacity:
-
350 Liters
-
Condenser:
-
Copper tube plate fins
-
Custom-made brand logo:
-
OEM/ODM accept
-
Product name:
-
20HP water chiller
Products Description
1. Cooling range: 5 °C ~ 35 °C.-15C/-10C/-5C/0C
Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
2. Water tank made of SUS304 stainless steel.
3. P.I.D temperature control, temperature control is accurate and reliable.
4. Using an independent anti-freezing temperature controller to prevent freezing.
5. Compressors and pumps are equipped with overload devices.
6. Low and high voltage switch control, flexible and adjustable, well protects the compressor.
7. Hydrophilic chip condensers to have better heat exchange effect.
8. Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.
9. Refrigerant: R22, environmentally friendly refrigerant R407C/R134a/R410a/R404A is also optional.
Product Details
|
Model
|
|
|
MG-5C
|
MG-10C(D)
|
MG-15C(D)
|
MG-20C(D)
|
MG-25C(D)
|
MG-30C(D)
|
MG-40C(D)
|
||||||||
|
|
|
|
5HP
|
10HP
|
15HP
|
20HP
|
25HP
|
30HP
|
40HP
|
||||||||
|
Cooling capacity
|
+7℃
|
Kcal/h
|
11266
|
24510
|
35948
|
47558
|
54352
|
71896
|
94256
|
||||||||
|
|
|
KW
|
13.1
|
28.5
|
41.8
|
55.3
|
63.2
|
83.6
|
109.6
|
||||||||
|
|
|
TR
|
3.72
|
8.1
|
11.89
|
15.72
|
17.97
|
23.77
|
31.16
|
||||||||
|
|
+12℃
|
Kcal/h
|
13972
|
27945
|
41960
|
55890
|
62769
|
83835
|
111780
|
||||||||
|
|
|
KW
|
16.25
|
32.5
|
48.8
|
65.0
|
73.0
|
97.5
|
130.0
|
||||||||
|
|
|
TR
|
4.62
|
9.24
|
13.88
|
18.48
|
20.76
|
27.72
|
36.96
|
||||||||
|
Input power
|
kW
|
|
5.61
|
10.83
|
16.31
|
21.27
|
24.35
|
32.33
|
41.66
|
||||||||
|
Outlet water temperature
|
|
|
5°C -35°C
|
|
|
|
|
|
|
||||||||
|
Power supply
|
|
|
3PHASE-220/380V/415v/460v-50HZ
|
|
|
|
|
|
|
||||||||
|
Refrigerant
|
Type
|
|
R22/R407C/R410A
|
|
|
|
|
|
|
||||||||
|
|
Control type
|
|
Thermostatic expansion valve
|
|
|
|
|
|
|
||||||||
|
Compressor
|
Type
|
|
Hermetic Scroll Type
|
|
|
|
|
|
|
||||||||
|
|
Power(kw)
|
|
4.54
|
4.54*2
|
4.54*3
|
9.05*2
|
10.6*2
|
9.05*3
|
9.05*4
|
||||||||
|
Evaporator
|
Type
|
|
Stainless Steel Tank with Coil
|
|
|
|
|
|
|
||||||||
|
|
Water flow(m³/h)
|
|
2.25
|
4.89
|
7.17
|
9.48
|
10.83
|
14.33
|
18.79
|
||||||||
|
|
Capacity(Lts)
|
|
70
|
200
|
270
|
350
|
350
|
450
|
580
|
||||||||
|
|
Fitting pipe(mm)
|
|
DN25
|
DN32
|
DN40
|
DN40
|
DN40
|
DN65
|
DN65
|
||||||||
|
Condenser
|
Type
|
|
Finned Copper tube +low noise air fans
|
|
|
|
|
|
|
||||||||
|
|
Air volume(m³/h)
|
|
5000
|
10000
|
15000
|
20000
|
25000
|
30000
|
40000
|
||||||||
|
Water pump
|
Power(kw)
|
|
0.75
|
0.75
|
1.5
|
1.5
|
1.5
|
2.2
|
3
|
||||||||
|
|
Lift(m )
|
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||||
|
Dimension
|
L(mm)
|
|
1300
|
1560
|
1800
|
2100
|
2100
|
2500
|
2350
|
||||||||
|
|
W(mm)
|
|
650
|
850
|
1000
|
1000
|
1000
|
1200
|
1460
|
||||||||
|
|
H(mm)
|
|
1200
|
1500
|
1600
|
1700
|
1700
|
1800
|
2000
|
||||||||
|
Weight
|
KG
|
|
200
|
450
|
750
|
850
|
900
|
1150
|
1350
|
||||||||
Adopt micro-computer controller:
French Schneider electric accessories.
Well designed and reasonable pipelines-ensures power supply and saves energy.
Multipath protection device:
Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.
world famous brand compressors from Panasonic, Copland, Danfoss etc
, new and original (not re-condition) compressors; low noise and super cooling. Available three
compressor --economical and efficient.
High effective Evaporator:
Optional Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect..
High efficiency, 30% higher than normal condenser; aluminum finned copper tube- separate circuit, excellent cooling, quiet with low electric consumption.
Built-in Stainless steel 304 Circulation water pump, super high efficiency and low noise.
|
Item
|
Brand
|
|
Compressor
|
Panasonic
|
|
Evaporator
|
MGREENBELT
|
|
Condenser
|
MGREENBELT
|
|
Expansion Valve
|
EMERSON/DANFOSS
|
|
Controller
|
PUNP
|
|
Electric parts
|
SCHNEIDER
|
|
Filter Dryer
|
EMERSON/DNAFOSS
|
|
Water pump
|
CNP
|
Customer site
Application of Chiller used in many different industries:
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Other industries- plastic industry, electronics industry, electroplating industry, machinery industry, construction industry,
laser industry, ultrasonic/ultrasound industry, numerical control processing industry, ship manufacturing industry, steel and iron
manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc.
laser industry, ultrasonic/ultrasound industry, numerical control processing industry, ship manufacturing industry, steel and iron
manufacturing industry, discharge industry, shoe making industry, leather dry cleaning industry etc.
Factory production
Product Packaging
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. EXW,FCA,FOB,CFR,CIF,DAP/DDU,DDP ALL can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. EXW,FCA,FOB,CFR,CIF,DAP/DDU,DDP ALL can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
