SEWO China Factory Automated RFID Car Parking Entrance Ticket Dispenser Road Boom Barrier Barcode Payment Machine X6

SEWO China Factory Automated RFID Car Parking Entrance Ticket Dispenser Road Boom Barrier Barcode Payment Machine X6

FOB Reference Price: Get Latest Price

≥1 Sets

US $3999

≥10 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 Years

Loading Capacity:: 10,000 pcs

Name:: automated parking ticket dispenser machine SEWO-X6

Dimension:: 450*270*1370mm

Housing Material:: steel & tempered glass

working temperature:: -30°C-- +70°C.

working humidity:: :≤95% non-condensing

working voltage:: AC220V±10% 50Hz

Support Built-in Reader:: IC/ID/Barcode

Mode of Communication:: base RS485,rear TCP/IP

Communication transmission distance:: 1200m(RS485)

supplier:: over 20 year direct factory

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SEWO

Model Number:: SEWO-X6

Warranty:: 1 Years

Loading Capacity:: 10,000 pcs

Name:: automated parking ticket dispenser machine SEWO-X6

Dimension:: 450*270*1370mm

Housing Material:: steel & tempered glass

working temperature:: -30°C-- +70°C.

working humidity:: :≤95% non-condensing

working voltage:: AC220V±10% 50Hz

Support Built-in Reader:: IC/ID/Barcode

Mode of Communication:: base RS485,rear TCP/IP

Communication transmission distance:: 1200m(RS485)

supplier:: over 20 year direct factory

Product Description

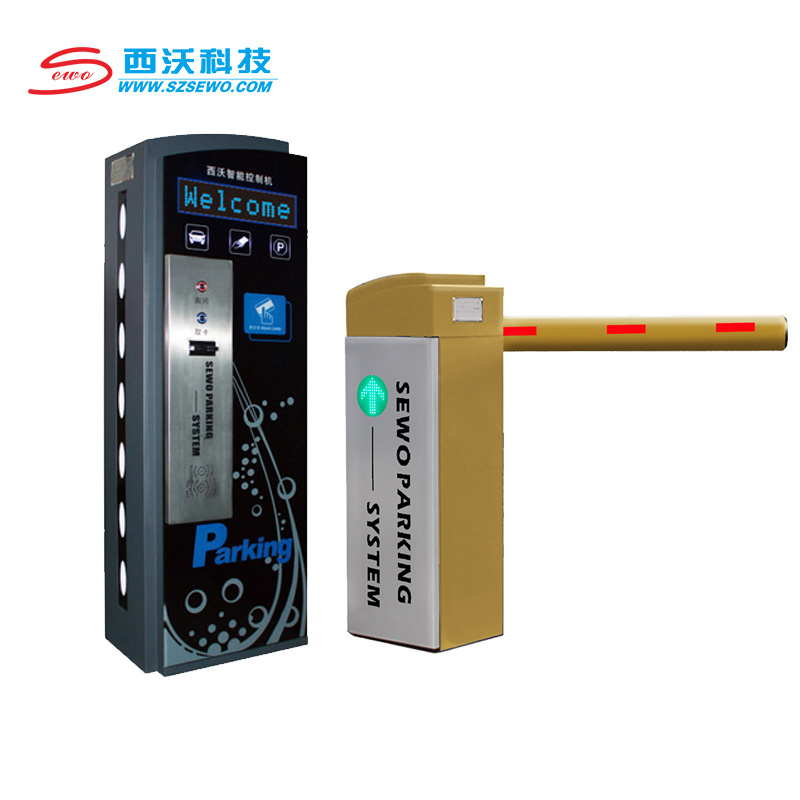

SEWO China Factory Automated RFID Car Parking Entrance Ticket Dispenser Road Boom Barrier Barcode Payment Machine X6

SEWO-X6 Series Car Parking System is a classical series car parking system solutions for managing pay-to-park facilities with high traffic flow, for both hourly and registered parkers. It is composed of Entry Station, Exit Station, Entry Barrier, Exit Barrier, Manual-pay-station and software.This china parking ticket system is ideal solution for parking lots of premises such as shopping mall, hotel, shopping center, exhibition center, hospitals, airports etc

Advanced Features:

1). X6 Series smart parking management system is our first fully off-line system. Which means it can run without computer. Traditional parking management system should works with computer to achieve its complete functions. 2) X6 is designed for off-line situation to solve the problem of computer crash and make sure whole system run normally -- Multiple network modes to realize remote data and image transmission -- Easy to install. Debug and maintain. Testing function available -- Compatible with Long distance reader function.. Off-line working available -- 13.56MHZ. 125KHZ. Barcode. RFID. UHF. Bluetooth available in one control board -- Automatic Card/ Barcode dispenser -- Housing iwth waterproof. Dustproof and rustproof design -- Flexible system configuration.extended to multi-level parking lot management system

What's the advantages of SEWO automatic car parking system ?

* Low-cost, completely wireless solution that replaces loop detectors and lead-in wires
* Provides wireless presence indication (or traffic measurement parameters) directly into the Controller Cabinet
* Reliable operation in all weather conditions
* Flexible installation (number of lanes and location)
* No scheduled maintenance required
* Real-time secure wireless communication
* Unparalleled local support

Entrance Machine

Model No.: SEWO-X6

It dispenses ticket/card to hourly parkers. While registered parkers get access by self-service swiping their proximity cards
close to the reader built-in Entry Station, or enter w/o stop if tag on windowshield is read by external long range RFID reader.
Typically Entry Station is coupled with Entry Barriers, Loop Detectors, and optional accessories, depending on the site
requirements.

Exit Machine

Hourly parkers insert the ticket/card into unmanned Exit Station to leave, registered parkers can leave by self-service swiping
cards onto the reader built-in Exit Station, or leave w/o stop if tag on windowshield is read by external long range RFID reader.
Typically Exit Station is coupled with Exit Barriers, Loop Detectors, and optional accessories, depending on the site
requirements.

Entance Barrier/ Exit Barrier

Mode No.: X6 Boom Barrier

As one part of parking management system, barrier gate stops unauthorized parkers entering your premises, or giving access to
authorized parkers.

There is 3 types for choose:

Straight Arm

Folding Arm

Fence Arm

Parking Management Software & PC

The software provides the operators with idiot proof and user-friendly interface, and practical multi functions, such as managing
registered parkers and occasional parkers, setting charging standard, real-time surveillance, parking space display, managing
events, managing report, registering card etc.

SEWO Parking Management System Working Principle

FAQ: How to Entry ?

Step 1----- The Vehicle covers the 1th Loop coil.
Step 2 ----- Driver press the push button on the entry parking case.
Step 3 ----- The card dispenser spit an RFID Card. system recording all the information.like data.entry time.
Step 4 ----- Boom barrier open automatically
Step 5 ----- After driver pass the 2th loop coin. The Boom barrier close automatically

FAQ: How to Pay and Exit ?

1st Example of Case

Manual Payment（ Gatehouse near the exit barrier ）

Step 1----- Vistor drive to the payment centre station and give his to the operator (Station near the Exit point ) Step 2----- Operator put the card in the card issue device Step 3----- System shows the card information on the LED display automatically. ( Including The card holder. How long the car stay inside the parking system. How much need to pay ） Step 4----- After driver pay the cash. Operator click " open barrier ". then boom barrier open Step 5----- After the car pass the loop coil. the boom barrier close

2nd Example of Case

Central Payment （ driver pay the money in the central parking lot ）

Step 1----- Vistor drive to the central payment room and give the card to the cashier Step 2----- Cashier swipe the card on the card issuer device. then system show how long he stay inside the parking lot and how much need to pay Step 3----- After pay the money. Cashier give back the card to the driver Step 4----- Driver take the card to the exit machine and insert it to the card acceptor. then barrier open Step 5----- After the car pass the loop coil. the boom barrier close

3rd Example of Case

Driver pay the money to the autopayment machine

Step 1----- Vistor drive to the Auto-payment Station and place card on the reader Step 2----- The auto-payment machine show how long the car stay and how much need to pay automatically Step 3----- Vistor Insert the Coin or Notes to the bill acceptor then print out receiption Step 4----- After pay the money. Vistor take the card to the exit machine and insert the card to the acceptor. then barrier open automatically Step 5----- After the car pass the loop coil. the boom barrier close

Specification

Model	SEWO-X6 Series Smart Parking Management System
Housing Dimension	4502701370mm
Housing Material	Steel & Tempered glass
Housing Color	Black
Support Built-in Reader	IC / ID Cards ; Barcode ; RFID
Com Mode	RS485. Rear TCP/IP
Communication distance	1200m(RS485)
Data Transmission speed	4800bps/100m
Offline storage Capacity	10000pcs(Extendible)
Blacklist Capacity	1000pcs(Extendible)
Card Capacity	1000pcs(Extendible)
Working Temperature	-30℃--70℃
Working Conditional	Indoor / Outdoor
