and built in
high power heater and ensure the
temperature inside the chamber .
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Custom Made
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
D1000xH1200
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chamber Material:
-
Stainless Steel 304
-
Control System:
-
Auto & Manual
-
Operation:
-
PLC Touch Screen
-
Coating Technology:
-
Multi Arc + Sputtering
-
color:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
Application:
-
Decorative Coating
-
Install location:
-
Customer Location
-
Kinds of coating:
-
TiAIN ,TiN,TiCN,TiC,CrCetc
-
Certification:
-
ISO9001, CE
Quick Details
-
Machine Type:
-
pvd vacuum coating, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foxin
-
Voltage:
-
Custom Made
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
D1000xH1200
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chamber Material:
-
Stainless Steel 304
-
Control System:
-
Auto & Manual
-
Operation:
-
PLC Touch Screen
-
Coating Technology:
-
Multi Arc + Sputtering
-
color:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
Application:
-
Decorative Coating
-
Install location:
-
Customer Location
-
Kinds of coating:
-
TiAIN ,TiN,TiCN,TiC,CrCetc
-
Certification:
-
ISO9001, CE
Products Description
|

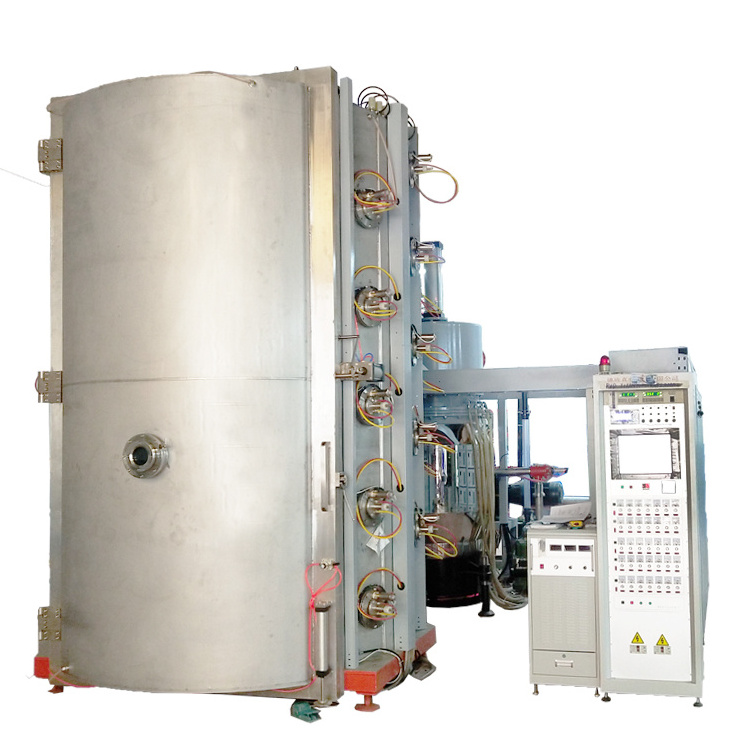

FOXIN-IP Series Multi-Arc Magnetron Coating Equipment Model(Height ≤ 1.3m)
|
|
|
|
|
|
|
||||||
|
Model
|
TG-1418
|
TG-1620
|
TG-1820
|
TG-2020
|
TG-2023
|
TG-2030
|
||||||
|
Vacuum chamber
|
Ф1400×H1800mm
|
Ф1600×H2000mm
|
Ф1800×H2000mm
|
Ф2000×H2000mm
|
Ф2000×H2300mm
|
Ф2000×H3000mm
|
||||||
|
Application
|
hardware industry, sanitary appliance industry, decoration industry
|
|
|
|
|
|
||||||
|
|
Faucet,stair handrail, household appliances ,LOGO signs ,stainless steel frame ,parts and sheet
|
|
|
|
|
|
||||||
|
Coating Film
|
Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc.
|
|
|
|
|
|
||||||
|
Vacuum
|
Vertical door structure, equip with air pumping system and water cooling system
|
|
|
|
|
|
||||||
|
Vacuum system
|
Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump
or Molecule Pump(specific model according to customers' requirements)
|
|
|
|
|
|
||||||
|
Vacuum
|
1 set pirani, 1 set cold
cathode, 1 set diaphragm gauge
|
|
|
|
|
|
||||||
|
Supply Type
|
DC power, MF power, pulse power(bias power, arc power)
|
|
|
|
|
|
||||||
|
Ultimate
|
1.0- 6.0×10-4Pa, Non-loading cooling
|
|
|
|
|
|
||||||
|
Arc Source
|
16-24set
|
16-24 set
|
18-26set
|
18-26 set
|
22-28 set
|
22-32 set
|
||||||
|
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
||||||
|
Bias Power
|
40KW/1 set
|
40KW/1 set
|
40KW/1 set
|
40KW/1 set
|
40KW/1 set
|
60KW/1 set
|
||||||
|
Magnetron Power Supply
|
1-2 set
|
1-2 set
|
2-3 set
|
----
|
-----
|
-----
|
||||||
|
Rotation
|
Multi-axis planetary with frequency control(can be
controlled and adjusted)
|
|
|
|
|
|
||||||
|
Baking
Temperature
|
Normal temperature
～
300
℃
to 450
℃
～
600
℃
can be controlled and adjusted(PID temperature
control)
|
|
|
|
|
|
||||||
|
Gas
|
3 or 4 ways working gas flow control and display system matched with auto gas adding system
|
|
|
|
|
|
||||||
|
|
Ar, N
2
, O
2
,
C
2
H
2
,etc.
|
|
|
|
|
|
||||||
|
Cooling
Method
|
Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) ,or cryogenic system.(customers provide)
|
|
|
|
|
|
||||||
|
Controlling
|
Manual, half-auto, auto, touch screen operation, PLC or computer controlled
|
|
|
|
|
|
||||||
|
Air Pressure
|
0.5-0.8MPa
|
|
|
|
|
|
||||||
|
Water
|
≤25℃ ≥0.2MPa
|
|
|
|
|
|
||||||
|
Warning
|
Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect
|
|
|
|
|
|
||||||
|
Total Power
|
100~125KW
|
125~145KW
|
145~165KW
|
165~185KW
|
185~200KW
|
200KW
|
||||||
|
Output
|
Voltage 380V，Frequency 50Hz(equip as customers' national electricity standard)
|
|
|
|
|
|
||||||
|
Occupation
|
15~50m²
|
15~50m²
|
25~55m²
|
25~55m²
|
35~55m²
|
35~55m²
|
||||||
|
Remark
|
Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc.
|
|
|
|
|
|
||||||
Our
A
dvantage
Double layer Vacuum Chamber
Foxin use double layer of stainless steel 304 to manufacture the vacuum chamber , with advanced welding technology and ensure the air tightness of the chamber .
better vacuum pressure protection capability ,higher ultimate vacuum , More durable service life.
Excellent vacuum pumping system
Foxin choose the famous Chinese brand pump for the vacuum pumping system . its Vacuum is fast and steady .
to obtain high efficiency coating cycle time , greatly reduces the vibration frequency and energy consumption of the equipment .
Foxin offer the import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .
Foxin’s 10th Arc Source and the Parts
Equipped with Foxin’s 10th generation high-performance arc power supply and
cathode
arc source device , it means more uniform coating film , leading reliable performance of continuous coating
Foxin keep the technology R&D , so the technology are
progressing .
Control System and Famous Electrical Production
Foxin use the international cutting-edge brand s of the electrical production , such as Siemens , Mitsubishi . Especially the PLC .
Foxin use the touch screen , easy to control the machine .
Automatic system coating system , Foxin will base on the customer's products to set the program . the machine can be finish from pumping to coating a
utomatically.
Gold head with IP color
IP black , IP gold etc
it is mean the high level quality color .so you can make your products become the high quality and high grade
we will build in the magnetron sputtering target
Tableware with gold color
After PVD coating , your
tableware can be more
glistening and sold with high price .
our multi arc target can do for this and with a suitable size . the coating is hardness and high firmness
Furniture with gold color
the furniture with gold color is
appropriate for the hotel . that make your hotel with high level .. and can use in the home . .
the coating can be kept more than 10 years .
