Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ZYRS-TX568
-
HS Code:
-
3926909090
-
Resolution:
-
1920*1080/3840*2160
-
Name:
-
Monitor Type Stretched Bar Lcd Display Screen
-
Size:
-
19,21,23,24,28,29,35,36,37,38,48,88 inch,customizable
-
Brightness:
-
400nit,1000nit,2500 nit,3000 nit,customizable
-
Operating system:
-
Android,Window 7/8/10,Linux,Auto-play
-
Network:
-
WIFI,LAN ,3G 4G Optional
-
Installation:
-
Ceiling ,Hang,Mounting ,Floor Standing
-
Certificate:
-
CE, FCC, CCC, ROHS & ISO9001
-
Custom:
-
Color,Logo,Border Design,etc
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LCD
-
Brand Name:
-
ZYRS
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ZYRS-TX568
-
HS Code:
-
3926909090
-
Resolution:
-
1920*1080/3840*2160
-
Name:
-
Monitor Type Stretched Bar Lcd Display Screen
-
Size:
-
19,21,23,24,28,29,35,36,37,38,48,88 inch,customizable
-
Brightness:
-
400nit,1000nit,2500 nit,3000 nit,customizable
-
Operating system:
-
Android,Window 7/8/10,Linux,Auto-play
-
Network:
-
WIFI,LAN ,3G 4G Optional
-
Installation:
-
Ceiling ,Hang,Mounting ,Floor Standing
-
Certificate:
-
CE, FCC, CCC, ROHS & ISO9001
-
Custom:
-
Color,Logo,Border Design,etc
Product Description

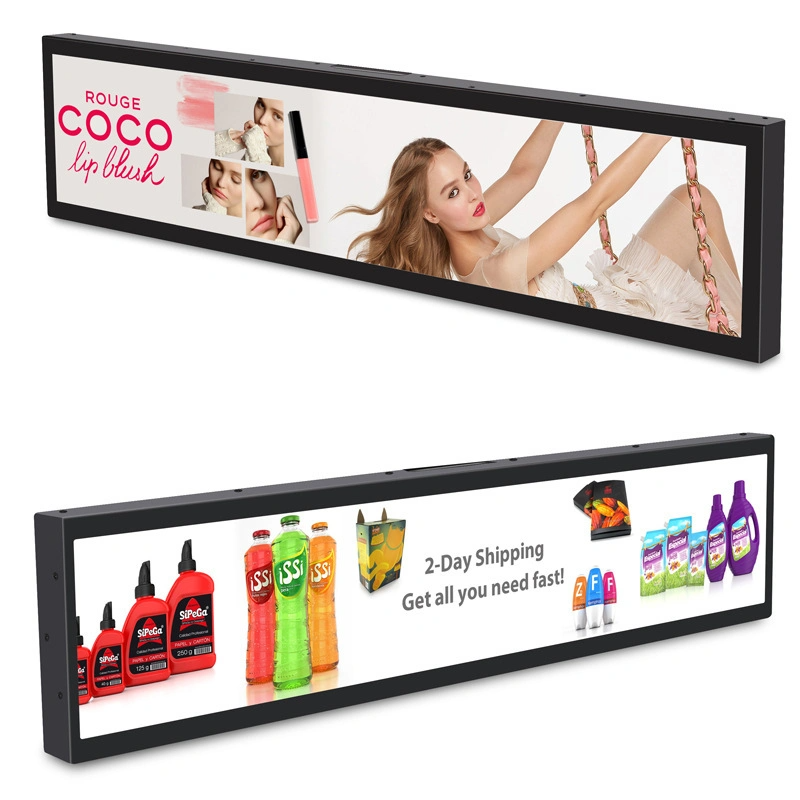

Digital Signage LCD Stretch Screen Custom Size Strip Display with Android System WiFi and HDMI USB Port
(Other products Please contact us or visit our Related products)
Our Factory ODM / OEM Products:Outdoor/Indoor Digital Signage,LCD/LED Billboards and Video Wall,Outdoor High Brightness LCD Screen,Advertising Displays,Ultra-Wide Stretch Bar LCD Screen,LED Display Screen,All In One Touch Screen Kiosk,Interactive Whiteboard/Smart Board,Used Widely In Areas Such As Bus stations, Airports, Community Parks, Business Centers, Media Centers, Squares, Freeway Toll Stations,Electric Vehicle Charging Stations.Customized LCD Panel Used For Shop Store Retail Supermarket Shopping Mall Bus Metro Subway Train
(Other products Please contact us or visit our Related products)
Our Factory ODM / OEM Products:Outdoor/Indoor Digital Signage,LCD/LED Billboards and Video Wall,Outdoor High Brightness LCD Screen,Advertising Displays,Ultra-Wide Stretch Bar LCD Screen,LED Display Screen,All In One Touch Screen Kiosk,Interactive Whiteboard/Smart Board,Used Widely In Areas Such As Bus stations, Airports, Community Parks, Business Centers, Media Centers, Squares, Freeway Toll Stations,Electric Vehicle Charging Stations.Customized LCD Panel Used For Shop Store Retail Supermarket Shopping Mall Bus Metro Subway Train
Stretched Bar LCD Monitors - Further Information
Also called ultra-wide displays or just stretched displays, these are a relatively new format in the digital signage arena. The format has allowed digital signage to be used in a range of new applications such as theatre subtitles and surtitles, shallower menu boards and in any public display with constricted space like on narrow pillars where the screens can be used in portrait.
| Product list | Screen Size | Model Name | Resolution |
Dimensions
(mm) |
Active Area
(mm) |
System |
Brightness
(nits) |
| 8.8 inch | EN088UHN01 | 1920*480 | 258*70*24.1 | 218.9*54.8 | Andriod 5.0 | 500 | |
| 18.8 inch | EN188UHN01 | 1920*185 | 498*71.5*23.8 | 476.64*49.15 | Andriod 5.0 | 500 | |
| 19 inch | EN190UHN01 | 1920*360 | 494.4*112.4*33.3 | 476.64*89.37 | Andriod 5.0 | 300 | |
| 19.8 inch | EN198UHN01 | 1920*590 | 498*171.5*17.8 | 476.64*148.2 | Andriod 5.0 | 500 | |
| 21 inch | EN210UHN01 | 1920*132 | 542.4*54.7*8.9 | 529.416*36.397 | Andriod 5.0 | 300 | |
| 21.6 inch | EN216UHN01 | 1920*590 | 546.5*183.5*17.6 | 528.28*160.19 | Andriod 5.0 | 500 | |
| EN231UFP01 | 1920*158 | 597.4*60.4*15.8 | 585.6*48.19 | Andriod 5.0 | 400 | ||
| 23.5 inch | EN235UFW01 | 1920*360 | 599.65*124.63*15.1 | 584.64*109.62 | Andriod 5.0 | 500 | |
| 24 inch | EN240UHN01 | 1920*360 | 615.6*135.1*33.2 | 597.888*112.104 | Andriod 5.0 | 300 | |
| 28 inch | EN280UHN01 | 1920*360 | 743.9*163.9*30.2 | 699.84*131.22 | Andriod 5.0 | 700 | |
| 29 inch | EN290UF-V03 | 1920*540 | 755*253*41 | 685.4*196.63 | Andriod 5.0 | 500 | |
| 35 inch | EN350UFP01 | 2880*158 | 891.6*60.4*15.8 | 878.4*48.19 | Andriod 5.0 | 400 | |
| 34.6 inch | EN346UHN01 | 1920*156 | 899.5*93.5*19 | 878.11*74.15 | Andriod 5.0 | 500 | |
| 35.6 inch | EN356UHN01 | 1920*533 | 899.5*262.5*17.8 | 878.112*242.67 | Andriod 5.0 | 500 | |
| 36.6 inch | EN366UHN01 | 1920*290 | 960*174.35*35 | 919.3*138.85 | Andriod 5.0 | 700 | |
| 37 inch | EN370UHN01 | 1920*540 | 914.91*280.84*43.5 | 899.712*253.044 | Andriod 5.0 | 700 | |
| 43.8 inch | EN438UHN01 | 3480*1080 | 1087*328*47 | 1071*301 | Andriod 5.0 | 700-2000 | |
| 47.1 inch | EN471UHD01 | 3840*160 | 1209*62.9*16 | 1196.16*49.84 | Andriod 5.0 | 500 | |
| Parameter | |||||||
| System | CPU | RK3288 | |||||
| RAM | 2GB | ||||||
| Disk | 8GB | ||||||
| operating system | Android 5.1 and above | ||||||
| Display | Viewing angle | 89/89/89/89 (up / down / left / right) | |||||
| Display mode | Normally black, ads, transmissive, matte | ||||||
| Contrast | 1000:1 | ||||||
| brightness | 300-700 nits | ||||||
| Network | WiFi | 2.4G WIFI | |||||
| Ethernet | 100m Ethernet | ||||||
| Bluetooth | Optional | ||||||
| Interface | USB | 1 | |||||
| USB×1 | USB OTG | ||||||
| RJ45 | 1 | ||||||
| Deck | 1 push-push tf deck | ||||||
| Media Supported | Video format | Support rich video format: AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, | |||||
| audio format | Support all format audio files: OGG, APE, FLAC, WAV, AMR, AIFF, MPC. | ||||||
| Image Format | Support picture format: JPG,JPEG,BMP,GIF,PNG , maximum resolution to 30000*30000; | ||||||
| Others | VESA | Support wall mount 100 * 600mm, 100 * 100mm | |||||
| osd language | Multilingual osd operation in Chinese and English | ||||||
| Operating temperature | 0--50 degrees | ||||||
| power | 65W | ||||||
| Annex | ac power | AC 220V | |||||
| DC power | DC 12V | ||||||
FAQ
1) Q:What is the minimum order quantity?
Refee: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
Refee: It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
3) Q:How long is the warranty time for your products?
Refee: We provide 1 year warranty for all of our products and supply life-time maintenance.
4) Q:I haven't done business with your company before, how can i trust your company?
Refee: Our company is a registered golden member on Alibaba site for more than 15 years.
We supply to all over the world, and business partners including P&G,Unilevel, BAT,CocoCola,WalMart etc. Feel free to contact us for more cases and solutions.
5) Q:what's the shipment terms and delivery time of your company?
Refee: It depends on order quantity, shipping address and shipping methods.
6) Q:Do you give any discount ?
Refee: Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price
based on the right solution.
based on the right solution.
7) Q:I would like to ask you if it's possible to have my logo on the product.
Refee: Logo printing service is available for mass order based on our M.O.Q
8)Q:What kind of certification do you get?
Refee: We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
9)Q: What’s the HS CODE?
Refee: Digital Signage HS CODE: 8528591090
