Quick Details
-
Brand Name:
-
OEM
-
Use:
-
FTTX, FTTX
-
Transmission Rate:
-
10/100/1000Mbps
-
Port:
-
16 RJ45 port
-
Certification:
-
CE FCC ROHS
-
Level of protection:
-
IP40
-
Operating temperature:
-
-30℃~+75℃
-
Input voltage:
-
DC10-58V
-
Installation:
-
Din-Rail
-
Warranty:
-
5 years
Quick Details
-
Type:
-
industrial POE Ethernet switch, FTTx Solutions
-
Model Number:
-
1000M POE industrial Ethernet switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Use:
-
FTTX, FTTX
-
Transmission Rate:
-
10/100/1000Mbps
-
Port:
-
16 RJ45 port
-
Certification:
-
CE FCC ROHS
-
Level of protection:
-
IP40
-
Operating temperature:
-
-30℃~+75℃
-
Input voltage:
-
DC10-58V
-
Installation:
-
Din-Rail
-
Warranty:
-
5 years
Product Description

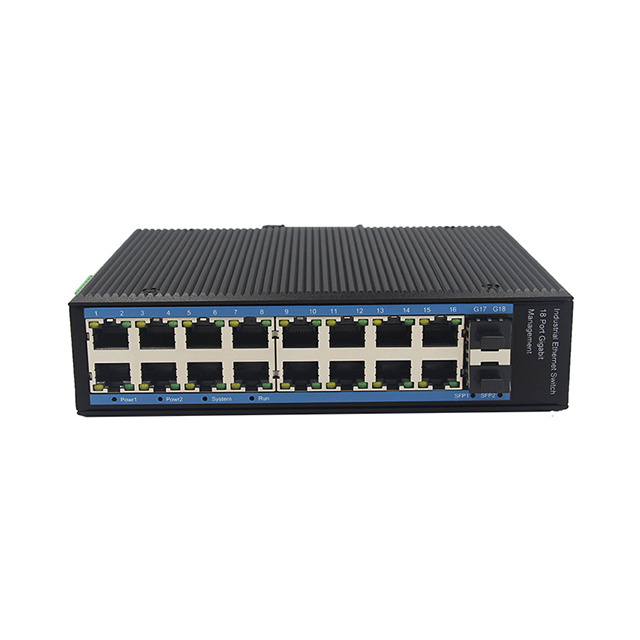

16 RJ45 Port 1000M Industial Ethernet Switch
Unitekfiber supplys Ethernet switch adopts a high-strength IP40 protective shell with industrial-grade EMC design, and supports Auto-Negotiation adaptive technology. The product provides LED status indication and supports redundant wide voltage 12~48V DC power input to increase the reliability of the communication network.It help users to achieve Ethernet data exchange and aggregation with long-distance optical transmission function.
Specification
|
Network Protocols
|
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af; IEEE802.3at; |
|
POE Standards
|
Standard PoE: IEEE802.3af/ IEEE802.3at
|
|
|
PoE interface:1 port suport PoE
|
|
|
Output power:
Maximum power15.4W (IEEE 802.3af) Maximum power30W (IEEE 802.3at) POE port automatic identify af/at |
|
|
Output voltage: DC48~57V
|
|
|
Power supply mode: 1/2+;3/6-
|
|
RJ45 Interface
|
10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
|
|
Fiber Interface
|
1000BaseFX port (SC/FC/ST /SFP optional)
|
|
Switch properties
|
Application level: Layer 2
Total backplane bandwidth: 15.2Gbps Whole machine packet forwarding rate: 11.3088Mpps MAC address table: 1K Packet buffer: 512K Exchange delay: <3µs Exchange method: store-forward Power consumption: <3W |
|
Protection Level
|
IP40
|
|
LED indicator
|
Power indicator: PWR
Interface indicator: electrical port, optical port (Link/ACT) |
|
Power Supply
|
Input voltage: 48~57V (dual power supply redundant backup)
Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
|
Working Environment
|
Working temperature: -40~85℃ ;
Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industrial Standard
|
MI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Mechanical properties
|
Shell: metal material
Installation: DIN rail type, wall-mounted installation Weight: 0.36Kg Size:118 x 86 x 39mm(length×width×height) |
|
MTBF
|
300,000 hours
|
|
Warranty
|
5 years
|
