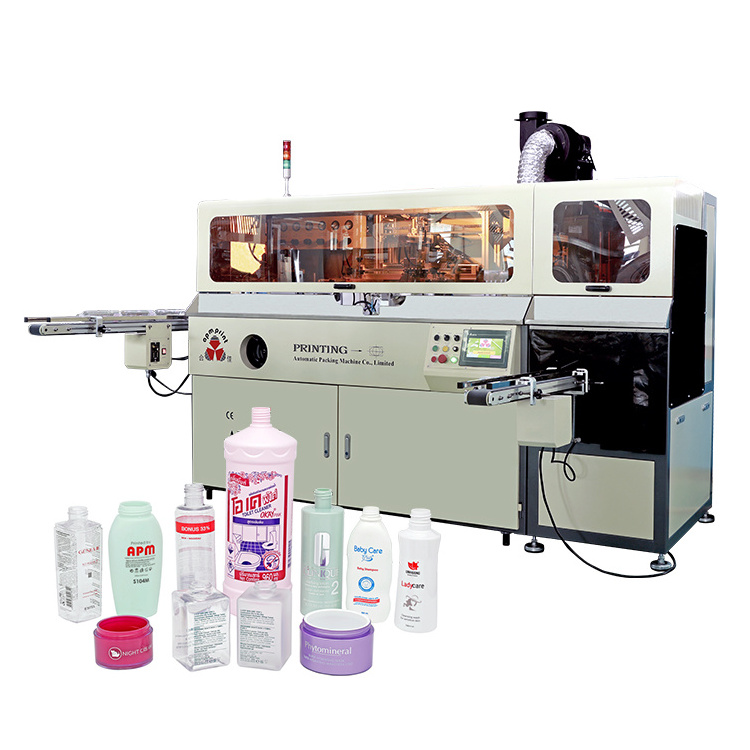

S102 High Quality with Automatic flame treatment and UV drying system 1-8 Color Bottle Auto Screen Printing Machine

S102 High Quality with Automatic flame treatment and UV drying system 1-8 Color Bottle Auto Screen Printing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $19999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: APM

Dimensions(L*W*H):: 2500x1420x1700mm

Weight:: 2200 KG

Certification:: CE Certification

Application:: Printing Bottle

Printing color:: 1~8 color

Printing speed:: 4000pcs/H

Max printing size:: dia.100mm

Dryer:: UV Dryer/LED dryer

Quick Details

Condition:: New

Color & Page:: Multicolor

Voltage:: 380V, 50/60HZ

Place of Origin:: Guangdong, China

Brand Name:: APM

Dimensions(L*W*H):: 2500x1420x1700mm

Weight:: 2200 KG

Certification:: CE Certification

Application:: Printing Bottle

Printing color:: 1~8 color

Printing speed:: 4000pcs/H

Max printing size:: dia.100mm

Dryer:: UV Dryer/LED dryer

Products Description

Parameter	APM-S102
Round container
Printing diameter	20-100mm
Printing length	20-300mm
Max.printing speed	4000pcs/h
Oval container
Printing width	25-120mm
Printing length	25-300mm
Max.printing speed	5000pcs/h
Square container
Printing length	100-200mm
Printing width	40-100mm
Max.printing speed	4000pcs/h
Machine dimension	190810001500mm
Power	380V,3P,50/60Hz
Air supply	5-7bar

General Description

Automatic 1-8 color screen printing line, each unit can be separated or connected; Automatic loading system with belt and vacuum
robot(bowl feeder and hopper optional; Auto flame treatment;Perfect transmission system. It passes over the bottles fast and
smooth; Automatic 180 degree rotation for oval and square bottles; Quick and easy change over from one product to another; LED UV
curing system with longer life time and energy saving,electric UV system optional; Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;Automatic unloading.

Procedure

Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading

1.Auto loading onto belt

2.flame treatment

3.printing

4. UV drying

5.next color printing

6.next color drying

Applications

The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
