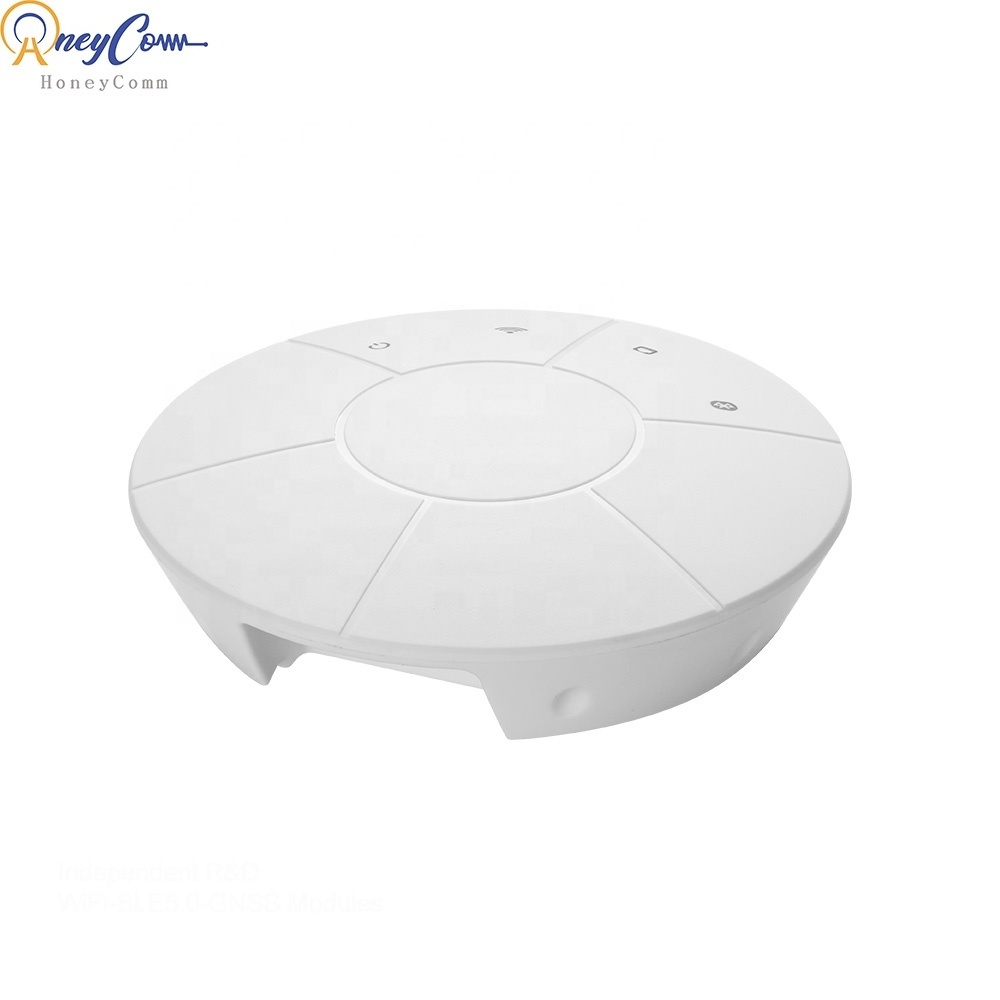

HCBG01 is a Bluetooth gateway that supports Bluetooth 4.2/5.0. The main processor uses a 580MHz MIPS24KEc processor, and the DRAM is DDR2 64 MB and 16 MB FLASH. HCBG01 Bluetooth gateway integrates PA and LNA, and the Bluetooth scanning and connection distance can reach more than 100 meters, which greatly increases the coverage and reduces the user cost.
HCBG01 can support POE power supply (according to IEEE 802.3at ( Type 1 ) requirements) or power adapter power supply (wide voltage range: 6V-2 4 V).
HCBG01 can be compatible with different Bluetooth terminal devices, which is convenient for users to collect data and remote control of Bluetooth terminal devices (such as Bluetooth bracelets, Bluetooth skipping ropes, Bluetooth door locks, various Bluetooth sensors, etc.). Two-way transmission of data.
HCBG01 and background communication support: UDP, TCP and MQTT. Supported Bluetooth filtering methods include Bluetooth name filtering, signal strength filtering, MAC address filtering, etc.
HCBG01 supports software remote upgrade function.
Through the signal strength (RSSI value) of the Bluetooth signal of the Bluetooth terminal received by the Bluetooth gateway, the distance from the Bluetooth terminal to multiple Bluetooth gateways can be calculated, and then triangulation can be realized.
HCBG01 is widely used in medical care, elderly care, sports, sports, fitness, education, family, and various industrial applications.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
HoneyComm
-
Supplier Type:
-
Original
-
Bluetooth Version:
-
4.2/5.0
-
Bluetooth Chipset:
-
nRF52832
-
WiFi:
-
MT7628NN
-
Wireless Protocol:
-
2.4Ghz
-
Power supply:
-
12VDC POE
-
Network:
-
RJ45/WiFi/4G
-
Communication protocol:
-
TCP/UDP/IP/MQTT/HTTP
-
Function:
-
Collect Data, send to server
-
Working temperature:
-
-10 to 50 celsis degree
-
Firmware Upgrade:
-
OTA,LAN,FILE
Quick Details
-
Chipset:
-
nRF52832+MT7628
-
Application:
-
Industrial,M2M, IoT application
-
Model Number:
-
HCBG01
-
Place of Origin:
-
GUA
-
Brand Name:
-
HoneyComm
-
Supplier Type:
-
Original
-
Bluetooth Version:
-
4.2/5.0
-
Bluetooth Chipset:
-
nRF52832
-
WiFi:
-
MT7628NN
-
Wireless Protocol:
-
2.4Ghz
-
Power supply:
-
12VDC POE
-
Network:
-
RJ45/WiFi/4G
-
Communication protocol:
-
TCP/UDP/IP/MQTT/HTTP
-
Function:
-
Collect Data, send to server
-
Working temperature:
-
-10 to 50 celsis degree
-
Firmware Upgrade:
-
OTA,LAN,FILE
IoT BLE to Ethernet Gateway Overview
BLE Gateway Features
1. Support PoE power supply or power adapter power supply;
2. Support IEEE 802.11n, IEEE 802.11g, IEEE 802.11b protocols;
3. Support Bluetooth® 4.2/ 5.0 ;
WiFi Gateway Features
4. Integrated Bluetooth PA /LNA ;
5. Support LTE-TDD/LTE-FDD/TD-SCDMA/UMTS / EVDO/EDGE/GPRS/GSM/CDMA ; 6. One WAN/LAN adaptive port;
Interface of Bluetooth Gateway
1.Reset button, press and hold for more than 5 seconds to restore factory settings;
2.Network port/POE power supply;
3.Power supply, power adapter adopts AC 100-240V (50/60Hz) input, 12 V 2A output power adapter.
|
Power Indicator
|
state
|
lamp
|
||
|
serial number
|
state
|
lamp
|
||
|
1
|
plugged in
|
Long bright
|
||
|
2
|
not plugged in
|
off
|
||
|
WIFI indicator
|
|
|
||
|
serial number
|
state
|
lamp
|
||
|
1
|
Wireless is starting
|
Long bright
|
||
|
2
|
After wireless start
|
flashing
|
||
|
3
|
wireless off
|
off
|
||
|
Network port indicator
|
|
|
||
|
serial number
|
state
|
lamp
|
||
|
1
|
The network cable is plugged in
|
flashing
|
||
|
2
|
The network cable is not plugged in
|
off
|
||
|
Bluetooth light
|
|
|
||
|
serial number
|
model
|
lamp
|
||
|
1
|
Scan device broadcast mode
|
Periodic 5000ms off 200ms on
|
||
|
2
|
Scan Forwarding Information Mode
|
Periodic 8000ms off 200ms on
|
||
|
3
|
Long connection mode is connecting
|
Periodic 2000ms off 2000ms on
|
||
|
4
|
Short connection mode is connecting
|
Periodic 1000ms off 300ms on
|
||
|
5
|
Connected to the device (the number of connections is greater than 0)
|
Periodic 300ms off 300ms on
|
||
|
Product Size
|
Indoor type: diameter: 124mm; height: 40mm
Outdoor type: length 153 mm* width 137 mm* height 97 mm |
|
|
power supply
|
Supply voltage range: DC 6 - 28 V
HCBG01-P/PC factory standard power adapter: DC12V/ 1 A HCBG01-M/MC factory standard power adapter: DC12V/2A POE switch: Standard P O E , output 48V , follow IEEE 802.3at standard |
|
|
Working current
|
2 80 mA@ 12 V (with 4 G module)
1 80mA @12V ( without 4G module ) |
|
|
Operating temperature
|
-20℃~70℃
|
|
|
interface
|
Network port, power port, reset button
|
|
|
WiFi
|
|
|
|
WiFi protocol
|
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
|
|
data rate
|
IEEE 802.11b Standard Mode: 1,2,5.5,11Mbps
|
|
|
|
IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps
|
|
|
|
IEEE 802.11n : 72Mbps @ HT20
150Mbps @ HT40 |
|
|
Receiver sensitivity
|
HT40 MCS7 : -67dBm@10% PER(MCS7)
|
|
|
|
HT20 MCS7 : -73dBm@10% PER(MCS7)
|
|
|
|
54M: -76dBm@10%PER
|
|
|
|
11M: -91dBm@ 8% PER
|
|
|
transmit power
|
IEEE 802.11n: 15dBm @HT40 MCS7
15dBm@HT20 MCS7 |
|
|
|
IEEE 802.11g: 16dBm
|
|
|
|
IEEE 802.11b: 18dBm
|
|
|
wireless security
|
WPA/WPA2, WEP, TKIP, and AES
|
|
|
Operating mode
|
Bridge, Gateway, AP Client
|
|
|
Bluetooth
|
|
|
|
bluetooth protocol
|
Bluetooth® 4.2/Bluetooth® 5.0
|
|
|
data rate
|
Uncoded: 1Mbps/2Mbps
|
|
|
wireless security
|
AES HW Encryption
|
|
|
Scanning distance
|
> 100m _
|
|
|
transmit power
|
0~ + 18dBm
|
|
|
Receiver sensitivity
|
-104dBm
|
|
|
connection distance
|
30-50m
|
|
|
4G LTE
|
|
|
|
Protocol
|
LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/
EVDO/EDGE/GPRS/GSM/CDMA |
|
