Quick Details
-
Warranty:
-
1 year
-
Model Number:
-
VASPFOLD-2N-LJ
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1036x740x30mm
-
Max Power Voltage:
-
18.40V
-
Max Power Current:
-
8.7A
-
Open-Circuit Voltage:
-
22.5V
-
Short-Circuit Current:
-
9.44A
-
Maximum System Voltage:
-
1000VDC
-
Temperature Range:
-
-40°C to +85°C
-
Power Tolerance:
-
2%
-
Standard Test Conditions:
-
1000W/m2, AM1.5, 25C
-
Certificate:
-
CE&TUV
Quick Details
-
Cell size:
-
/
-
Type:
-
/
-
Panel Efficiency:
-
Up to 23.5%
-
Warranty:
-
1 year
-
Model Number:
-
VASPFOLD-2N-LJ
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1036x740x30mm
-
Max Power Voltage:
-
18.40V
-
Max Power Current:
-
8.7A
-
Open-Circuit Voltage:
-
22.5V
-
Short-Circuit Current:
-
9.44A
-
Maximum System Voltage:
-
1000VDC
-
Temperature Range:
-
-40°C to +85°C
-
Power Tolerance:
-
2%
-
Standard Test Conditions:
-
1000W/m2, AM1.5, 25C
-
Certificate:
-
CE&TUV
Product Description
Specification
|
Maximum Power(Pmax)
|
110W
|
|
Max Power Voltage
|
18.40V
|
|
Max Power Current
|
8.7A
|
|
Open-Circuit Voltage
|
22.5V
|
|
Short-Circuit Current
|
9.44A
|
|
Cell Efficiency
|
Up to 23.5%
|
|
Maximum System Voltage
|
1000VDC
|
|
Temperature Range
|
-40°C to +85°C
|
|
Power Tolerance
|
2%
|
|
Standard Test Conditions
|
1000W/m2, AM1.5, 25C
|
|
Solar Cell
|
Mono
|
|
Product Dimension(Folded)
|
518x740x60mm
|
|
Product Dimension(Open)
|
1036x740x30mm
|
DESCRIPTION

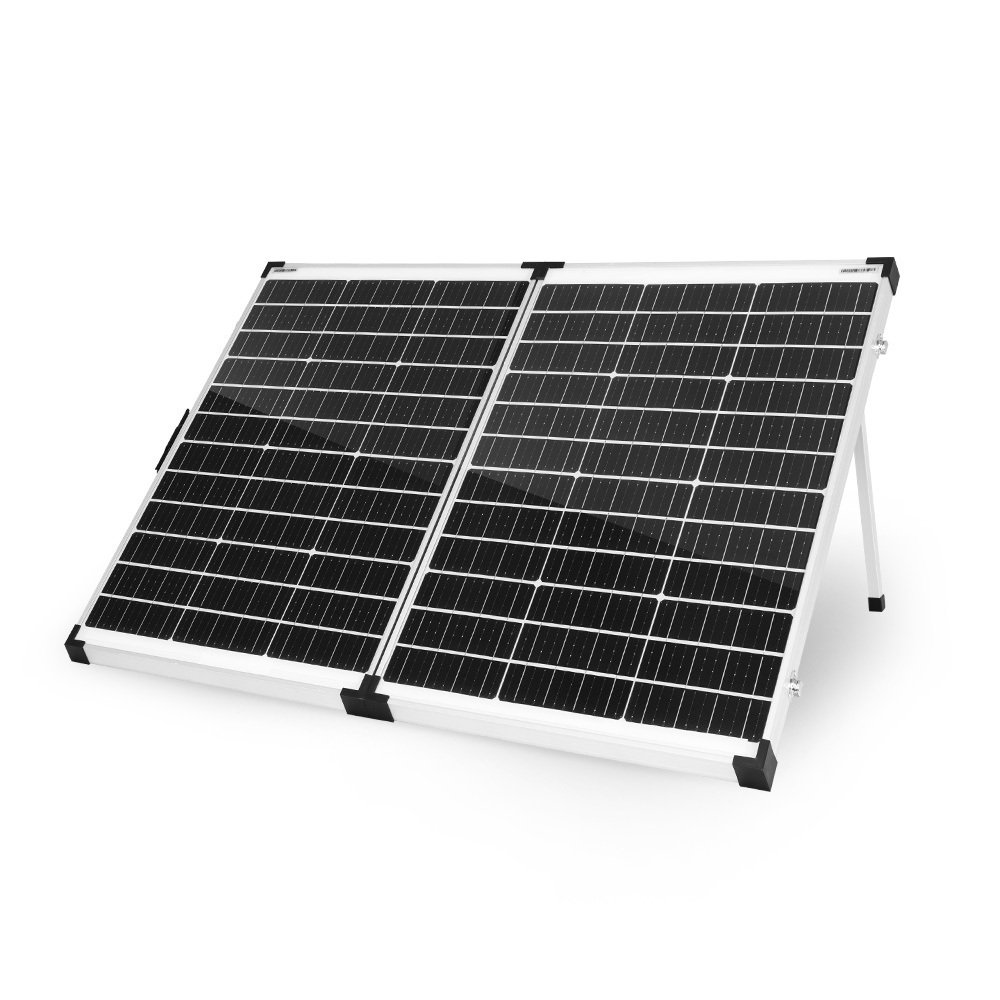

The 12V 110W Folding Solar Panel is the apex in portable, convenient and lightweight solar power to suit any camping lifestyle. Designed for portability and strength, MEGAVOLT solar panel are constructed with a heat resistant PCB backing and reinforced corner ensure long lifetime. Weatherproofed to ensure they outlast the harsh and sometimes unpredictable Australian Outback conditions! Using high quality A-Grade Monocrystalline Solar Cells, this solar panel is perfect for keeping your 12V dual battery system charged, powering fridges, LED camp lights and other campsite gadgets. With MEGAVOLT, you are full equipped to rediscover the fun of off-road.
The 12V 110W Folding Solar Panel is the apex in portable, convenient and lightweight solar power to suit any camping lifestyle. Designed for portability and strength, MEGAVOLT solar panel are constructed with a heat resistant PCB backing and reinforced corner ensure long lifetime. Weatherproofed to ensure they outlast the harsh and sometimes unpredictable Australian Outback conditions! Using high quality A-Grade Monocrystalline Solar Cells, this solar panel is perfect for keeping your 12V dual battery system charged, powering fridges, LED camp lights and other campsite gadgets. With MEGAVOLT, you are full equipped to rediscover the fun of off-road.
FEATURES
Monocrystalline Solar Cell: A-Grade monocrystalline solar cells feature 23.5% increase in cell efficiency.
Heavy-Duty Construction: Aluminum frame with reinforced corner protectors ensure ultimate reliability against harsh use.
Ultimate Durability: This panel is impact-, shatter- and water-resistant, making it the most durable solar panel on the market.
Ultra PET Films: These films feature light penetration rate of 95%, which can greatly increase solar energy conversion efficiency.
Adjustable Kickstands: The kickstands can be tilted to maximize solar power, a bonus for summer and harvest season.
Premium PCB: 1.2mm heat-resistant PCB backing ensures longer lifespan of the solar panel.
Extraordinary Versatility: PWM solar controller with Anderson plug can be directly connected to AGM, lead acid, LiFePO4,Gel & Calcium batteries.
Monocrystalline Solar Cell: A-Grade monocrystalline solar cells feature 23.5% increase in cell efficiency.
Heavy-Duty Construction: Aluminum frame with reinforced corner protectors ensure ultimate reliability against harsh use.
Ultimate Durability: This panel is impact-, shatter- and water-resistant, making it the most durable solar panel on the market.
Ultra PET Films: These films feature light penetration rate of 95%, which can greatly increase solar energy conversion efficiency.
Adjustable Kickstands: The kickstands can be tilted to maximize solar power, a bonus for summer and harvest season.
Premium PCB: 1.2mm heat-resistant PCB backing ensures longer lifespan of the solar panel.
Extraordinary Versatility: PWM solar controller with Anderson plug can be directly connected to AGM, lead acid, LiFePO4,Gel & Calcium batteries.
