Quick Details
-
Warranty:
-
2 Years
-
Loading Capacity:
-
2000kg/platform
-
Name:
-
independent car parking lift
-
Rise/Drip time:
-
45 S / 30 S
-
Security guarantee:
-
Photoelectric switch
-
Quantity in 40' container:
-
20 Unit
-
Release mode:
-
Automatic (Push Button)
-
Driven mold:
-
Motor and chain
-
gross weight:
-
1500kg
-
Application:
-
Commercial, residential and more
-
Power Supply/Motor capacity:
-
220/380V, 1/3Ph, 50/60Hz. / 2.2 Kw or as client request
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GG Lifters
-
Model Number:
-
PIC20
-
Warranty:
-
2 Years
-
Loading Capacity:
-
2000kg/platform
-
Name:
-
independent car parking lift
-
Rise/Drip time:
-
45 S / 30 S
-
Security guarantee:
-
Photoelectric switch
-
Quantity in 40' container:
-
20 Unit
-
Release mode:
-
Automatic (Push Button)
-
Driven mold:
-
Motor and chain
-
gross weight:
-
1500kg
-
Application:
-
Commercial, residential and more
-
Power Supply/Motor capacity:
-
220/380V, 1/3Ph, 50/60Hz. / 2.2 Kw or as client request
parking equipment structure building Single post car parking system independent car lift 2000kg capacity car parking lift

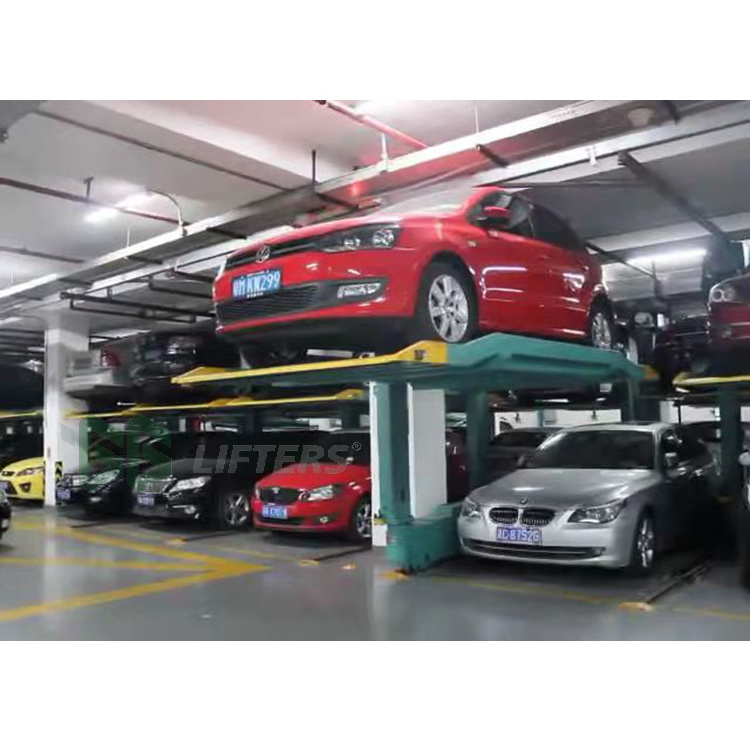

1. One-post indenpendent parking system PIC is new design to park 2 vehicles indenpendently in a single parking space.
2. Upper car could be picked or driven on indenpendently, no need to drive below car away.
3. Also it has only one post at side, wider parking space for below car than other type of indenpendent parking system.
4. No need blank parking space as puzzle parking system.
5. Independent property rights, no need to share with others.
6. This is the perfect mechanical parking system is special suit to residential use, office building, shopping mall,property-developers, architects, hotels, hospitals.
| Technical parameters | |||
| Model | PIC20 | PIC25 | |
|
Max car size
(L*W*H, mm) |
upper car | 5000*1850*1550 mm | 5000 * 1950*1550 |
| lower car | 5000*1850*1700 mm | 5000 * 1950*1700 | |
|
Max capacity
(kg) |
upper car | ≤2000 | ≤2500 |
| lower car | no limit | no limit | |
|
speed
(m/min) |
lifting speed | 5 m/min | |
| sliding speed | 6.5 m/min | ||
| rotating speed | 1 m/min | ||
|
motor capacity
(kw) |
lifting motor | 2.4 kw | |
| sliding motor | 0.4kw | ||
| rotating motor | 0.4kw | ||
| Driven mode | motor + chain | ||
| operation method | remote control, press button on operation panel or touch screen | ||
| net weight (kg) | 1500kg | 1600kg | |
