Quick Details
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
100-250
-
Lamp Luminous Flux(lm):
-
3800
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GRACE
-
Emitting Color:
-
white
-
Product name:
-

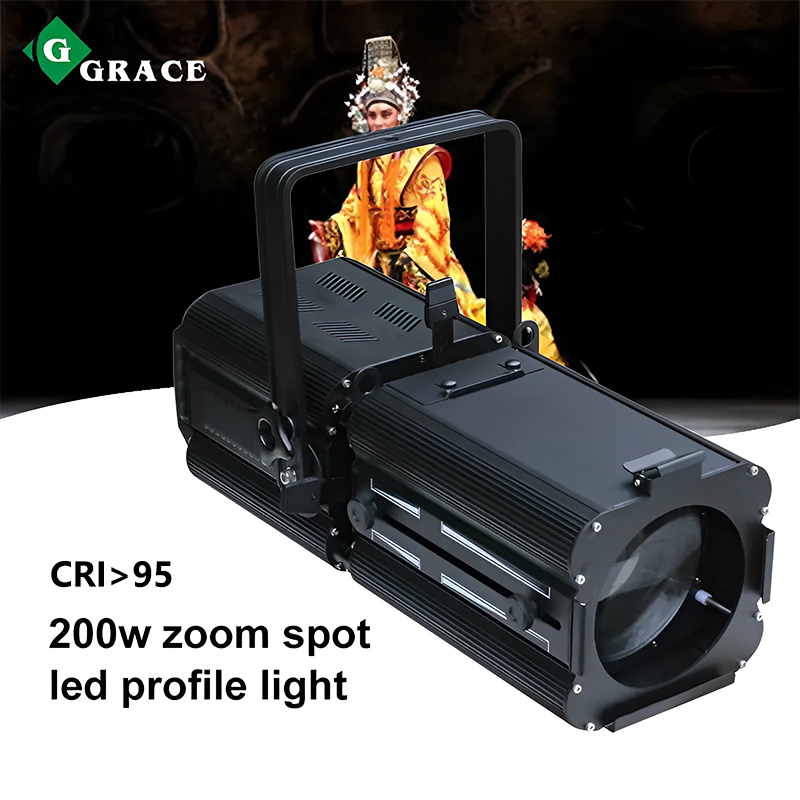

200w led ellipsoidal leko gobo projector zoom led profile spot light
-
Power input:
-
AC100-240V50-60HZ
-
Power consumption:
-
200W
-
Control:
-
DMX512 control
-
Channel:
-
1/2/3 DMX channels
-
Beam angle:
-
Manual zoom focus 17degree-50degree
-
Shell Material:
-
Aluminum&Iron
-
Waterproof Grade:
-
IP20
-
dimming curves:
-
master/slave stand alone
-
leds:
-
White 200W White color COB LED
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Type:
-
Profile Spotlights
-
Application:
-
Theme Park
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
100-250
-
Lamp Luminous Flux(lm):
-
3800
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GRACE
-
Emitting Color:
-
white
-
Product name:
-
200w led ellipsoidal leko gobo projector zoom led profile spot light
-
Power input:
-
AC100-240V50-60HZ
-
Power consumption:
-
200W
-
Control:
-
DMX512 control
-
Channel:
-
1/2/3 DMX channels
-
Beam angle:
-
Manual zoom focus 17degree-50degree
-
Shell Material:
-
Aluminum&Iron
-
Waterproof Grade:
-
IP20
-
dimming curves:
-
master/slave stand alone
-
leds:
-
White 200W White color COB LED
Product paramenters
|
LED Source:
|
The original imported 200W, COB integrated light source LED, color temperature 5600K(3200k)
|
|
Illuminance:
|
3270 Lux (4m 17° full)
|
|
Optimal projection distance:
|
4-20m
|
|
Control mode:
|
DMX-512; RDM; Demo; Master/slave
|
|
Channel:
|
3DMX channel, 16 Bit dimming, 4 dimming curves.
|
|
Working temperature:
|
LED central temperature > 40
|
|
DMX data input/output:
|
two XLR 3 pin (5 pins customizable)
|
|
Size:
|
66*34*21.3CM/25.95×13.38×8.38in
|
|
Weight:
|
12.8 kg/28.21lb
|
|
Voltage:
|
AC100-240V 50/60Hz
|
|
Beam Angle:
|
manual zoom 17-50
Degree
|
|
Driving mode:
|
constant current
|
|
Color:
|
Cool White
|
|
Max Power :
|
200W
|
|
IP Rate:
|
IP20
|
|
Control panel:
|
LCD alphanumeric
|
|
Cooling system:
|
copper tube radiator + silent fan.
|
|
Electronic stroboscopic:
|
1-20 seconds flicker once.
|
|
Electronic dimmer::
|
0-100% linear dimmer.
|
inner photo of the profile light ,use high quality spare parts ,good cooling,good leds,good fan good power suply,mainboard
