Quick Details
-
Panel Size:
-
960*960*75mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
A6 Pro, A8 Pro, A10 Pro
-
Product Name:
-

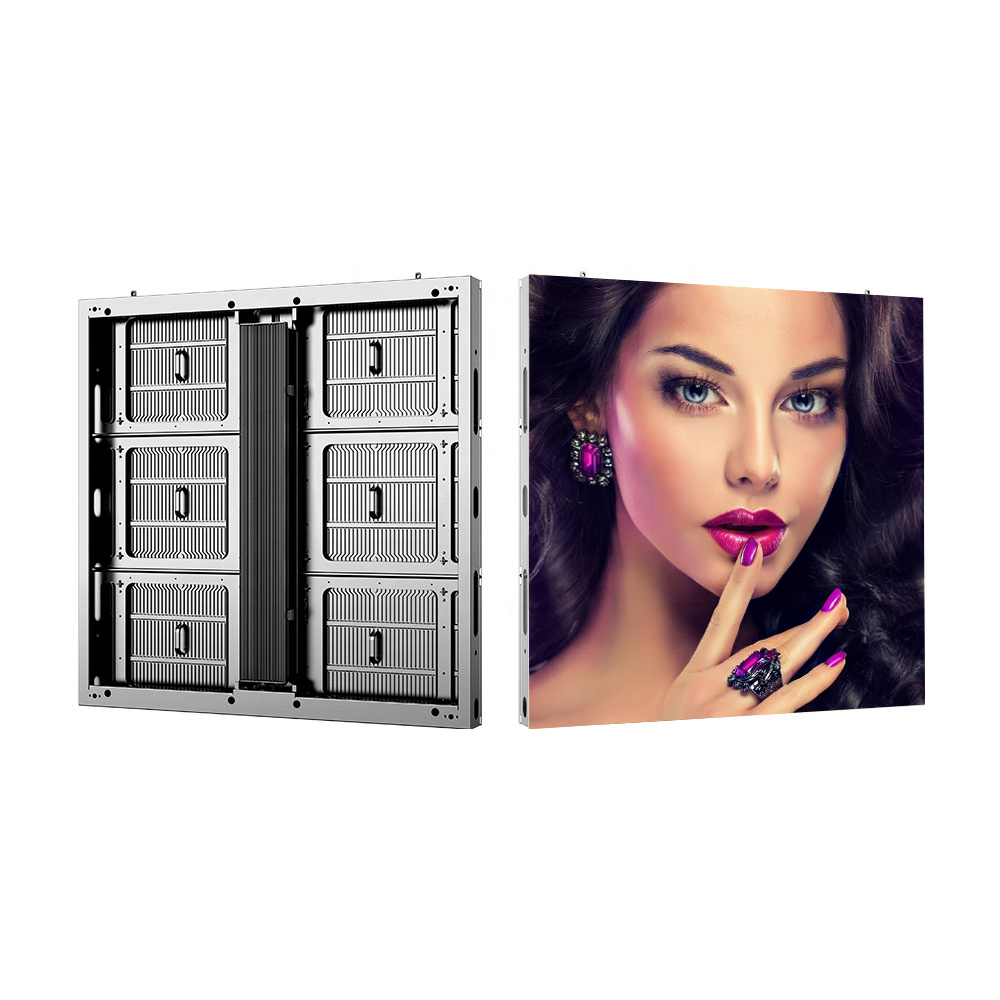

Led Animation Billboards Outdoor Digital Information Panel
-
Brightness:
-
6000-10000nits
-
LED Chips:
-
SMD
-
Cabinet Size:
-
960*960*75mm
-
Panel Material:
-
Die casting aluminum
-
IP Protetion Level:
-
IP66
-
Maintainence Type:
-
Front and Rear Service
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Warranty:
-
5 years
-
Life span:
-
100000 Hours
-
Pixel Pitch:
-
6.67mm, 8mm, 10mm
Quick Details
-
Application:
-
Outdoor
-
Brand Name:
-
Canbest
-
Color:
-
Full Color
-
Panel Size:
-
960*960*75mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
A6 Pro, A8 Pro, A10 Pro
-
Product Name:
-
Led Animation Billboards Outdoor Digital Information Panel
-
Brightness:
-
6000-10000nits
-
LED Chips:
-
SMD
-
Cabinet Size:
-
960*960*75mm
-
Panel Material:
-
Die casting aluminum
-
IP Protetion Level:
-
IP66
-
Maintainence Type:
-
Front and Rear Service
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Warranty:
-
5 years
-
Life span:
-
100000 Hours
-
Pixel Pitch:
-
6.67mm, 8mm, 10mm

Discover Your Right Application , Make Your Business Possible !

Application


Products Description
Technical Parameter
Parameters
|
A6 Pro
|
A8 Pro
|
A10 Pro
|
Pixel Configuration
|
SMD2727
|
SMD3535
|
SMD3535
|
Pixel Pitch(mm)
|
6.67
|
8
|
10
|
Pixel Density(dots /m²)
|
22500
|
15625
|
10000
|
Module Size(L x W x H)/(mm)
|
480x320
|
480x320
|
480x320
|
Panel Size(L x W x H)/( mm)
|
960x960x75
|
960x960x75
|
960x960x75
|
Panel Material
|
Die casting aluminum
|
Die casting aluminum
|
Die casting aluminum
|
Panel Weight(kg/m2)
|
28
|
28
|
28
|
Color Depth(Bit)
|
16
|
16
|
16
|
Gray Level
|
65536
|
65536
|
65536
|
Refresh Rate(Hz)
|
3840
|
3840
|
3840
|
Driver Method
|
1/5
|
1/3
|
1/2
|
Brightness
|
6000-10,000
|
6000-10,000
|
6000-10,000
|
Viewing Angle(H/V°)
|
140/140
|
140/140
|
140/140
|
AC Power Input(V)
|
AC220±10%
|
AC220±10%
|
AC220±10%
|
AC Power Frequency(Hz)
|
50/60
|
50/60
|
50/60
|
Max. AC Power Input (W/m²)
|
550
|
550
|
550
|
Avg. AC Power Input (W/m²)
|
170
|
170
|
170
|
Storage Temperature
|
-40~60
|
-40~60
|
-40~60
|
Working Temperature
|
-20~50
|
-20~50
|
-20~50
|
Storage Humidity
|
10%~60%RH
|
10%~60%RH
|
10%~60%RH
|
Working Humidity
|
10%~60%RH
|
10%~60%RH
|
10%~60%RH
|
IP Rating
|
IP66
|
IP66
|
IP66
|
Life Span(hours)
|
100000
|
100000
|
100000
|
Installation & Maintenance
|
Front&Rear
|
Front&Rear
|
Front&Rear
|
