Quick Details
-
Brand Name:
-
Tmeasurement
-
Model Number:
-
TDS-100M
-
Keypad:
-
4 key tactile-feedback membrane
-
Power supply:
-
8-36VDC~24VDC
-
Pipe diameters:
-
from 15mm to 6000mm
-
Inputs:
-
4-20mA and PT100 platinum resistance input
-
Flash memory:
-
RAM memory
-
Communication protocol:
-
MODBUS
-
Output:
-
OCT, MODBUS, RS485
-
Serial port:
-
RS485
-
Transducer:
-
Clamp on, insertion and flow-cell transducer
-
Protection:
-
IP57
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
18 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Tmeasurement
-
Model Number:
-
TDS-100M
-
Keypad:
-
4 key tactile-feedback membrane
-
Power supply:
-
8-36VDC~24VDC
-
Pipe diameters:
-
from 15mm to 6000mm
-
Inputs:
-
4-20mA and PT100 platinum resistance input
-
Flash memory:
-
RAM memory
-
Communication protocol:
-
MODBUS
-
Output:
-
OCT, MODBUS, RS485
-
Serial port:
-
RS485
-
Transducer:
-
Clamp on, insertion and flow-cell transducer
-
Protection:
-
IP57
Product Description
Introductions

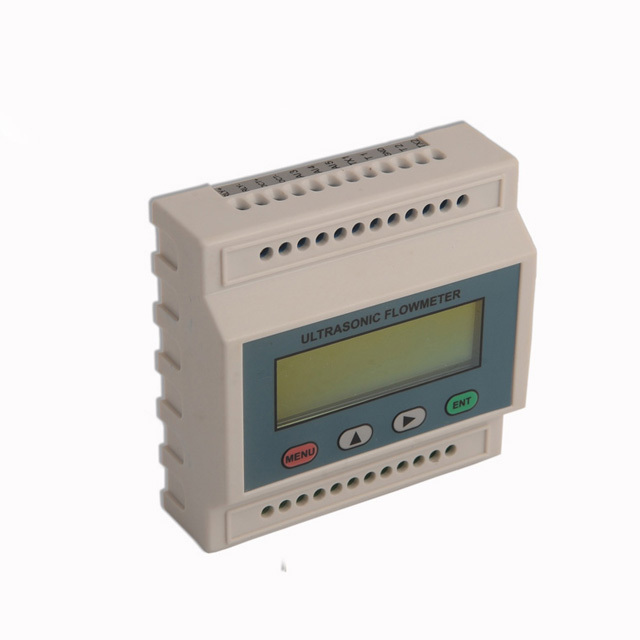

TDS-100M swimming pool ultrasonic modular flow meter
Detailed Images
Functions of TDS-100M Ultrasonic Flow Sensors, Transmitters and Controllers
1. better than 1% accuracy, better than 0.2% repeatabilty.
2. 128 times of measurement and the revised software make the performance better and the indicated flow more stable.
3. RS232 and RS485 serial port
4. One or two analog inputs.
5. Optional 4-20mA analog output.
6. Two OCT output channels
7. Ability to measure sew water.
Specification
TDS-100M Ultrasonic Flow Sensors, Transmitters and Controllers
|
Model Number
|
TDS-100M ultrasonic flow meter
|
Types of transducer
|
Clamp-on transducer, Insertion wetted transducer,Flow-cell transducer
|
|
|
Accuracy
|
better than 1%
|
Installation type
|
Wall mounted
|
|
|
Repeatabilty
|
better than 0.2%
|
Flash memory
|
RAM memory
|
|
|
Output
|
OCT, MODBUS, RS485
|
Several optional function module to be chosen to add to the main module
|
|
|
|
Inputs
|
4-20mA and PT100 platinum resistance input
|
Data logger/printer
|
built-in data logger
|
|
|
Keypad
|
4 key tactile-feedback membrane
|
Parallel interface for display and keypad.
|
|
|
|
Analog output
|
4-20mA
|
Operate
|
easy to operate
|
|
|
Display
|
2×20 English letters LCD
|
Digital inputs
|
can be inputted by used of the analog inputs
|
|
|
Protection
|
IP57
|
Power supply
|
8-36VDC~24VDC
|
|
|
Network
|
GPRS/GSM networking capability with certain model
|
Date totalizers
|
Record as much as 128 sets of data by day, 64 sets of data by month.
|
|
Sensor Selection
Application
• Water (hot water, chilled water, city water, sea water, waste water, etc.)
• Swage with mall particle content
• Oil(crude oil, lubricating oil,diesel oil fuel oil,etc.)
• Chemicals(alcohol,acids,etc.)
• Plant effluent
• Beverage, liquid food
TDS-100M Modular ultrasonic flow meter
Packing & Delivery
Accessories:
1.5m×2 Transducer Cable for sensor
2. Clamp Fixture
3. Spare Connectors
Conditions:
1)Warranty: 18 months
2) Delivery time: 5 working day after payment received.
3) 100% T / T.
4) MOQ: 1 set.
