Quick Details
-
Brand Name:
-
XINYIYB
-
Model Number:
-
YWK-103
-
Max. Current:
-
<60mA
-
Max. Working Pressure:
-
-0.1~0~100Mpa
-
Product Name:
-
Pressure Controller Switch
-
Output signal:
-
4~20mA
-
Measuring range:
-
-0.1~0~100Mpa
-
Accuracy:
-
≤±0.5%FS
-
Temperature drift:
-
±0.02%FS/℃
-
Display:
-
4 LED Display
-
Material:
-
Stainless Steel
-
Environment temperature:
-
-25~80℃
-
Stability:
-
≤0.2% /Year
-
Protection:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
24VDC±20%
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
XINYIYB
-
Model Number:
-
YWK-103
-
Max. Current:
-
<60mA
-
Max. Working Pressure:
-
-0.1~0~100Mpa
-
Product Name:
-
Pressure Controller Switch
-
Output signal:
-
4~20mA
-
Measuring range:
-
-0.1~0~100Mpa
-
Accuracy:
-
≤±0.5%FS
-
Temperature drift:
-
±0.02%FS/℃
-
Display:
-
4 LED Display
-
Material:
-
Stainless Steel
-
Environment temperature:
-
-25~80℃
-
Stability:
-
≤0.2% /Year
-
Protection:
-
IP65
Product Description

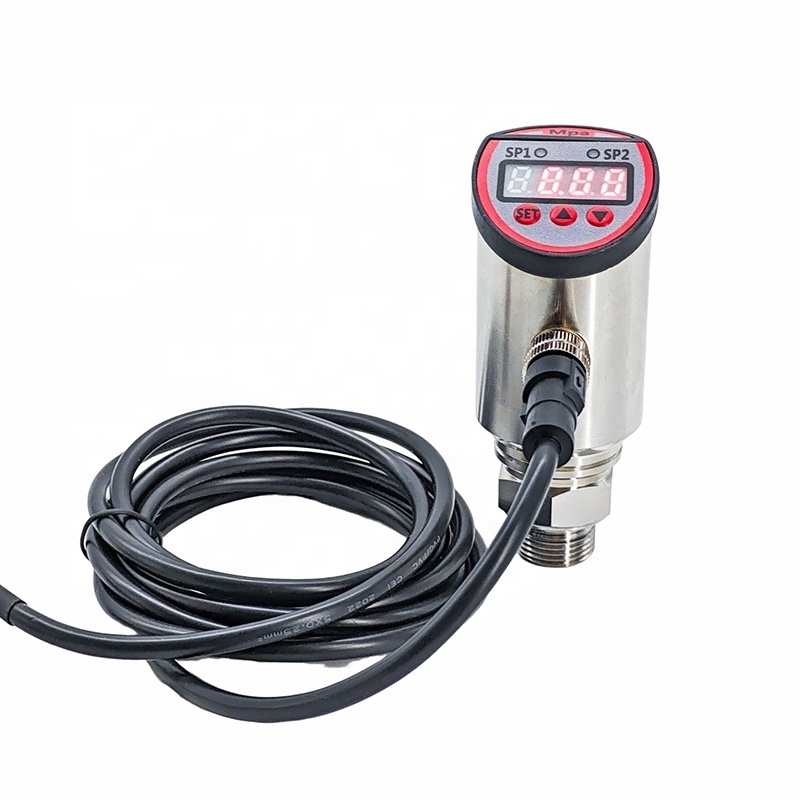

Pressure Control Switch
Intelligent pressure switch is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low temperature drift of the amplifier amplification, into the high precision A/D converter, digital signals into the microprocessor can processing, signal after operation processing control switch, monitoring and control of the pressure control system. The intelligent digital pressure switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
Specification
|
item
|
value
|
|
Product Name
|
Pressure Control Switch
|
|
Control range
|
-0.1~0~100Mpa
|
|
Accuracy
|
≤±0.5%FS
|
|
Stability
|
≤0.2% /Year
|
|
Temperature drift
|
±0.02%FS/℃
|
|
Display
|
4 digit nixie tube
|
|
Display range
|
-1999~9999
|
|
Power range
|
24VDC±20%
|
|
Max Current Consumption
|
<60mA
|
|
Loading capacity
|
<24V1.2A
|
|
Switch Type
|
PNP/NPN
|
|
Medium temperature
|
-25~80℃
|
|
Vibration Resistance
|
10g/0~500Hz
|
|
Protection grade
|
IP65
|
