Quick Details
-
Max. Loading Capacity:
-
30L
-
Weight (KG):
-
12 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WORNER LAB or OEM
-
Voltage:
-
AC220V 50/60Hz
-
Dimension(L*W*H):
-
215x310x720mm
-
Power (kW):
-
0.2 kW
-
Applicable Industries:
-
LAB
-
Overhead stirrer USE:
-
laboratory
-
Overhead stirrer No:
-
(WN)AM200S-P/H (WN)AM300S-P/H
-
Overhead stirrer rated voltage:
-
AC220V
-
Overhead stirrer rated frequency:
-
50/60Hz
-
Power:
-
200/300W
-
Warranty period:
-
1 year
-
Manufacturer:
-
Worner Lab
-
Overhead stirrerdesign:
-
customized
-
Overhead stirrer:
-
Functions of AM200S-P/H liquid soap mixer soap making machine price
Quick Details
-
Barrel Volume (L):
-
30
-
Max. Loading Volume (L):
-
30 L
-
Range of Spindle Speed(r.p.m):
-
100 - 1800 r.p.m
-
Max. Loading Capacity:
-
30L
-
Weight (KG):
-
12 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WORNER LAB or OEM
-
Voltage:
-
AC220V 50/60Hz
-
Dimension(L*W*H):
-
215x310x720mm
-
Power (kW):
-
0.2 kW
-
Applicable Industries:
-
LAB
-
Overhead stirrer USE:
-
laboratory
-
Overhead stirrer No:
-
(WN)AM200S-P/H (WN)AM300S-P/H
-
Overhead stirrer rated voltage:
-
AC220V
-
Overhead stirrer rated frequency:
-
50/60Hz
-
Power:
-
200/300W
-
Warranty period:
-
1 year
-
Manufacturer:
-
Worner Lab
-
Overhead stirrerdesign:
-
customized
-
Overhead stirrer:
-
Functions of AM200S-P/H liquid soap mixer soap making machine price
Functions of (WN)AM200S-P/H liquid soap mixer soap making machine price
|

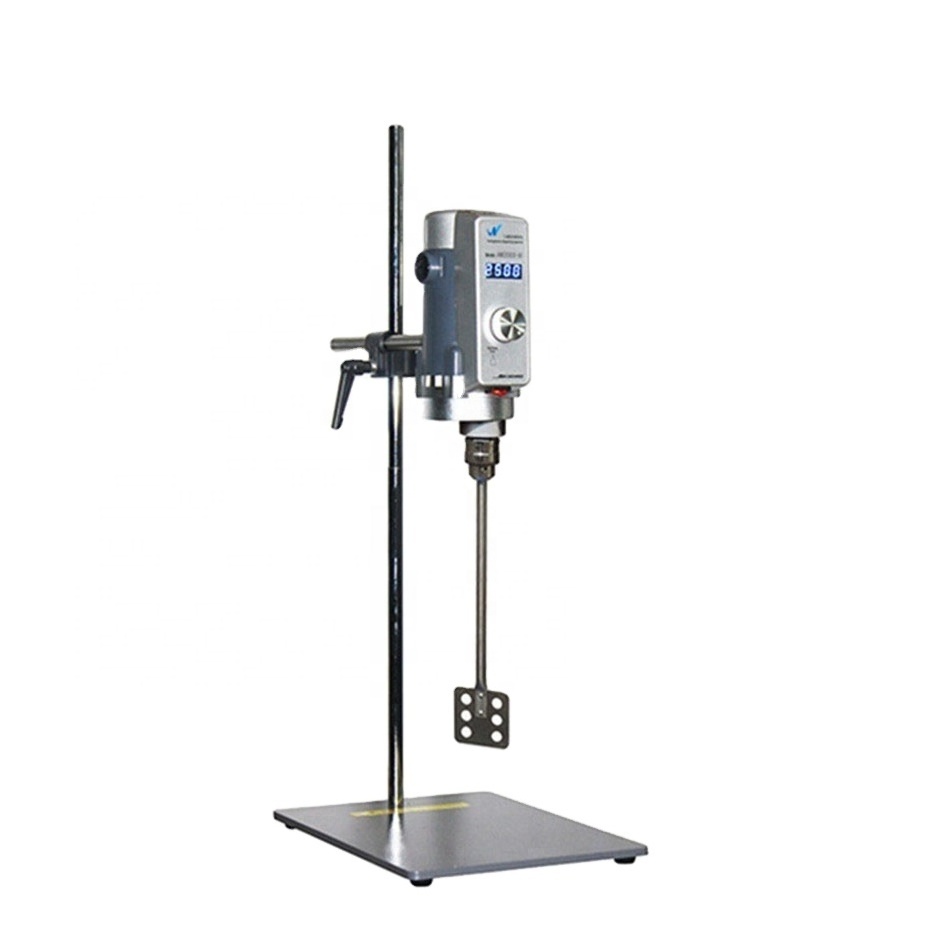

The overhead stirrer consists of driven motor, Controller and the moment institutions and other components. The mixer console is made of high quality engineering plastic and die-cast aluminum to ensure stable operation. A Variable force amplifier is used at the power output end to multiply the output torque. The Stirring speed is controlled by a microprocessor that can compensate for any sudden speed change caused by overload changes or voltage fluctuations. The constant rate and built-in soft-startup can ensure the operating safety. Stepless regulation of the speed can make sure you can modify the speed accordingly.
|
| Overhead stirrer | AM200S-P | AM200S-H | AM300S-P | AM300S-H |
| Rated voltage | AC220V | |||
| Rated frequency | 50/60Hz | |||
| Stirring quantity (H2O) | 50~40000ml | 50~60000ml | ||
| Motor rating input | 340 W | 510 W | ||
| Motor rating output | 200 W | 300 W | ||
| Nominal torque | 1.45Nm | 1.96Nm | ||
| Viscosity max | 100000mPa.s | 100000mPa.s | ||
| Speed display | NO | Digital speed display | NO | Digital speed display |
| Speed range | 100~1800 rpm | |||
| Dimensions(mm) | 215x310x720 | |||
| Permissible ambient temp | ≤40°C | |||
| Permissible relative humidity | ≤80% | |||
Advantages
1.Our sales man will be most delighted to answer all your inquiries
2. We can print your logo if you need.
3. We can customised your plug and power as your need.
4. We will check the quality before packing.
5.If you sale the overhead stirrer in your country well , we also are glad to set up distributer in your country .
6
All
overhead stirrer
are supplied with
a
warranty of 12 Months
from the date of shipment.
