Quick Details
-
Product name:
-
4M 6M pneumatic pumped telescoping antenna mast
-
Extended height:
-
4m
-
Closed height:
-
1.4m
-
Material:
-
Aluminum Alloy 6063B
-
Working pressure:
-
0.20 Mpa
-
Max payload:
-
30 kgs
-
Max windload:
-
120km/h
-
Color:
-
Light brown
-
Application:
-
Lifting head fixed equipment
Quick Details
-
Brand Name:
-
Talents
-
Model Number:
-
TAL-P4-1.4-30
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
4M 6M pneumatic pumped telescoping antenna mast
-
Extended height:
-
4m
-
Closed height:
-
1.4m
-
Material:
-
Aluminum Alloy 6063B
-
Working pressure:
-
0.20 Mpa
-
Max payload:
-
30 kgs
-
Max windload:
-
120km/h
-
Color:
-
Light brown
-
Application:
-
Lifting head fixed equipment

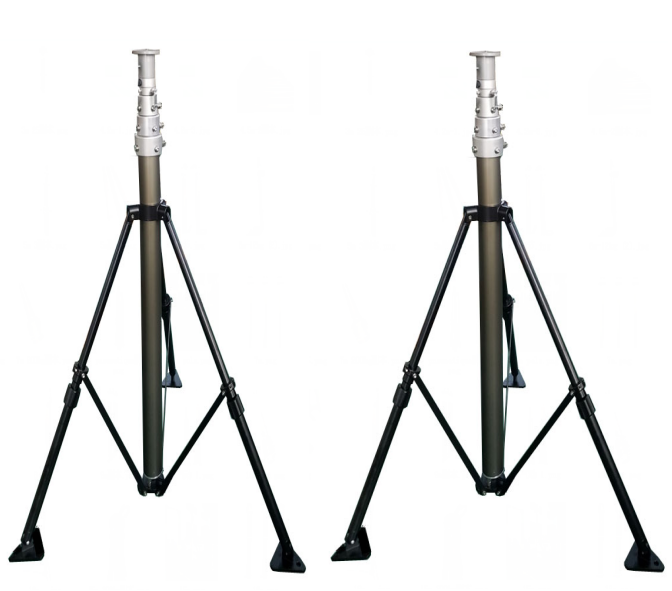

What's the rapid deployment mast?
they are operated either a manual foot/hand pump or small air compressor, they can be easily fitted to a vehicle or ground, the mast are suited to mobile applications where light antennas or cameras are required.
loking collar and non locking collar models are avaible, in general height extended from 2.5m to 9.5m, max. payload no more than 30kg
How many models for choice?
---------3 different models
Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
|
Mast Model
|
TAL-P3-1.25-20
|
TAL-P4-1.4-30
|
TAL-P5-1.6-30
|
TAL-P6-1.95-30
|
|
Extended height
|
3m
|
4m
|
5m
|
6m
|
|
Retracted height
|
1.25m
|
1.4m
|
1.6m
|
1.95m
|
|
Max. vertical load
|
20kg
|
30kg
|
30kg
|
30kg
|
|
No. of section
|
4
|
4
|
4
|
4
|
|
Mast Model
|
TAL-P5.5-1.8-15
|
TAL-P7.5-2.25-12
|
TAL-P8.5-2.35-12
|
TAL-P9.5-2.5-12
|
|
Extended height
|
5.5m
|
7.5m
|
8.5m
|
9.5m
|
|
Retracted height
|
1.8m
|
2.25m
|
2.35m
|
2.5m
|
|
Max. vertical load
|
15kg
|
12kg
|
12kg
|
12kg
|
|
No. of section
|
4
|
5
|
5
|
5
|
|
Kit Contents
|
|
|
||
|
Item
|
Description
|
Quantity
|
||
|
1 and 8
|
Mast with tripod
|
1set
|
||
|
2 and 5
|
pneumatic or manual pump
|
1pc
|
||
|
3 and 4
|
Guy ropes and Ground anchor
|
4pcs
|
||
|
6
|
Regulator valve
|
1pc
|
||
|
7
|
Air hose
|
1pc
|
||
2. CCTV camera for surveillance and security
3. antenna communication
4. site security
5. environmental monitoring station
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
Reply the inquiry by email within 24 hours
by Skype/Whatsapp/Wechat immidately
