Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODOELEC
-
Model Number:
-
PBS-11A
-
Model:
-
PBS-11A
-
Diameter:
-
12mm
-
Operation Type:
-
Momentary or Latching
-
Button Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Electrical Life:
-
100000cycles
-
Function:
-
ON-OFF, OFF-(ON)
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54, IP54 IK09
-
Max. Current:
-
3A, 3A
-
Max. Voltage:
-
250V, 250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODOELEC
-
Model Number:
-
PBS-11A
-
Model:
-
PBS-11A
-
Diameter:
-
12mm
-
Operation Type:
-
Momentary or Latching
-
Button Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Electrical Life:
-
100000cycles
-
Function:
-
ON-OFF, OFF-(ON)
-
Certification:
-
CE
Product Description
Specification
|

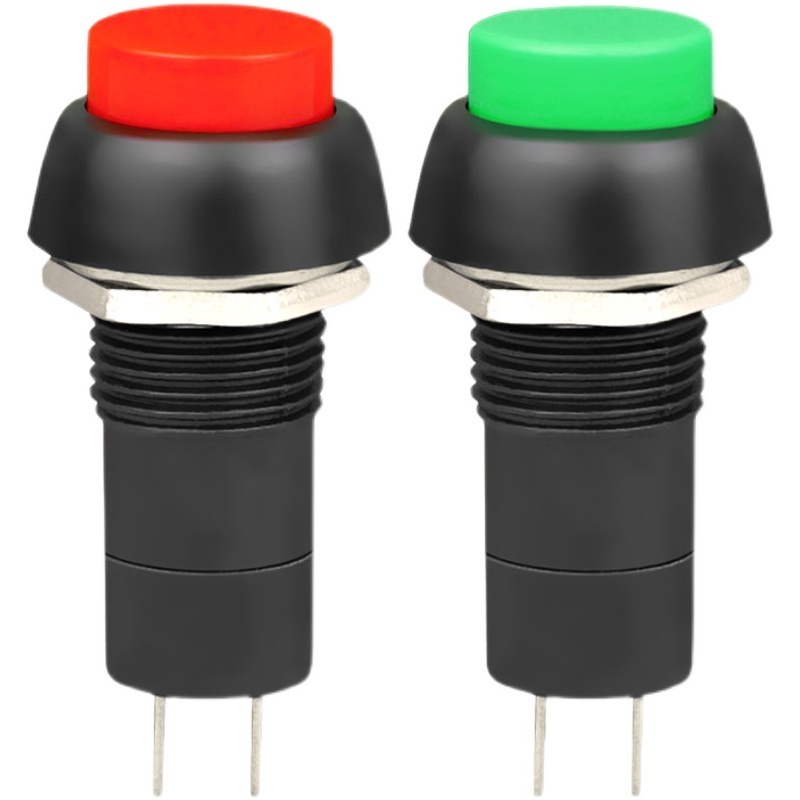

PBS-11A Round button switch Self-locking small button switch mounting hole 12MM
|
|
|
|
|||
|
Contact type
|
Slow moving single contact
|
Operation Schedule
|
Connected:1.8mm,Total:3.5mm
|
|||
|
Contact Resistance
|
≤50mΩ
|
Actuating Force
|
about 8N
|
|||
|
Insulation Resistance
|
≥1000mΩ
|
Mounting panel thickness
|
≤11mm or customised the others
|
|||
|
Dielectric Strength
|
1000VAC min
|
Nut torque
|
5~14N.m
|
|||
|
Ambient Temperature
|
-30℃~+80℃
|
Outshell/Press Key
|
Stainless Steel/copper plated/aluminum oxide
|
|||
|
Electrical Life
|
100000 cycles
|
Base material
|
PA66
|
|||
|
Mechanical Life
|
Latching-200,000 cycles
Momentary-800,000 cycles |
Transmissive cover
|
PC
|
|||
|
Protection Level
|
IK09
|
Pins Contact
|
Copper palted sliver
|
|||
|
Waterproof Level
|
IP54
|
Spring
|
Steel wire
|
|||
