Suitable for punching flat plates and angle irons. Round holes or long holes can be customized according to customer requirments.
- Product Details
- {{item.text}}
Quick Details
-
Year:
-
2022
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
900*600*1100(mm)
-
Motor Power (kW):
-
2.2kw
-
Weight (T):
-
0.55
-
Product name:
-
Ironworker Machine
-
Function:
-
Punching Shearing Bending
-
Keyword:
-
Mechanical Metal Punching Machine
-
Power:
-
Hydraulic Drive
Quick Details
-
Nominal Force (kN):
-
90
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
banglan
-
Year:
-
2022
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
900*600*1100(mm)
-
Motor Power (kW):
-
2.2kw
-
Weight (T):
-
0.55
-
Product name:
-
Ironworker Machine
-
Function:
-
Punching Shearing Bending
-
Keyword:
-
Mechanical Metal Punching Machine
-
Power:
-
Hydraulic Drive
Product Description

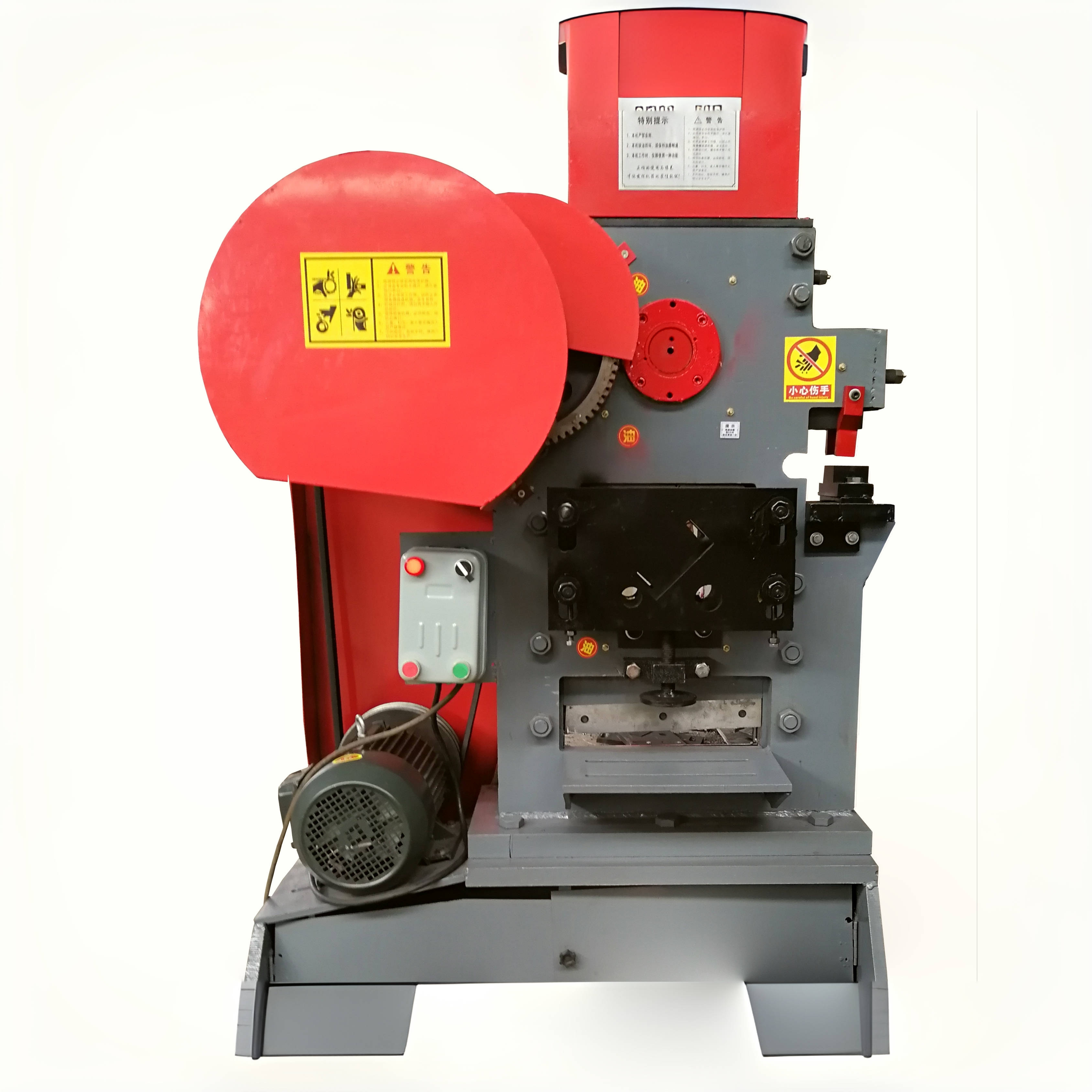

Ironworker Machine
Punching And Shearing Cutting Ironworker Machine
The punching and shearing machine is a common metal processing equipment, mainly used for cutting and punching small metal materials. Its principle is based on pressure punching technology, featuring advantages such as simple structure, easy operation, high efficiency, and precision.
Details Images
The structure of the small punching and shearing machine is mainly composed of the body, punching mechanism, shearing mechanism, power mechanism, etc. The punching mechanism uses pressure punches to cut metal materials into various shapes and sizes of holes. The shearing mechanism cuts metal materials into strips or blocks using two blades moving up and down. The power mechanism provides power, typically through electric or hydraulic drive.
Punching part
Angle steel mould
It is suitable for various angles such as channel steel, angle iron, flat iron, iron plate, etc.
Electric control box
Equipped with an electric switch, it is quicker, safer and more reliable to change the mold.
Specification
|
Advantages
|
simple structure, easy operation, and easy maintenance
|
|
Working speed
|
30time/min
|
|
Stroke length
|
27/30/36mm
|
|
Cutting power
|
360/500/900KN
|
|
Max cutting thickness
|
8/10mm
|
|
Max punching size
|
r22/25/31mm
|
|
Max angle iron cutting
|
75/100/125mm
|
|
Max channel steel cutting
|
100/120/160mm
|
|
Customize service
|
Offer
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
