Quick Details
-
Warranty:
-
3 years
-
Brand Name:
-
SHINE
-
Model Number:
-
SN-ME-SC-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1210*535*10mm
-
VMP/V::
-
18.0V
-
IMP/A::
-
5.6A
-

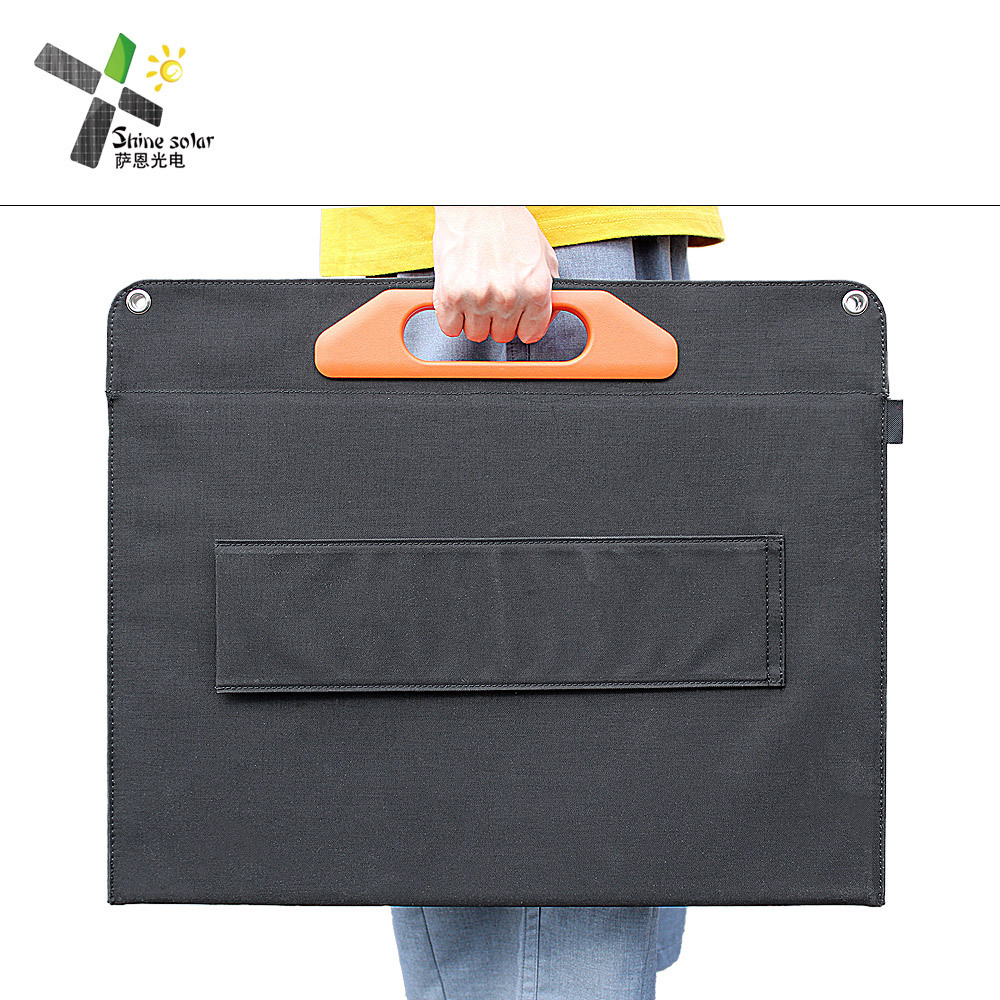

Folded Size::
-
605*535*25mm
-
expend size::
-
1210*535*10mm
-
Connectors::
-
fast charge USB/Type-c/DC
-
Surface:
-
Special ETFE surface
-
Weight::
-
4.1kg
-
Color::
-
Black or customized
-
Features::
-
Corrosion Resistant, Flexible, Portable
-
Application::
-
Boat RV Vehicle Home
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC
-
Panel Efficiency:
-
Customized
-
Warranty:
-
3 years
-
Brand Name:
-
SHINE
-
Model Number:
-
SN-ME-SC-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1210*535*10mm
-
VMP/V::
-
18.0V
-
IMP/A::
-
5.6A
-
Folded Size::
-
605*535*25mm
-
expend size::
-
1210*535*10mm
-
Connectors::
-
fast charge USB/Type-c/DC
-
Surface:
-
Special ETFE surface
-
Weight::
-
4.1kg
-
Color::
-
Black or customized
-
Features::
-
Corrosion Resistant, Flexible, Portable
-
Application::
-
Boat RV Vehicle Home
Product Paramenters
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
|
|
|
||||||
|
Model
|
SN- ME-SC75W
|
SN- ME-SC100W
|
SN- ME-SC150W
|
SN- ME-SC200W
|
SN- ME-SC300W
|
SN- ME-SC400W
|
||||||
|
Folding Number
|
2pcs
|
2pcs
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
||||||
|
Cell Efficiency
|
＞22％
|
＞22％
|
＞22％
|
＞22％
|
＞22％
|
＞22％
|
||||||
|
Max Power Voltage
|
20V
|
20V
|
20V
|
20V / 39V
|
20V / 39V
|
39V
|
||||||
|
Max Power Current
|
3.75A
|
5A
|
7.5A
|
10A / 5.13A
|
15A / 7.69A
|
10.26A
|
||||||
|
Open Circuit Voltage
|
24V
|
24V
|
24V
|
24V / 46.8V
|
24V / 46.8V
|
46.8V
|
||||||
|
Short Circuit Current
|
4.13A
|
5.5A
|
8.25A
|
11A / 5.64A
|
16.5A / 8.46A
|
11.29A
|
||||||
|
Fabric
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
900D Nylon
|
||||||
|
Number of Cells
|
12
|
18
|
24
|
36
|
48
|
72
|
||||||
|
Cell Dimension
|
166*166mm
|
166*166mm
|
166*166mm
|
166*166mm
|
166*166mm
|
166*166mm
|
||||||
|
Weight
|
2.2kg
|
2.9kg
|
3.7kg
|
5.15kg
|
6.35kg
|
9.0kg
|
||||||
|
Expand Size
|
915*550*10mm
|
1265*560*10mm
|
1690*550*10mm
|
2370*560*10mm
|
2355*720*10mm
|
3030*800*10mm
|
||||||
|
Folded Size
|
550*450*25mm
|
560*630*25 mm
|
550*450*35 mm
|
560*630*35mm
|
720*630*35 mm
|
800*795*35mm
|
||||||
|
Max Power Tolerance
|
+（0~5W）
|
|
|
|
|
|
||||||
|
Color
|
Black
|
|
|
|
|
|
||||||
|
Cable
|
1-3.0Meter with Andersson connectors
|
|
|
|
|
|
||||||
Note:
All electrical parameters are rated at standard test conditions
(irradiance of 1000W/㎡,AM 1.5G,cell tempertaure 77F/25℃）
