Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ODM/OEM
-
Dimension(L*W*H):
-
2100x2100x2300mm
-
Weight:
-
700 KG
-
Product name:
-
Robot Palletizer
-
Function:
-
Automatic Carton Packaging Line
-
Keywords:
-
Automatic Pallet Stacking Robot
-
Suitable for:
-
Packing Bottle Cans Jars
-
Applicable Product:
-
Bags/carton/bottle
-
Packing speed:
-
Customer's Requirements
-
Advantage:
-
High Efficency
-
Application Fields:
-
Daily Industry
-
Material:
-
Stainless Steel 304/316L
-
Palletizing parameters:
-
Automatic Programming
Quick Details
-
Application:
-
Food, Beverage, Medical, Machinery & Hardware, APPAREL, Tobacco
-
Packaging Material:
-
Paper, Metal, Wood
-
Voltage:
-
220v/380v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ODM/OEM
-
Dimension(L*W*H):
-
2100x2100x2300mm
-
Weight:
-
700 KG
-
Product name:
-
Robot Palletizer
-
Function:
-
Automatic Carton Packaging Line
-
Keywords:
-
Automatic Pallet Stacking Robot
-
Suitable for:
-
Packing Bottle Cans Jars
-
Applicable Product:
-
Bags/carton/bottle
-
Packing speed:
-
Customer's Requirements
-
Advantage:
-
High Efficency
-
Application Fields:
-
Daily Industry
-
Material:
-
Stainless Steel 304/316L
-
Palletizing parameters:
-
Automatic Programming
·

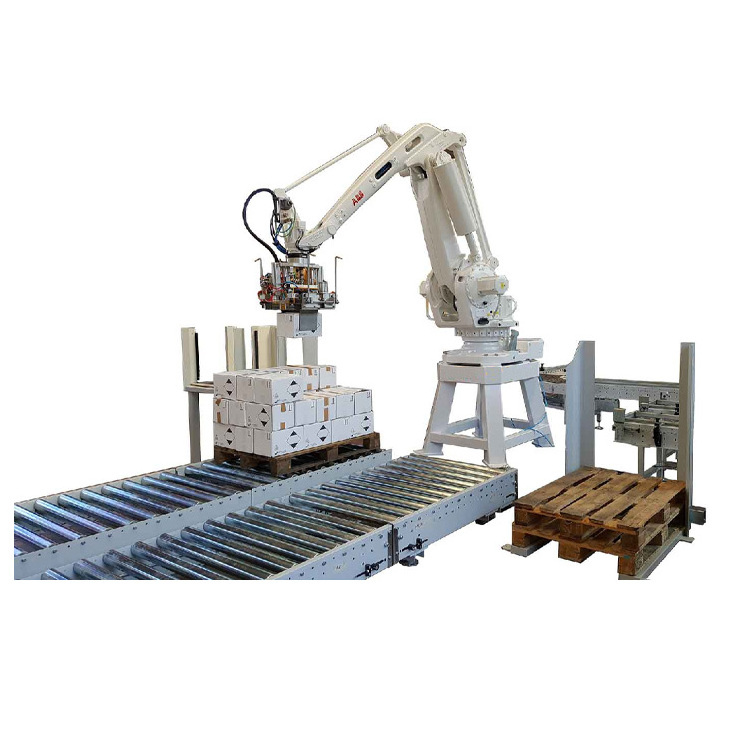

The industrial robot is used to realize the automatic stacking of objects, which is stable and reliable without manual intervention;
·
It can be used to stack bags, boxes, barrels, baskets, plates and other materials invarious forms;
·
It can be equipped with AGV or automatic warehousing transportation system to realize the full automation of the stacking, warehousing and outbound of customer products;
·
Support customization according to customer production site conditions.
|
Product name
|
Robot palletizing system
|
|
Type of packing
|
Secondary packaging
|
|
Overall equipment material
|
Stainless steel 304/316, carbon steel
|
|
Function
|
Cartons, bags, barrels palletizing, pallet conveying
|
|
Arm span
|
3150mm
|
|
Repeated positioning accuracy
|
±0.4mm
|
|
Weight
|
About 1050 kg
|
|
Installation mode
|
Ground
|
|
Power supply
|
3x380V+10% 50/60Hz
|
|
Power
|
8kw
|
|
Speed capacity
|
8 cycles per min/ Adjust according to products
|
