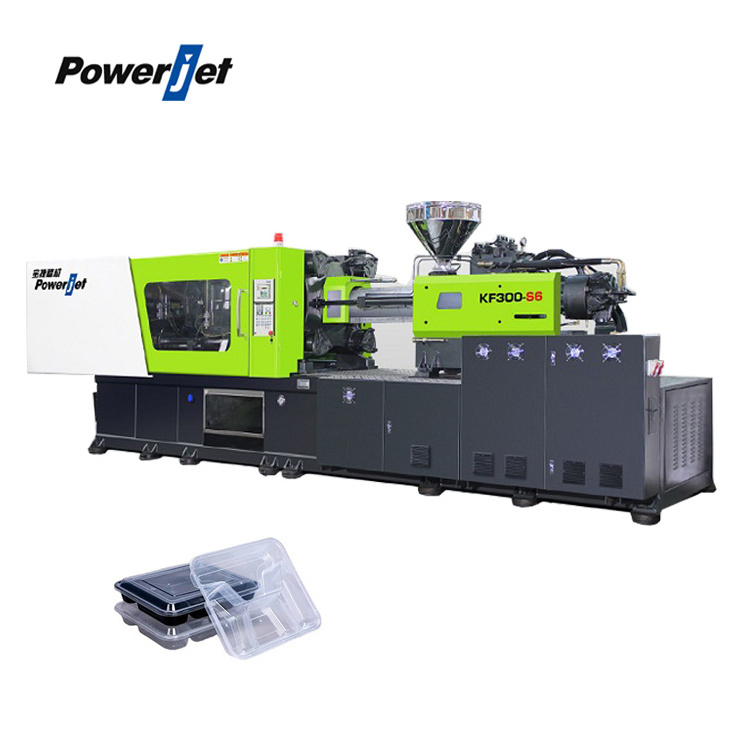

Powerjet Food Container Box Plastic Injection Molding Machine KF300 Hot Sales

Powerjet Food Container Box Plastic Injection Molding Machine KF300 Hot Sales

FOB Reference Price: Get Latest Price

≥1 Sets

US $58000

≥5 Sets

US $49000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ejector Stroke(mm):: 145 mm

Ejector Force(kN):: 77 kN

Theoretical Shot Volume(cm³):: 425 cm³

Injection Rate (g/s):: 503 g/s

Injection Weight (g):: 379 g

Screw diameter (mm):: 52 mm

Screw L/D Ratio:: 22

Weight (KG):: 10500 kg

Place of Origin:: Guangdong, China

Open Stroke(mm):: 550 mm

Model Number:: KF300-S6

Brand Name:: Powerjet

Power (kW):: 21 kW

BRAND:: Powerjet

Model:: KF300-S8

Product name:: Plastic Injection Moulding Machine

Keyword:: Energy Saving

Used for:: plastic commodity making injection molding machine

Function:: Plastic Injection Molding Machinery

Machiner Dimensions(m):: 6.7*1.9*2.2

Application:: thin-wall products

Machine weight:: 10.5T

Quick Details

Distance between Tie Bars(Width)(mm):: 900mm

Distance between Tie Bars(Height)(mm):: 950mm

Mold Height(mm):: 250 - 600 mm

Ejector Stroke(mm):: 145 mm

Ejector Force(kN):: 77 kN

Theoretical Shot Volume(cm³):: 425 cm³

Injection Rate (g/s):: 503 g/s

Injection Weight (g):: 379 g

Screw diameter (mm):: 52 mm

Screw L/D Ratio:: 22

Weight (KG):: 10500 kg

Place of Origin:: Guangdong, China

Open Stroke(mm):: 550 mm

Model Number:: KF300-S6

Brand Name:: Powerjet

Power (kW):: 21 kW

BRAND:: Powerjet

Model:: KF300-S8

Product name:: Plastic Injection Moulding Machine

Keyword:: Energy Saving

Used for:: plastic commodity making injection molding machine

Function:: Plastic Injection Molding Machinery

Machiner Dimensions(m):: 6.7*1.9*2.2

Application:: thin-wall products

Machine weight:: 10.5T

Products Description

Brand new 3-platen clamping design,which will optimize the stress distribution and has higher rigidity and more stable performance, meeting the demand of rapid me chanical movement.

FEATURES:
1:Energy-Saving 30%~50%
Servo motor with energy-saving controlled hydraulic systems can save electricity up to 30%~50%.

2:Low Temperature Injection
Low-Temperature Injection Makes More Energy Saving And Keeping Products With High Tenacity And Toughness By Our Innovative Plasticizing System.

3:Low Pressure Injection
Low-Pressure Injection To Gain Better Mechanical Protection And Longer Mould Service Life. Also Makes Molding Products With Low Stress And Deformation.

4:Fast Response Speed
Optimized Control System Response Speed Let Our Shooting Rate Reaching The Best Short Time Within 0.3 Seconds.

Production Instance

Machine model: KF460-S8

Product: 1000ml round bowl

Cavity: 6

Weight: 15.8g

Material: PP

Production cycle time: 5.5s (Include robot)

Machine model: KF380-S8

Product: 1000ml rectangular bowl

Cavity: 4
Weight: 16.5g
Material: PP
Production cycle time: 5.5s (Include robot)

KF Series: Disposable fast food box production system

To provide a full set of production system for fast food box, with shorter production cycle， higher stability, and more economy.

To provide options from the work- shop planning to mold selection, and from product planning to ma- chine selection. To offer complete set of machine and molds with 2,4, or even 8 cavities.

Product Paramenters

DESCRIPTION			UNIT	KF300-S6
CLAMPING UNIT	Clamping force	KN	3000
		Opening stroke	mm	550
		Max.datlight	mm	1150
		Platen size	mm	950*900
		Space between bars	mm	620*570
		Max.mold height	mm	600
		Min.mold height	mm	250
		Ejector stroke	mm	145
		Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	52
		Screw L/D Ratio	L/D	22
		Injection Pressure	MPa	188
		Shot volume	cm3	425
		Screw stroke	mm	200
		Screw speed	rpm	300
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	40+40
		Heater power	KW	21
