Quick Details
-
Output Speed:
-
0-1400
-
Warranty:
-
1 years
-
Applicable Industries:
-
Mechanics
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
cheng chang
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
95-150,
-
Input Speed:
-
4000-8000
-
Output Speed:
-
0-1400
-
Warranty:
-
1 years
-
Applicable Industries:
-
Mechanics
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
cheng chang

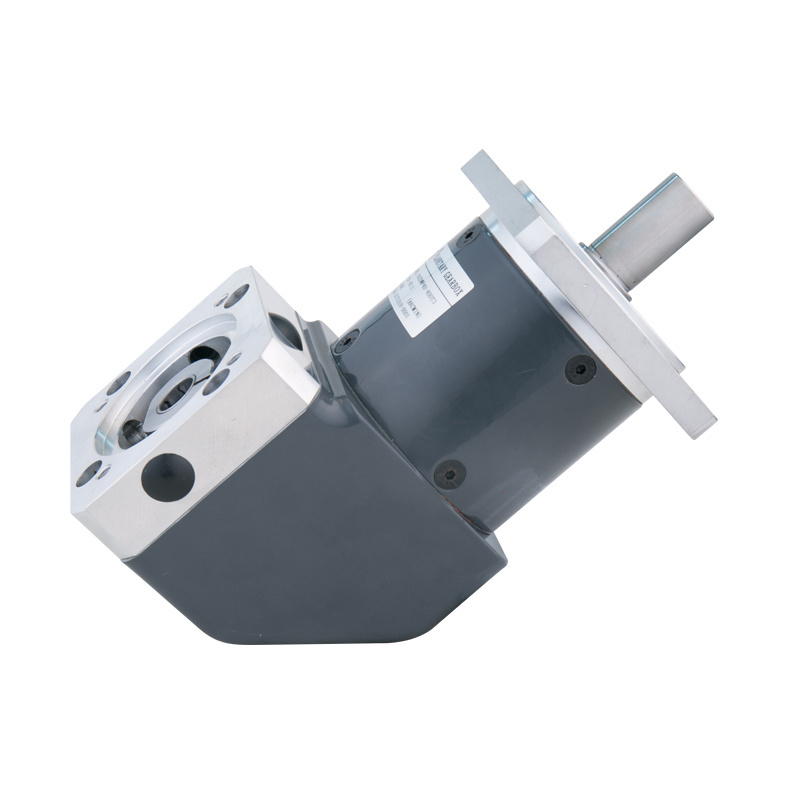

PVF90 series detailed parameters of planetary gearbox:
Reduction ratio : 3-100
Rated output torque :100 -160NM
Maximum Output Torque : 1.5 times rated torque
Rated input speed : 5000RPM
Maximum input speed : 10000RPM
Backspace : ≤ 5-8 Arcmin
Average service life : 20000h
Full-load transmission efficiency : ≥ 97%
Use temperature range : -10~+90 ℃(Customizable lower or higher temperatures)
Lubricating grease : Total synthetic grease
Noise value : ≤58 dB
Protection level : IP65
Weight :5 KG
PVF90 Dimension Diagram
PVF90 1 STAGE(ratio:3-10)
P VF9 0 2 STAGE(ratio:15-100)
