Quick Details
-
Voltage:
-
380v, 50hz, 3phase or customized
-
Dimension(L*W*H):
-
78*33*77mm
-
Weight:
-
75 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
poultry feed granulator animal feed pellet making machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
working Principle:
-
Roll forming
-
Raw material:
-
Corns Wheat Bran Hay Grass Straw
-
Final product:
-
Pellet
-
Pellet size:
-
2mm-8mm
-
Can make feed for:
-
Cattlen Pig Chicken Cattle Rabbit
-
Material:
-
Durable Carbon Steel
-
Motor:
-
Chinese Brand
Quick Details
-
Max. Capacity:
-
800 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Voltage:
-
380v, 50hz, 3phase or customized
-
Dimension(L*W*H):
-
78*33*77mm
-
Weight:
-
75 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
poultry feed granulator animal feed pellet making machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
working Principle:
-
Roll forming
-
Raw material:
-
Corns Wheat Bran Hay Grass Straw
-
Final product:
-
Pellet
-
Pellet size:
-
2mm-8mm
-
Can make feed for:
-
Cattlen Pig Chicken Cattle Rabbit
-
Material:
-
Durable Carbon Steel
-
Motor:
-
Chinese Brand

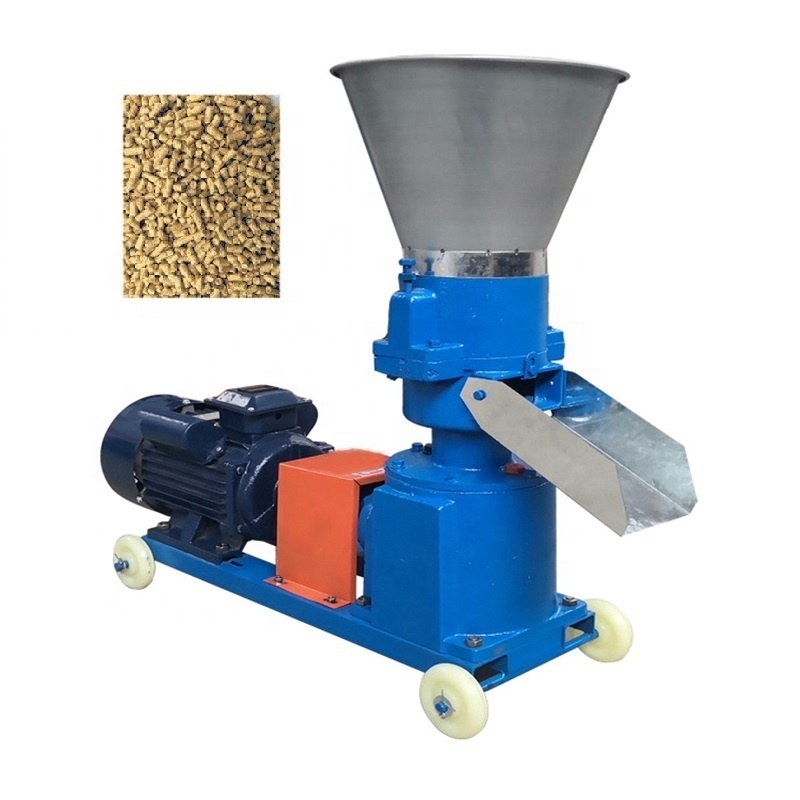

Mini chicken fish pig food making machine poultry feed granulator animal feed pellet making machine
The machine consists of motor,drive shaft gear,flat die,pressure roller,feed hopper,cutter,out the hopper several parts.
The feed pellet machine features low noise,low power consumption,high efficiency,and it is easy to operate.
The product is suitable for medium and small farming,feed,organic fertilizer,chemical units or enterprises,less investment,quick,no risk,is the ideal particle processing equipment.This kind of pellet machine is mainly used for making animal feed pellets, such as feed for chicken, goose, duck, pig, cattle, goat, fish, etc. It can press all kinds of crops straws and sawdust into pellets for animal feeding or burning fuel. It's an ideal pellet press for family and commercial with easy operaton and maintenance.
Features of Pellet Machine:
Feed pellet machine is manufactured with a special process, the machine processing
of grain and smooth surface, moderate hardness particles specifications are F ree
to replace the adjustment. The feed particle internal curing high degree of both starch
gelatinization, protein coagulation degeneration, improve nutritional quality,
easy digestion and absorption, but also kill the general pathogenic bacteria and parasites.
Through the mold compression ratio adjustment, you can reduce the temperature of the granulation to produce animal feed, organic fertilizer, fertilizer, bio-fertilizer and other low temperature materials, granulation.
The granulation natural cooled moisture is about 13%.
If you want to make feed for chick and chicken, you can choose 2.5mm to 6mm.
(generally 2.5mm, 3mm, 4mm, 6mm)
Product parameter:
|
Model |
Yield(kg/h) |
Voltage(v) |
Power(kw) |
Weight(kg) |
Water addition(kg) |
Overall size(cm) |
|
|
125 |
80-100 |
220/380 |
4kw/3kw |
75 |
0-2 |
75*32*70 |
|
|
150 |
90-150 |
220/380 |
4kw/3kw |
85 |
0-2 |
78 * 33 *7 7 |
|
|
210 |
200-300 |
380 |
7.5 |
1 80 |
0-2 |
100 * 43 *9 5 |
|
|
260 |
400-500 |
380 |
15 |
318 |
0-3 |
1 26 *4 6 *1 15 |
|
|
300 |
500-700 |
380 |
22 |
530 |
0-3 |
13 8 *5 5 *12 5 |
|
|
400 |
900-1200 |
380 |
30 |
770 |
4-6 |
1 6 0* 80 *1 7 0 |
|
|
Remarks |
The above parameters are for reference only, and there may be slight differences in the actual situation. Please refer to the actual situation |
||||||
Feed Pellet making simple Process:
Feed Grinder →Feed Mixer→Conveyor →Feed Pellet Machine
Packing: Nude or plywood case or as request
Delivery Date: 10-20 days after confirm the down payment.
Shipping Method: By sea
Shipping Port: Qingdao, China or any port in China
♦Pre-sales:
1 Perfect 7*24hours inquiry and professional consulting service
2.Visit our factory anytime
♦Sale:
1. Update the production schedule in time
2. Quality supervision
3. Product acceptance
4. Shipping on time
♦After-sales:
1. Guarantee:1 year ,during this period we will offer free spare parts if they are broken.
2. Training how to install and use machine
3. Engineers available to service overseas
4. Skill support during the whole using life
